Varian PTS06003UNIV Dry Scroll Vacuum Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Varian
- MPN
- TRISCROLL 600
- SKU
- 198829
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

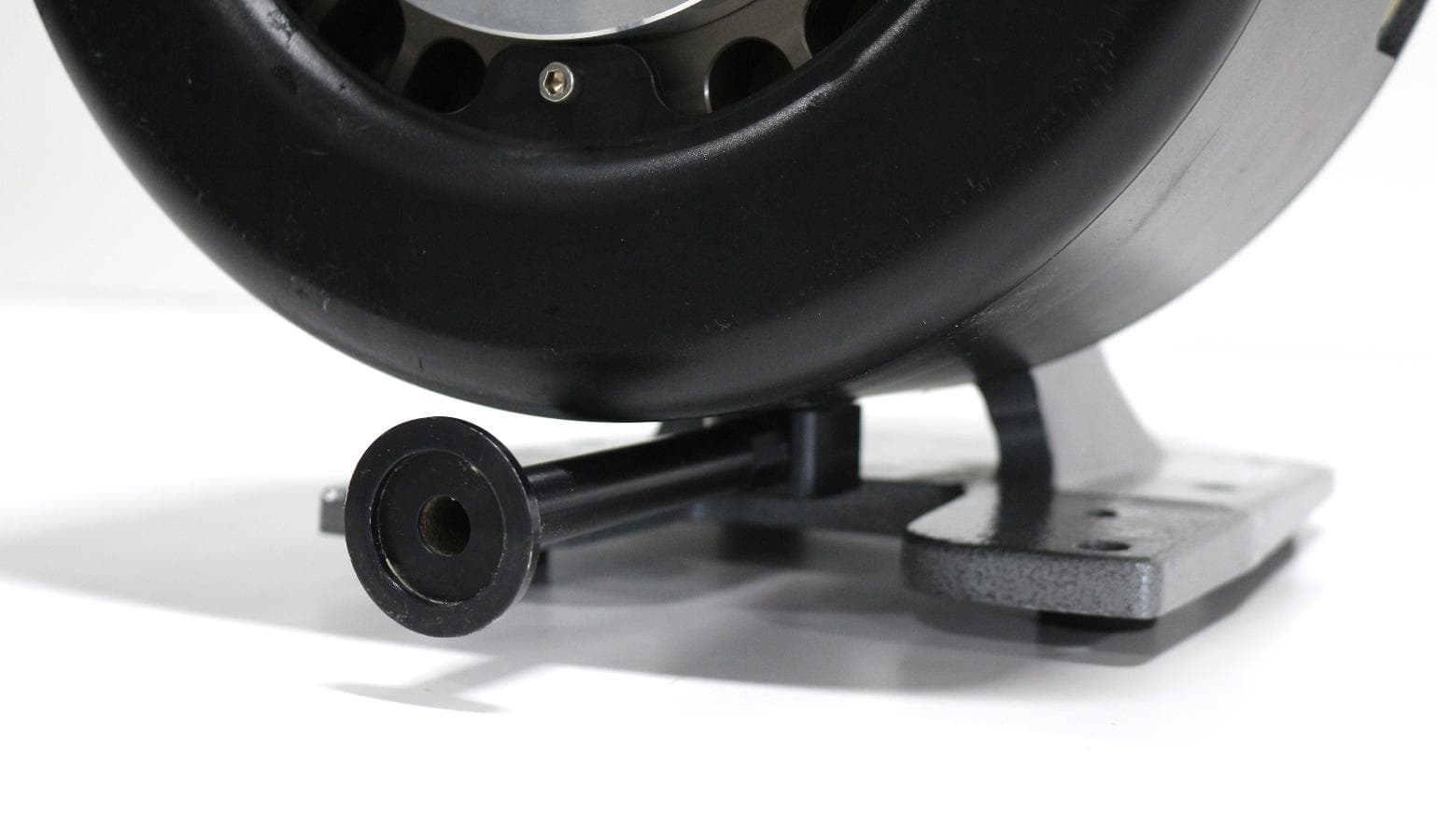

NW25 Exhaust Extension
Technical specifications
| Dry Pump | YES |
| Pumping Speed | 17.7 CFM (500.2 l/m) |
| Ultimate Pressure | 0.70E-2(En) torr (0.93E-2 mbar) |

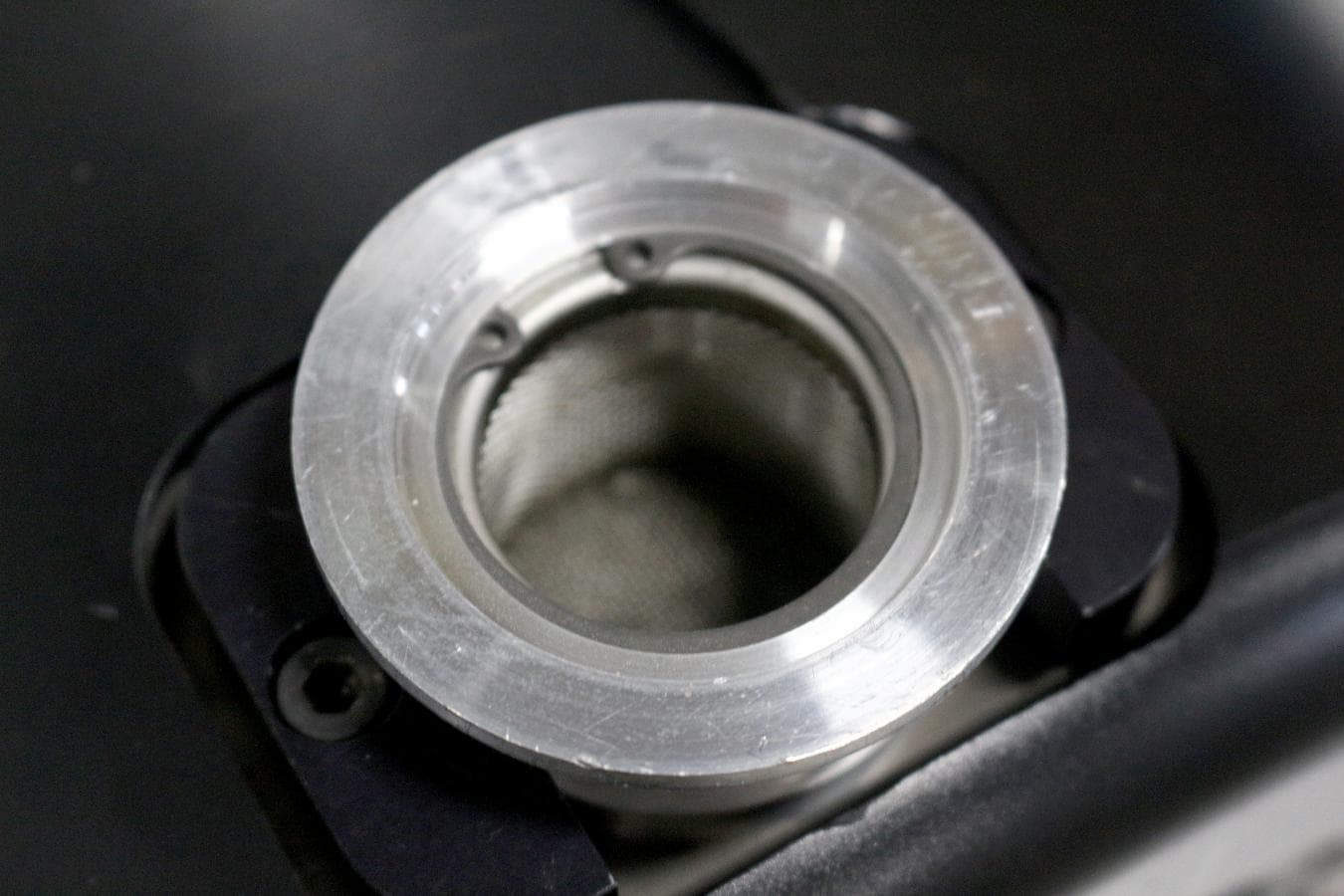

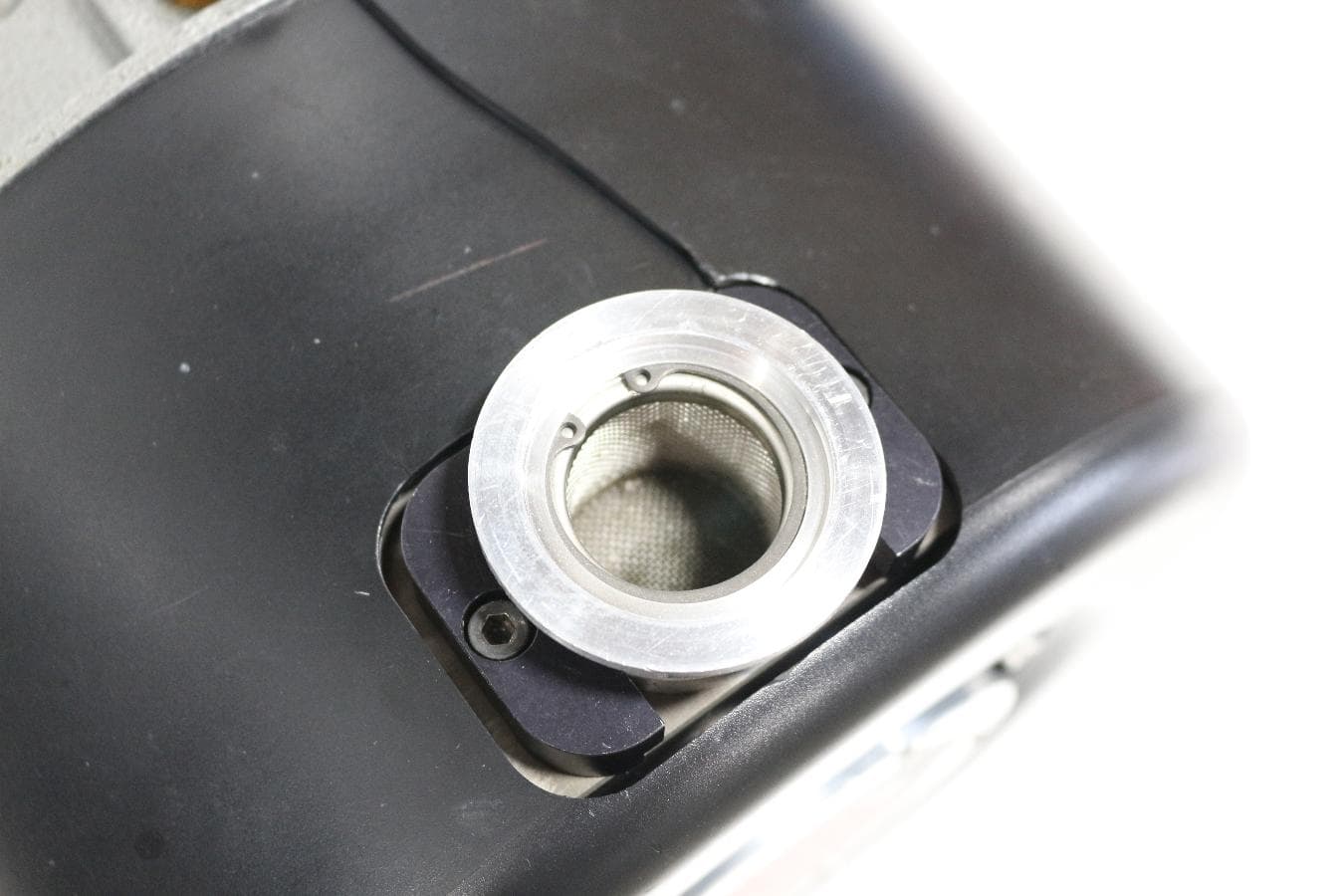

| Inlet Flange | KF 40.0 mm (1.575 in) |
| Exhaust Flange | NPT 9.5 mm (0.374 in) |
| Duty--Service | Normal |
| Gas Ballast | Yes |
| Motor Horsepower | 1 HP |
| Rotational Speed | 1,725 RPM |
| Power Requirements | 200-230 V 50/60 Hz 3 Phase |
| CE Marked | YES |
| Weight | 70 lb (32 kg) |
Exterior Dimensions
| Width | 18.570 in (47.2 cm) |
| Depth | 11.800 in (30.0 cm) |
| Height | 13.980 in (35.5 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
