ACCEL CORP. SEMI-AUTOMATIC CENTRIFUGAL CLEANING SYSTEM

Other Wet Process Equipment

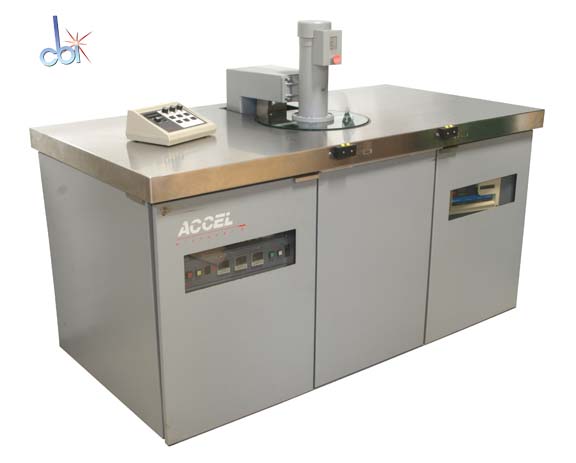

Semi-Automatic Centrifugal Cleaning System

Used for cleaning electronic assemblies

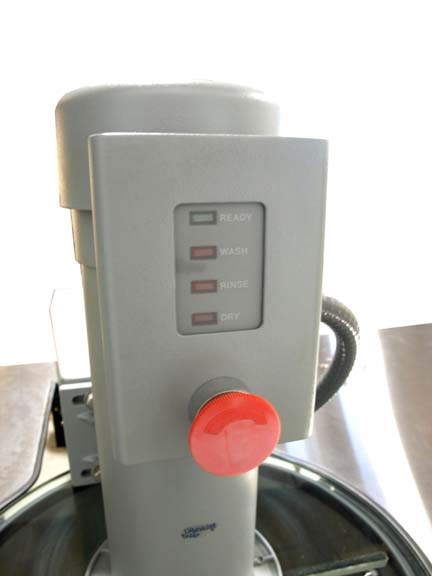

Three step process.: Washing, rinsing, dryingCircuit assembliesPrecision partsMedical devicesBumper wafersFlip chips , MCMs, BGAs, and hybrid circuits
No drain or waste water treatment required
Automatic recovery of solvents from waste water

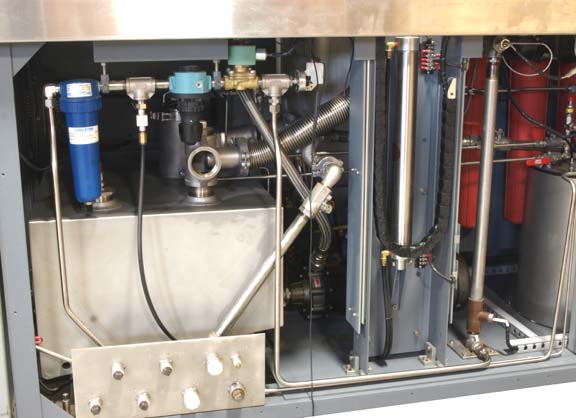

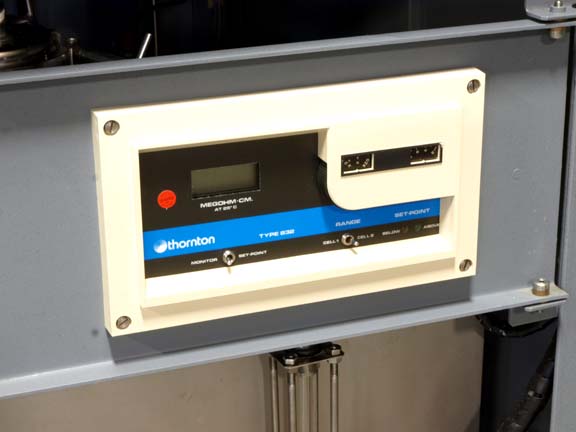

Four stage water purification process

1 unit @ Best Price

Make: Accel

Model: MICROCEL II

Item ID: 1798

Manufacturer	Accel
Model	MICROCEL II
Description	Semi-Automatic Centrifugal Cleaning System

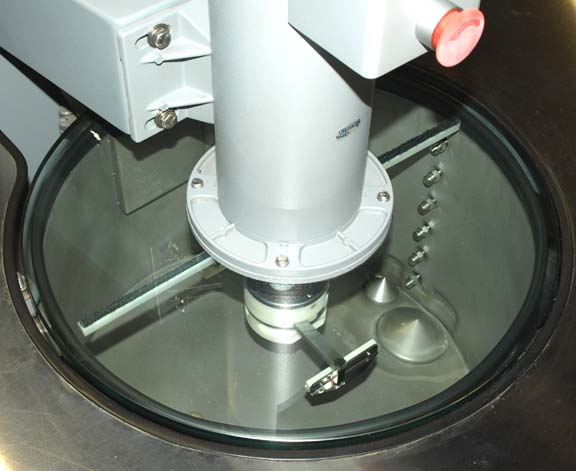

Other Information	Cleaning: 0.0 - 2.0 gr NaCl/in2, resistivity of Solvent extract testing per DOD-STD-2000-1 Drying: 100%, no moisture remaining on product Throughput: up to 200 ft2/hour, depending on product Speed range 0 to 1000 RPM Process time: Wash--0.5 to 2.0 minutes, typical Rinse–1.0 to 2.0 minutes, typical Dry–2.0 to 3.0 minutes, typical Chemistries: Aqueous, Bio T200A Axarel, Ionox HC Armakleen, Ionox FCR Bioact, EC-7R IPA Bioact EC-15, Zestron Microcel II same machine, chamber has 16" Dia. will handle a 13" board More information available
Power Requirements	220 V 70.0 A 60 Hz 1 Phase
Year of Manufacture	1995
Exterior Dimensions
Width	75.000 in (190.5 cm)
Depth	38.000 in (96.5 cm)
Height	41.000 in (104.1 cm)
Weight	1,250 lb (567 kg)
