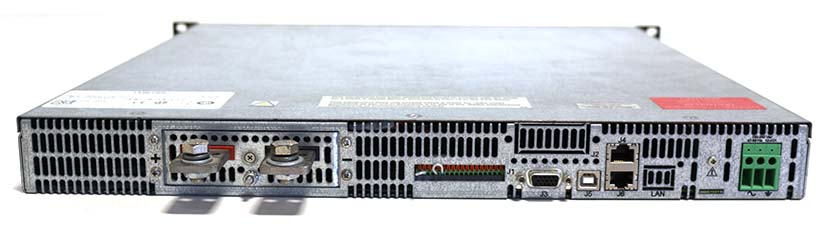

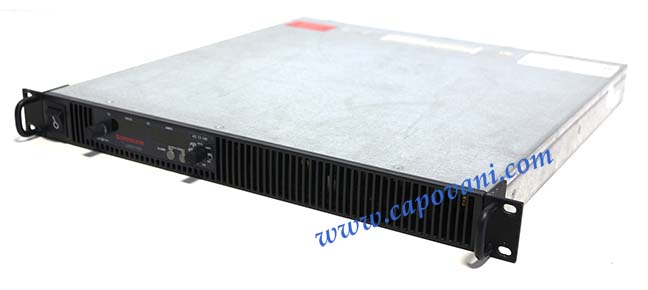

SORENSEN AMETEK PROGRAMMABLE DC POWER SUPPLY 12V, 140A
DC Power Supplies
Programmable DC Power Supply
Sorensen is an Ametek Programmable Power brand.
1 unit @ $1,500.00
Make: Sorensen
Model: XG 12-140
Item ID: 185536
| Manufacturer | Sorensen |
| Model | XG 12-140 |
| Maximum Output Voltage | 12.00 Volts |
| Maximum Output Current | 140.00 Amps |
| Maximum Output Power | 1.70 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Ripple | 50mV |
| Panel Meters | Digital |
| Control Type | Programmable |
| External Cooling | Forced Air Cooled |
| Other Information | Input interfaces (see details in the manual page 1-10): Analog isolated (MIA option installed) Sorensen XG 12-140 DC Power Supply Manual
|
| Power Requirements | 100-240 V 23.0 A 12.0 A(2) 47-63 Hz 1 Phase |
| CE Marked | YES |
| Exterior Dimensions | |
| Width | 16.800 in (42.7 cm) |
| Depth | 19.000 in (48.3 cm) |
| Height | 1.700 in (4.3 cm) |
| Weight | 22 lb (10 kg) |
