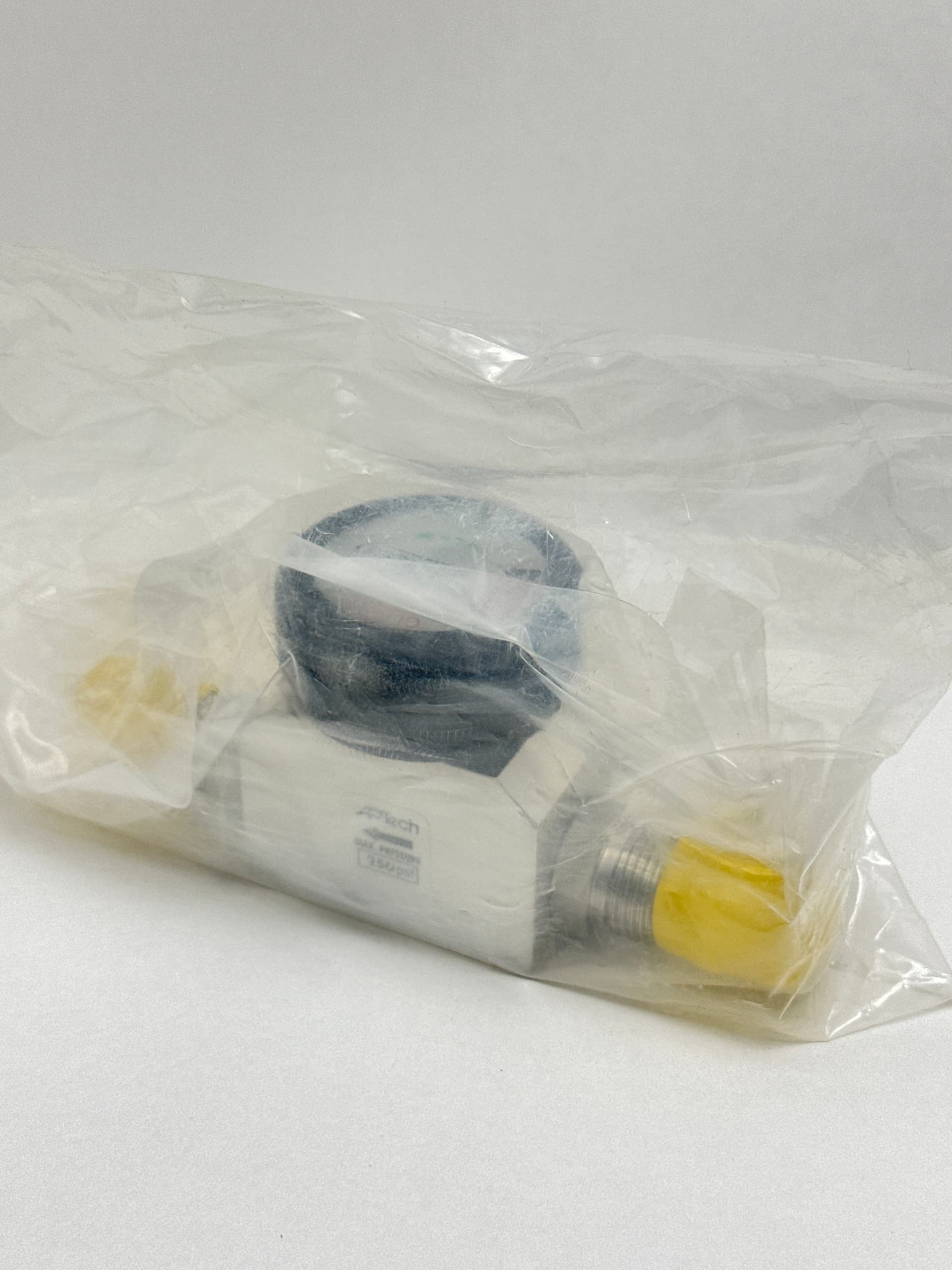

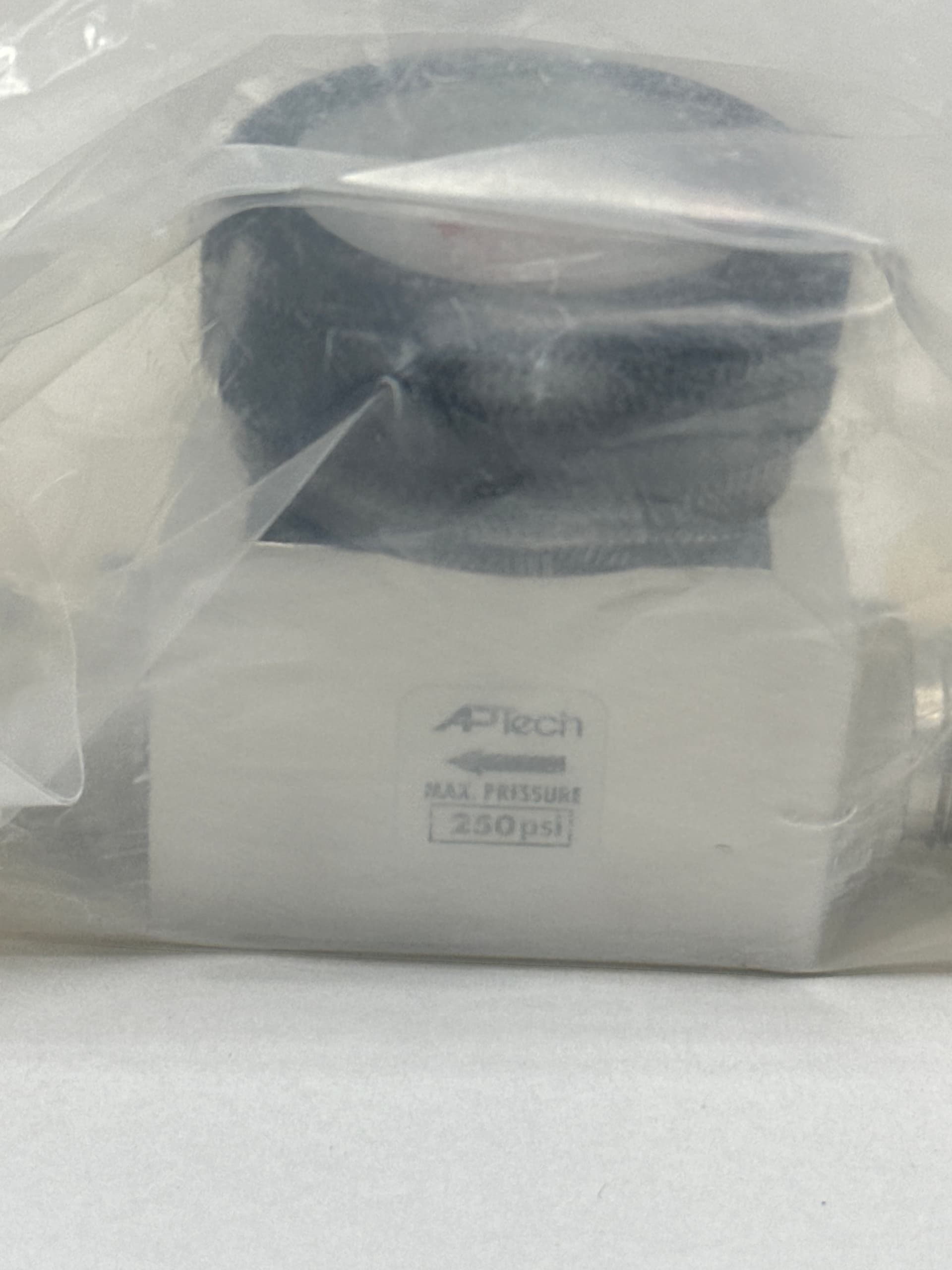

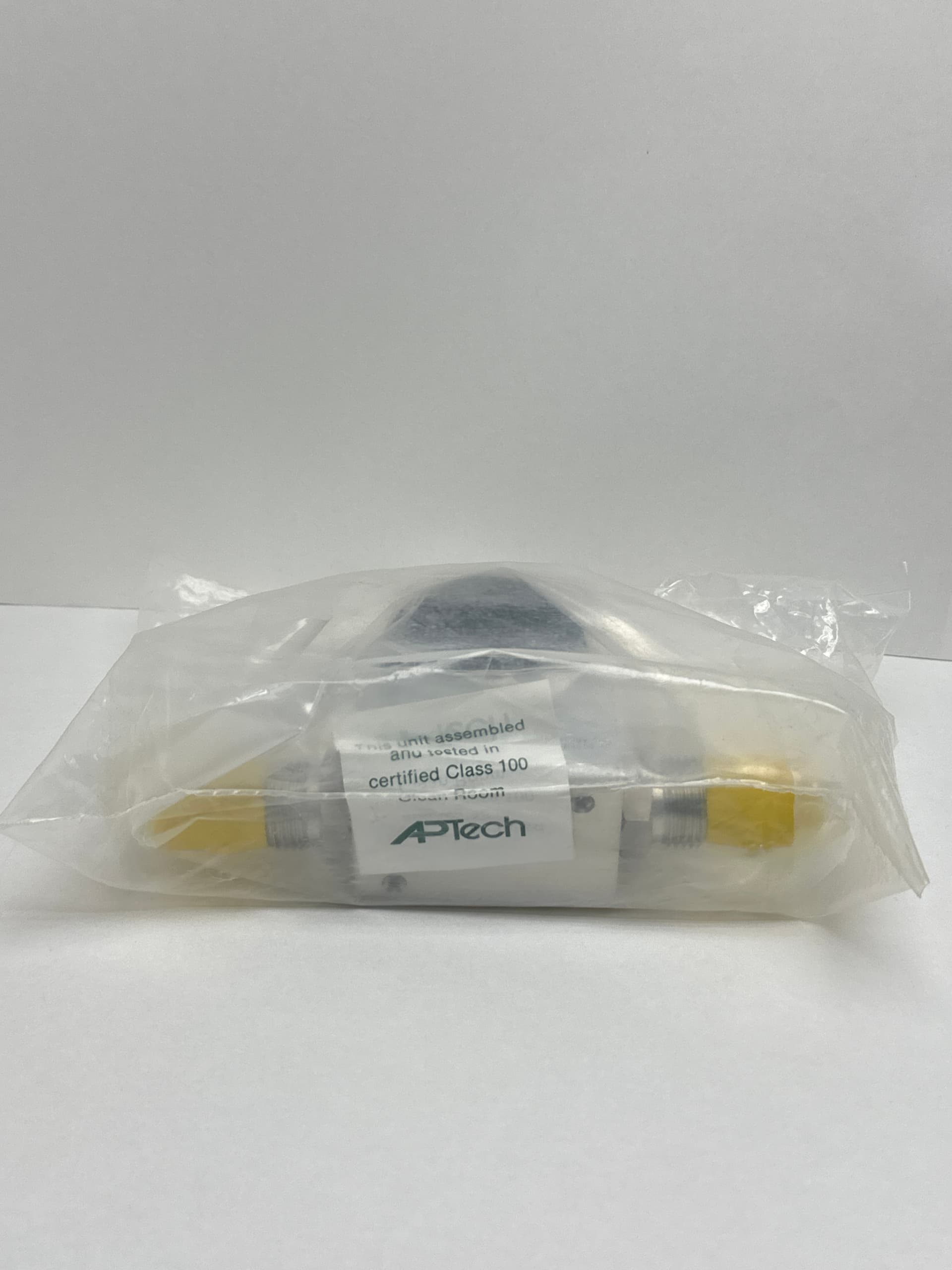

AP Tech AP3800SM MV8 MV8 00 Diaphragm Valve, 1/2 in M/M, 250 psig
$1,200.0030 day return
- Condition
- Brand new See details
- Brand
- AP Tech
- MPN
- AP3800SM MV8 MV8 00
- SKU
- CID1426
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return as listed. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
UHP manually operated diaphragm valve, 1/2 in male face-seal inlet/outlet, vacuum to 250 psig, Cv 2.8. 316L SS secondary-remelt body, 10 µin Ra surface finish, PCTFE seat, no purge ports. Order number: 750-0032-01. AP Tech was acquired by SMC in 2007.
Technical specifications
| ORDER NUMBER | 750-0032-01 |
| Series | AP3800 & 3900 Series |
| Type | Manually operated type Diaphragm Valve for Ultra High Purity (For high flow) |

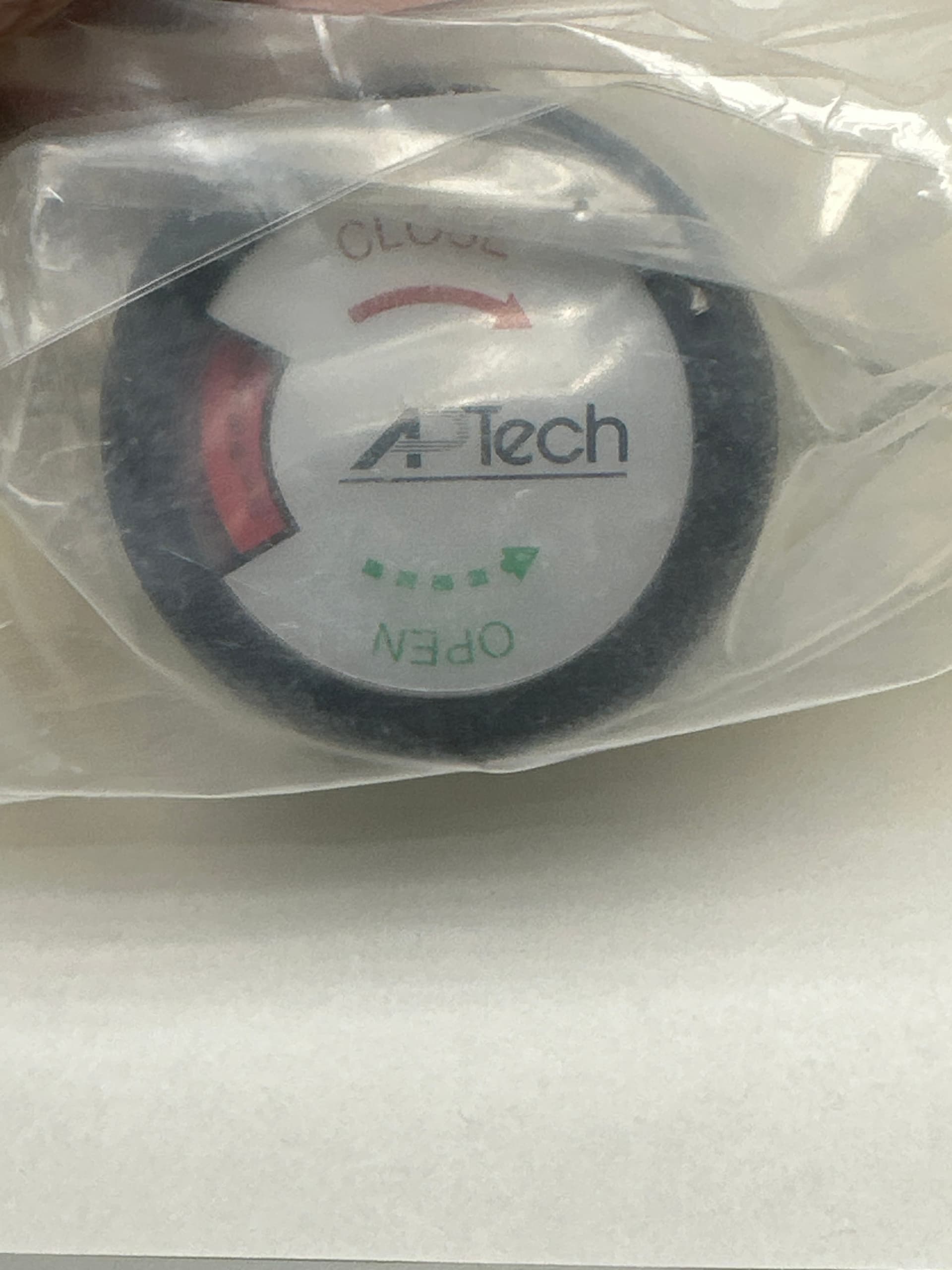

| Knob | Round knob with open/close indication window |
| Material | S: 316L SS secondary remelt |
| Surface finish | M: 10 µin. (0.25 µm) Ra max |
| Connections (Inlet) | MV8: 1/2 inch face seal (Male) |
| Connections (Outlet) | MV8: 1/2 inch face seal (Male) |
| Seat material | No code: PCTFE (Standard) |
| Purge port | 00: Inlet none, outlet none |
| Operating pressure | Vacuum to 250 psig (1.7 MPa) |
| Proof pressure | 500 psig (3.4 MPa) |
| Burst pressure | 1000 psig (6.9 MPa) |
| Ambient and operating temperature | -40 to 160°F (-40 to 71°C) (No freezing) |
| Cv | 2.8 |
| Diaphragm | 316L SS |
| Installation | Bottom mount |
| Internal volume | 0.76 in3 (12.52 cm3) |
Condition & testing notes
Never used inventory in brand new condition. The item is from old surplus stock.
