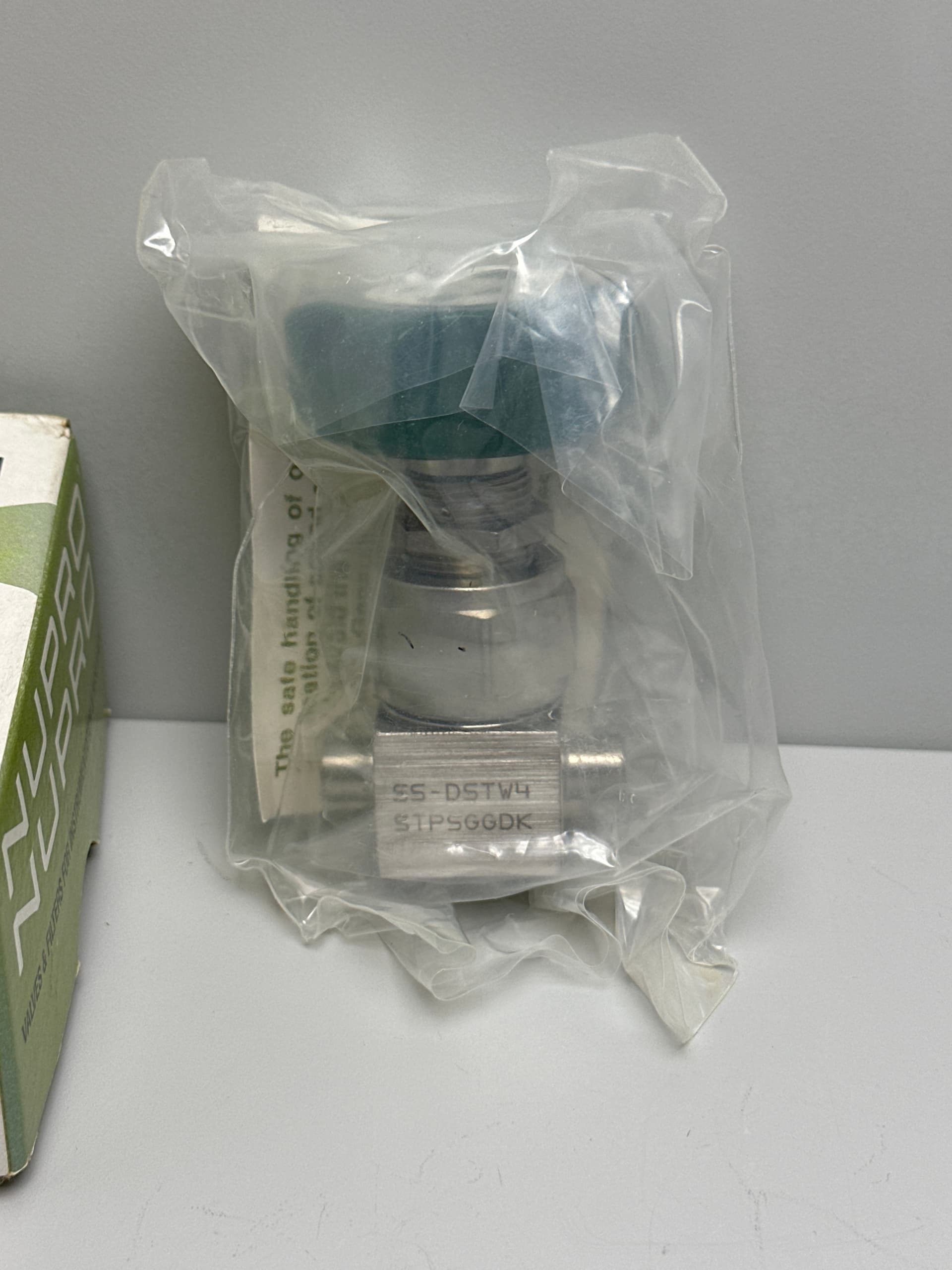

Nupro SS-DSTW4 STPSGGDK Diaphragm Sealed Valve, 316L SS, Weld
$250.0030 day return
- Condition
- Brand new See details
- Brand
- Nupro
- MPN
- SS-DSTW4 STPSGGDK
- SKU
- CID1420
- Availability
- 26 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

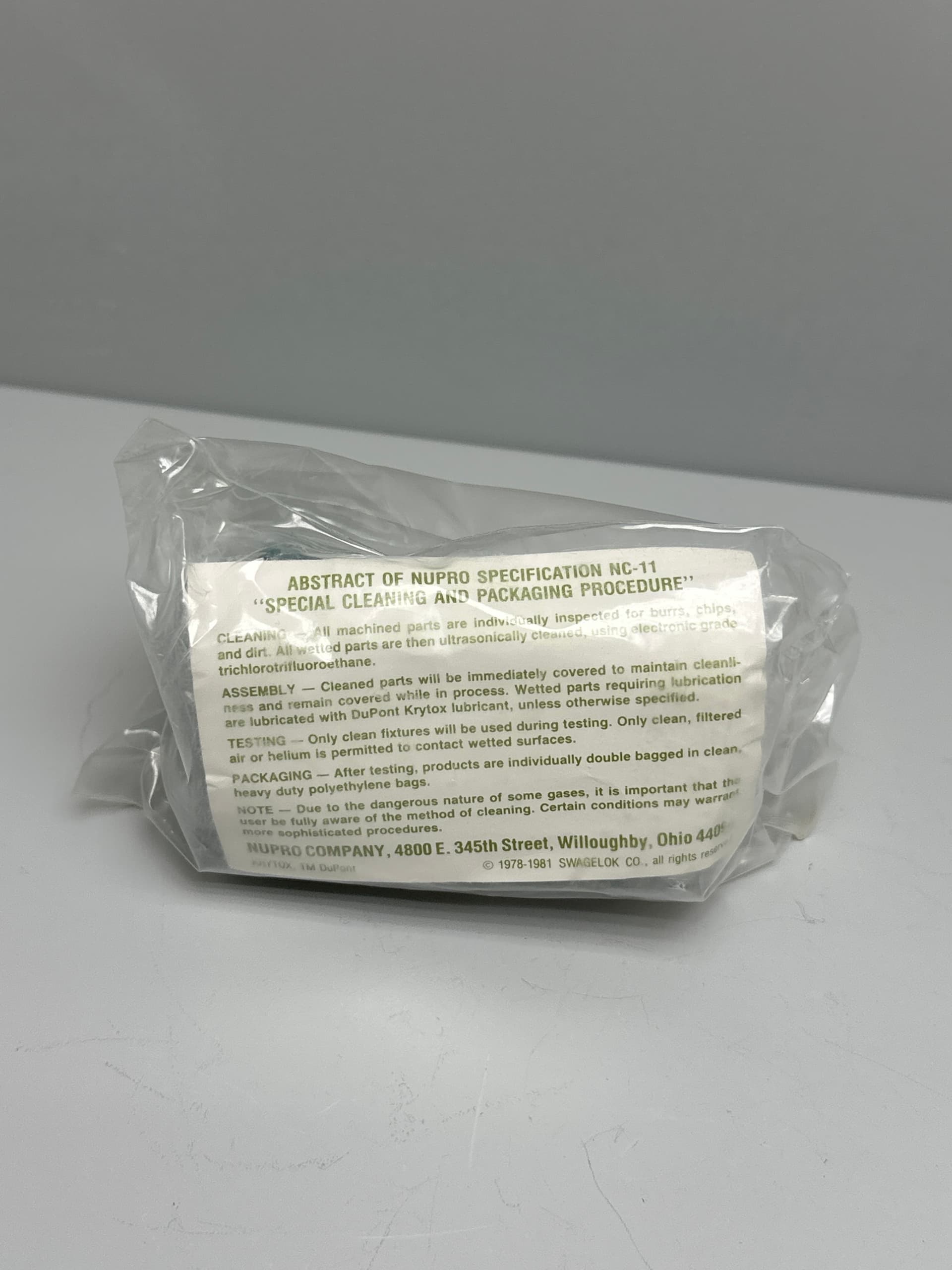

316L stainless, Cv 0.3, 1/4 in. TSW x 3/8 in. TBW, -100 to 250 F. Cleaned to NC-11; helium leak tested. Box label code NC45.
Technical specifications
| CLEANED TO | NC-11 |
| HELIUM LEAK TESTED | Yes |
| NC45 | NC45 |

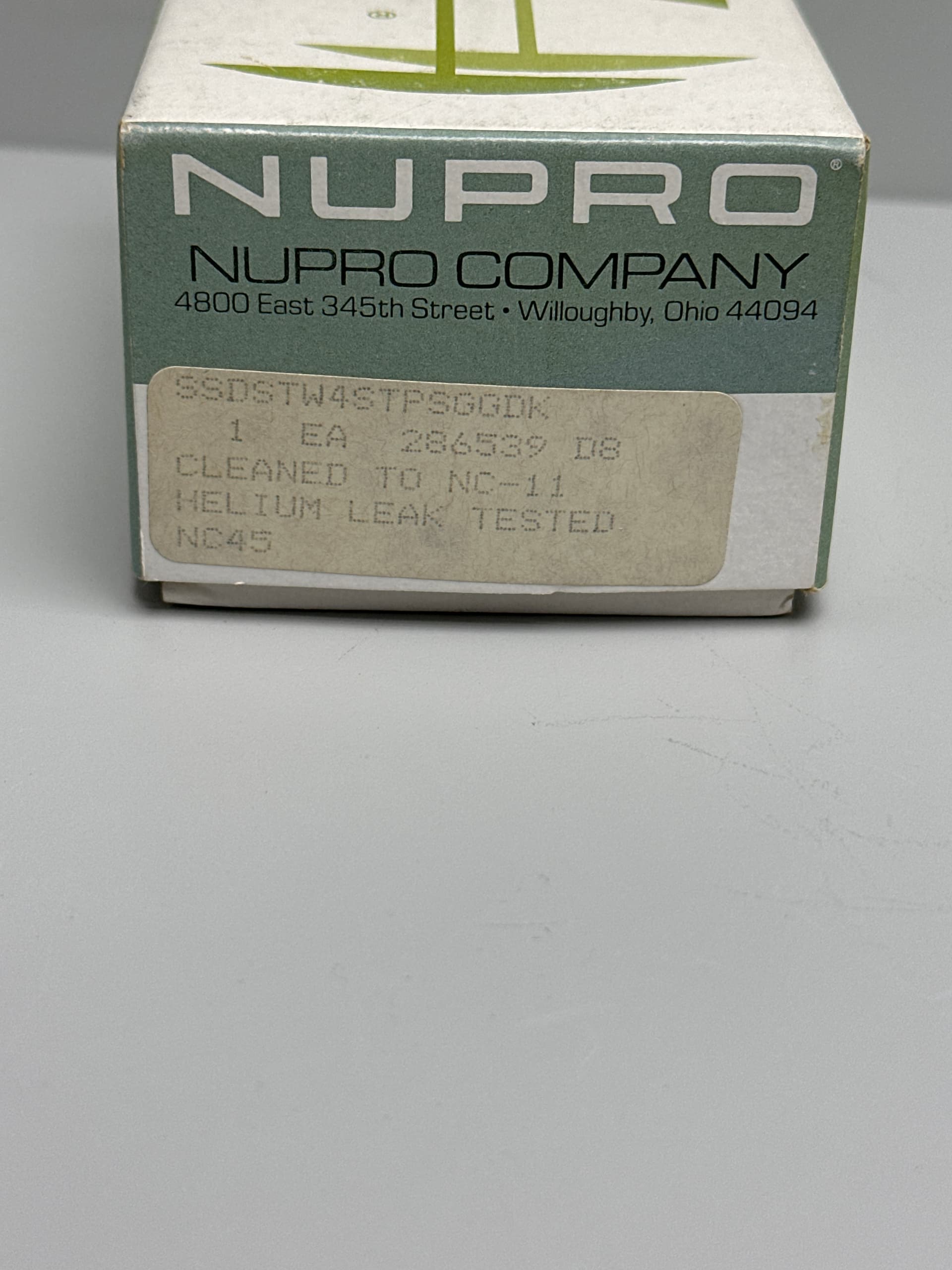

Package Label Specifications
| CLEANED TO | NC-11 |
| HELIUM LEAK TESTED | Yes |
| NC45 | NC45 |
Valve Specifications
| Body Material | 316L Stainless Steel |
| End Connections | 1/4 in. tube socket weld and 3/8 in. tube butt weld |
| CV Maximum | 0.3 |
| Maximum Temperature, °F (°C) | 250 (121) |
| Minimum Temperature, °F (°C) | -100 (-73) |
Condition & testing notes
Never used inventory in brand new condition. It is not tested.
