You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.
Swagelok SS-DLV51 Diaphragm Valve, 1/4 in. Female VCR, 316L SS
$155.0030 day return
- Condition
- Brand new See details
- Brand
- Swagelok
- MPN
- SS-DLV51
- SKU
- CID1419
- Availability
- 4 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
1/4 in. female VCR face-seal ends, 316L SS, lever handle, Cv 0.14, -100 to 250 F, 3500 psig at 70 F. SC-11 clean/helium tested.

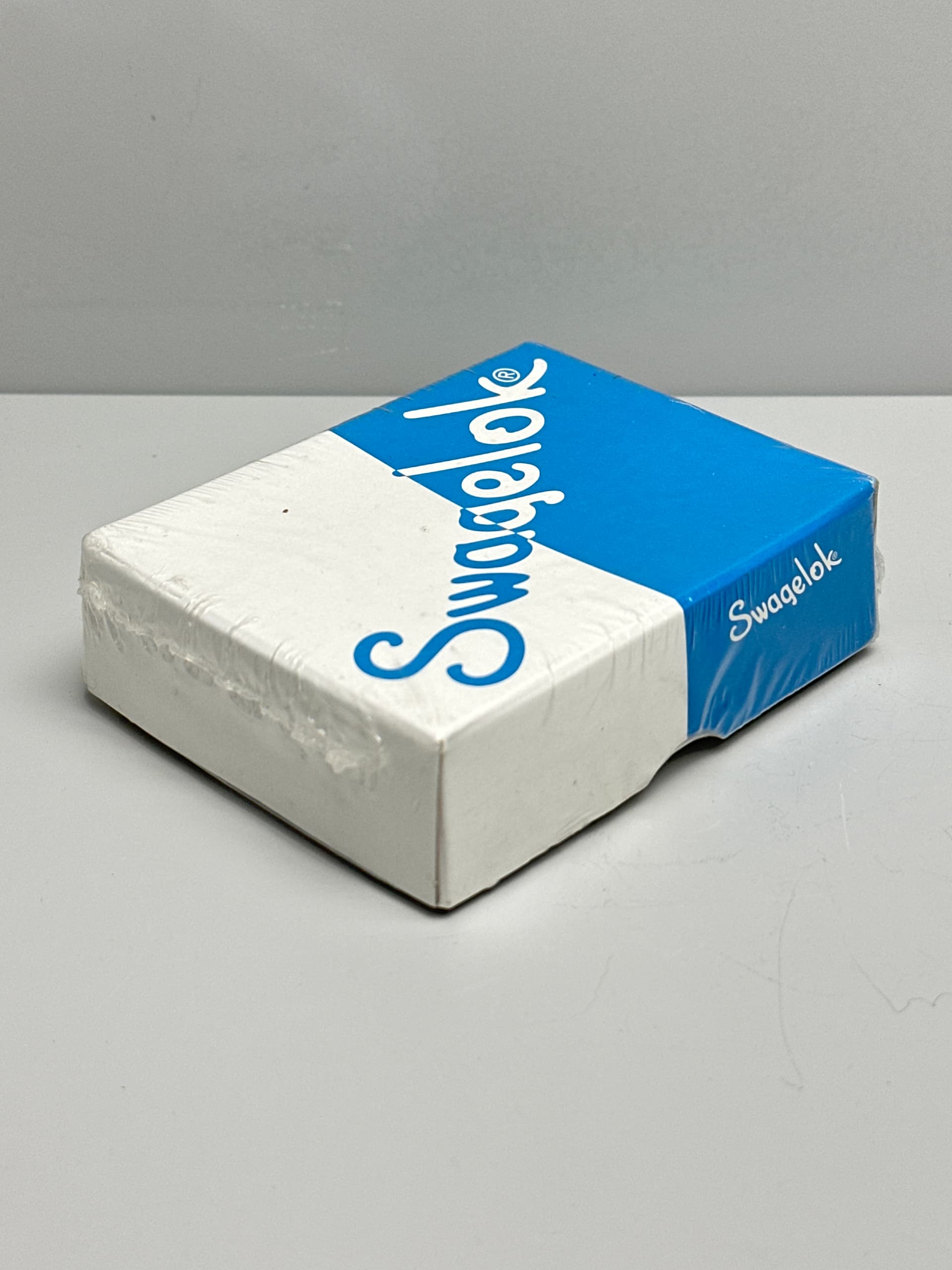

Please note: Available units may be branded Swagelok or Nupro, but are the same model number. Photos show the Swagelok branded example. All units are brand new, in sealed bags, however some boxes may not be sealed.
Technical specifications
| Cleaning / test | SC-11 CLEAN/HELIUM TESTED |
| Body Material | 316L Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Face Seal (Metal Gasket) Female VCR |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Face Seal (Metal Gasket) Female VCR |
| CV Maximum | 0.14 |
| Flow Pattern | Straight (2-way) |
| Handle Style | Lever |
| Maximum Temperature, °F (°C) | 250 (121) |
| Minimum Temperature, °F (°C) | -100 (-73) |
| Room Temperature Pressure Rating | 3500 PSIG @ 70°F /241 BAR @ 20°C |
| Max Temperature Pressure Rating | 250°F @ 2800 PSIG /121°C @ 192 BAR |
| Seat Material | PCTFE |
| Surface Finish | 20 µin (0.51 µm) Ra |
Item Specifications
| Qty | 1 PC |
| Cleaning / test | SC-11 CLEAN/HELIUM TESTED |
| Body Material | 316L Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Face Seal (Metal Gasket) Female VCR |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Face Seal (Metal Gasket) Female VCR |
| CV Maximum | 0.14 |
| Flow Pattern | Straight (2-way) |
| Handle Style | Lever |
| Maximum Temperature, °F (°C) | 250 (121) |
| Minimum Temperature, °F (°C) | -100 (-73) |
| Room Temperature Pressure Rating | 3500 PSIG @ 70°F /241 BAR @ 20°C |
| Max Temperature Pressure Rating | 250°F @ 2800 PSIG /121°C @ 192 BAR |
| Seat Material | PCTFE |
| Surface Finish | 20 µin (0.51 µm) Ra |
Condition & testing notes
Never used inventory in brand new condition. The item is from old surplus stock.
