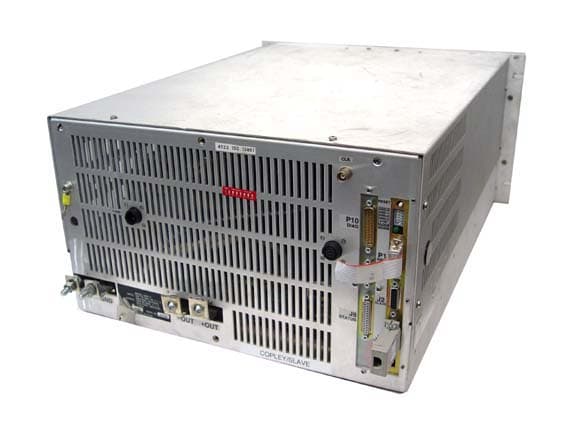

Amplifier may be Master/Slave for 2X Output Current
Power Requirements

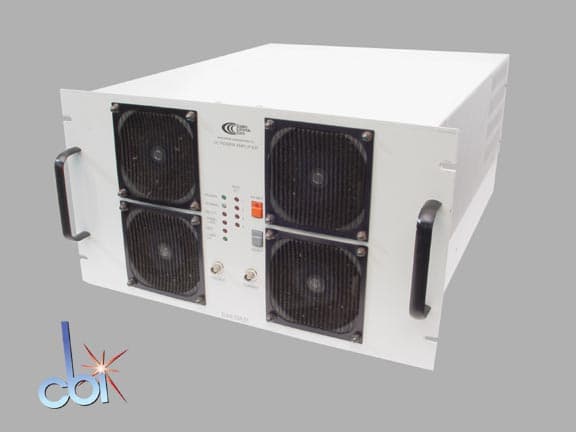

Fan Supply Required +28 V @ 2 A
High Voltage Supply +50 V to +160 V
Current required to supply load I2R losses plus amplifier losses
Quiescent Current 1.3 A
Internal Capacitance 72000 μF
Applications
Electromagnet excitation in particle guidance and focus in nuclear accelerator
Magnetic bearings and magnetic levitation
Vibration isolation
Automobile shock absorbers
Battery/fuel cell simulator for charge/discharge cycles
Motion control, including brushed, brushless, and multiphase DC linear mototrs
High DC stability (> 20 ppm/°C); paralleled for high current output filtering for perturbation-free magnetic field control
