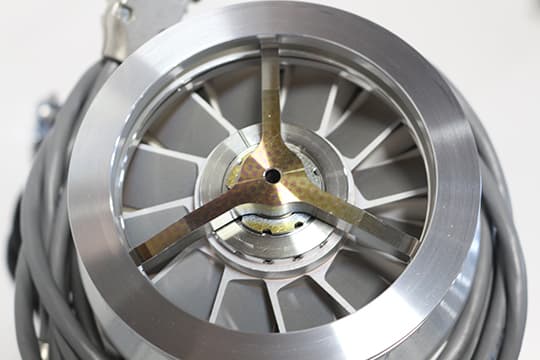

Edwards nEXT300D Turbo Pump with TIC D39712000 Controller
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Edwards
- MPN
- nEXT300D
- SKU
- 190969
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Turbo pump will be rebuilt when ordered, request lead time
Technical specifications
| Pumping Speed Nitrogen | 300.0 l/s (635.7 CFM) |
| Ultimate Pressure | 0.75E-9(En) torr (1.00E-9 mbar) |
| Inlet Flange | ISO-K 100.0 mm (3.937 in) |
| Foreline Flange | KF 25.0 mm (0.984 in) |
| Controller Included | Yes |

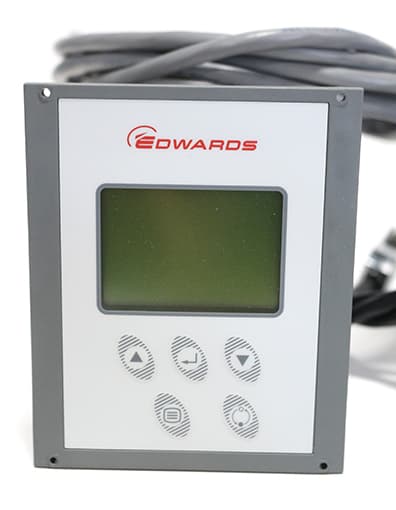

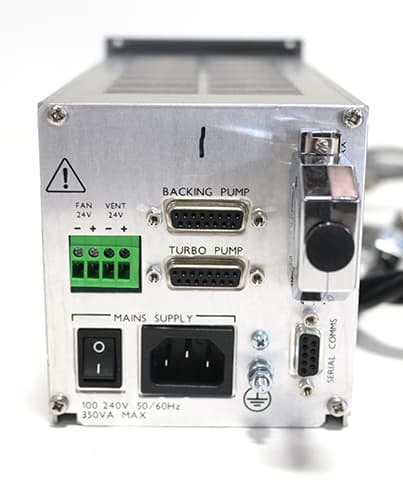

| Controller Model/Part Number | TIC D39712000 |
| Cables Included | Yes |
| Duty--Service | Normal |
| Inlet Screen Included | Yes |
| Bearing Type | Other |
| Rotational Speed | 60,000 RPM |
| Startup Time | 3 minutes |
| External Cooling | Air- OR Water-Cooled |
| Power Requirements | 120/240 V 2.0 A 50/60 Hz 1 Phase |
| Year of Manufacture | 2014 |
| Weight | 13 lb (6 kg) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
