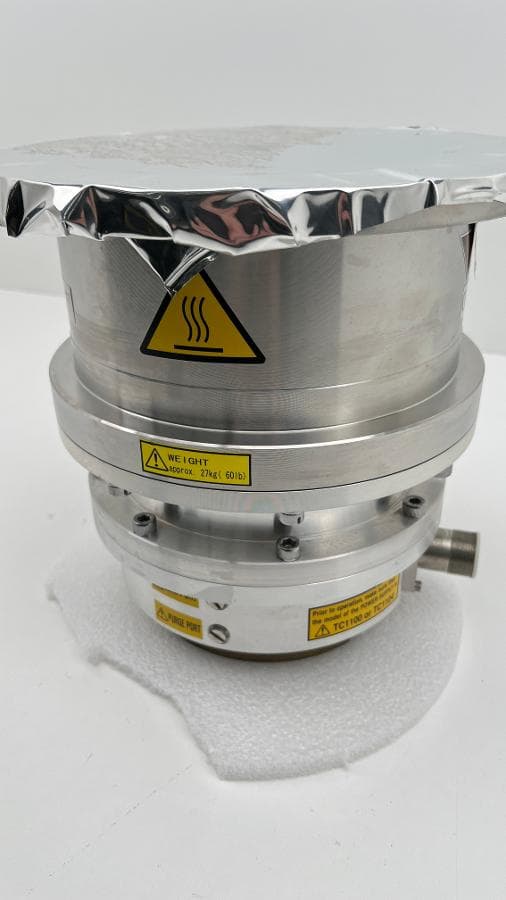

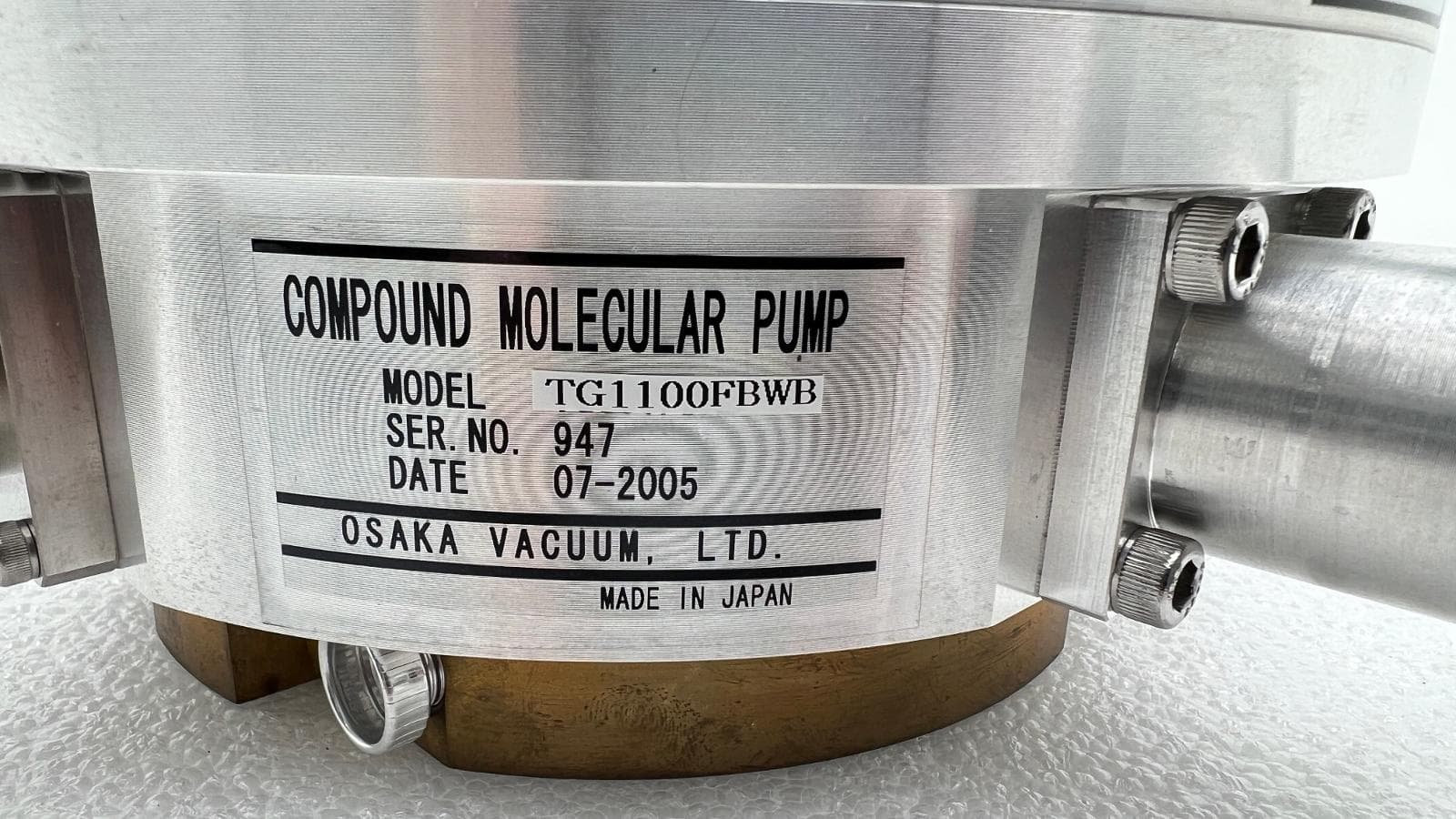

Osaka Vacuum TG1100FBWB Turbo Vacuum Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Osaka Vacuum
- MPN
- TG1100FBWB
- SKU
- 263427
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Controller sold separately https://www.capovani.com/items/140322
Features
Any orientation
Compact size
Energy-saving
Quick start up
Quick shut down with gas vent
Durable structure for air inrush
Applications
Semiconductor production
Electron gun exhaust, ionization source exhaust
FPD manufacturing
Surface treatment, surface modification
Manufacture of various electronic components
Analysis, testing equipment
Lamp production, optical components production
Accelerating device, radiation facility, nuclear fusion research
Heat treatment
Research and development
Technical specifications
| Pumping Speed Nitrogen | 1,100.0 l/s (2,331.0 CFM) |
| Ultimate Pressure | 0.75E-8(En) torr (1.00E-8 mbar) |

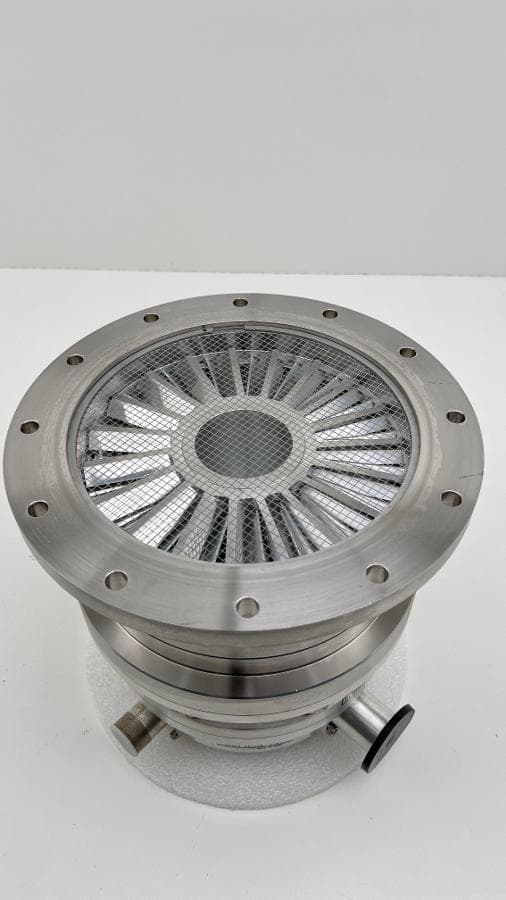

| Inlet Flange | ISO-F 200.0 mm (7.874 in) |

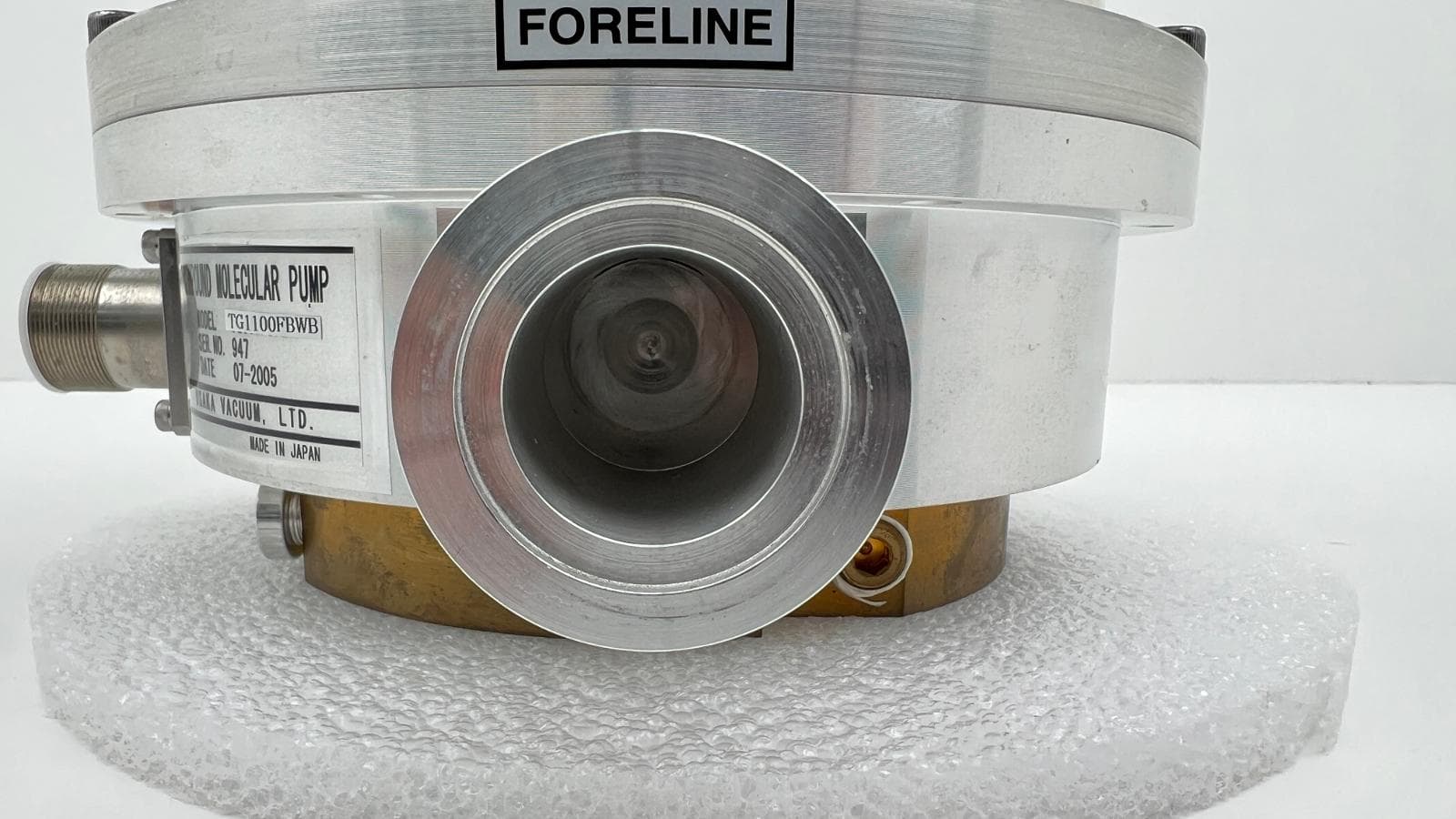

| Foreline Flange | KF 40.0 mm (1.575 in) |
| Controller Included | No |
| Controller Model/Part Number | TD2001 |
| Cables Included | No |
| Duty--Service | Normal |
| Inlet Screen Included | Yes |
| Bearing Type | Ceramic |
| Installation Orientation | Any |
| Rotational Speed | 33,600 RPM |
| Startup Time | 9 minutes |
| External Cooling | Water Cooled |
| Weight | 62 lb (28 kg) |
Exterior Dimensions
| Width | 11.220 in (28.5 cm) |
| Height | 11.063 in (28.1 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
Documents
- TG1100FBWB.JPEGJPEG
