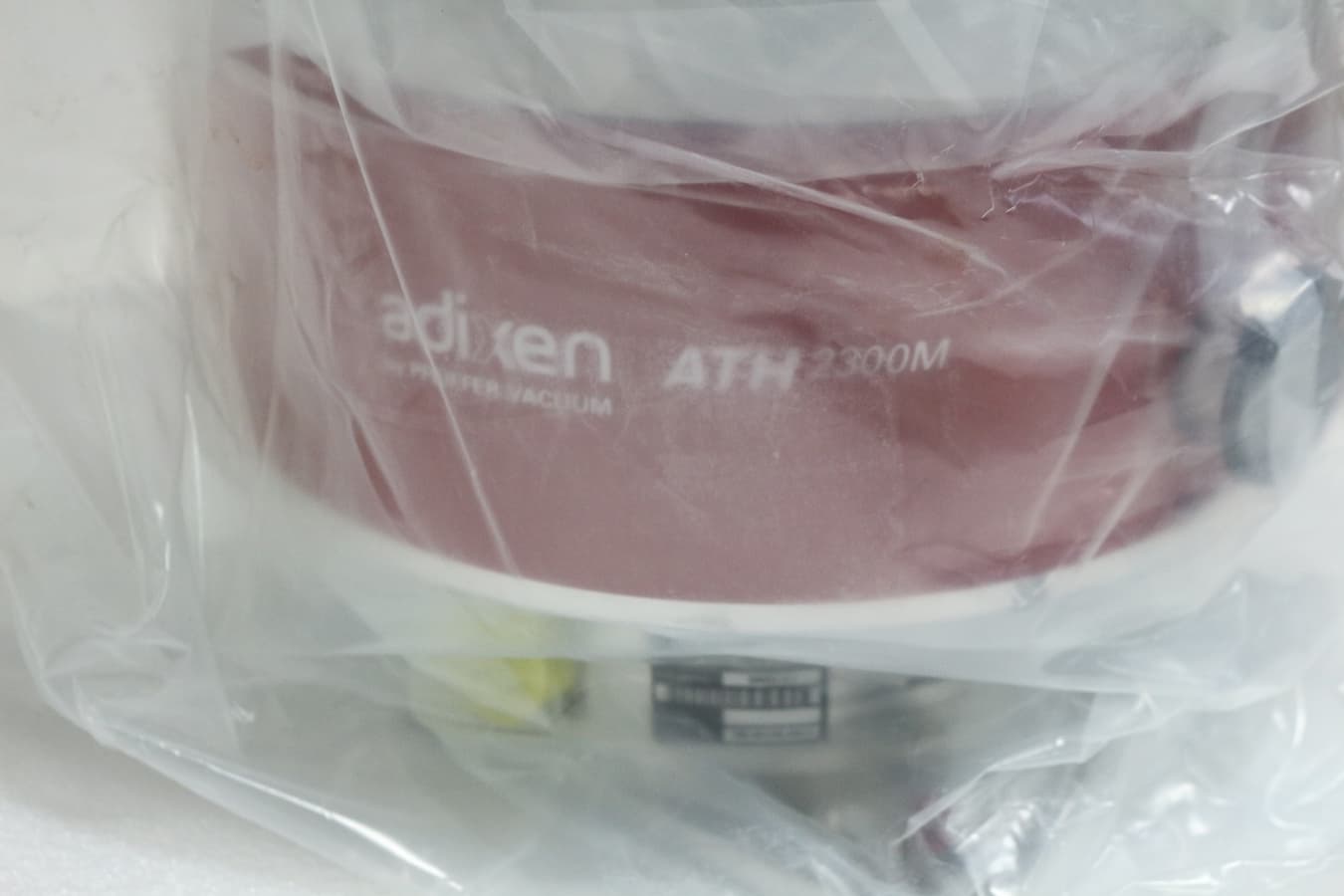

Pfeiffer ATH 2300M Turbo Pump and OBC V4 Profibus Controller
Quoted on requestWorking & warranted
- Condition
- Brand new See details
- Brand
- Pfeiffer Vacuum
- MPN
- ATH 2300 M
- SKU
- 196836
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

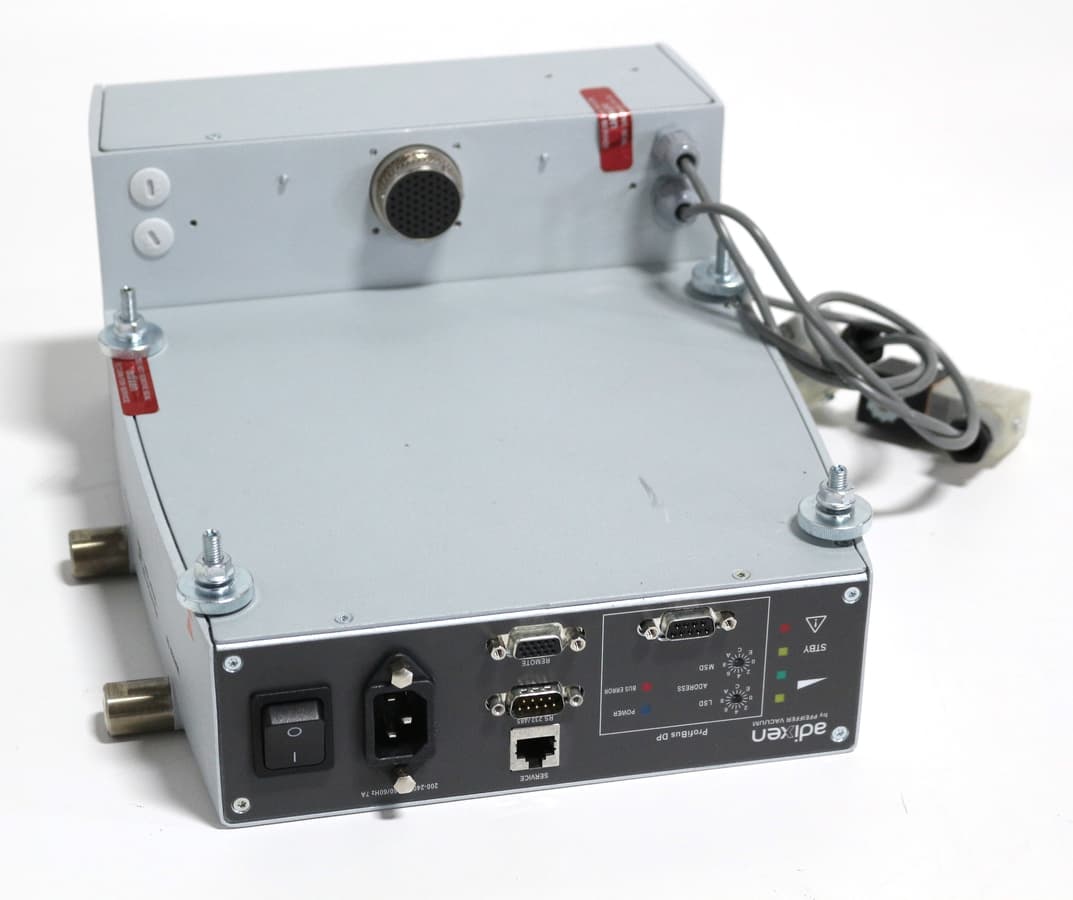

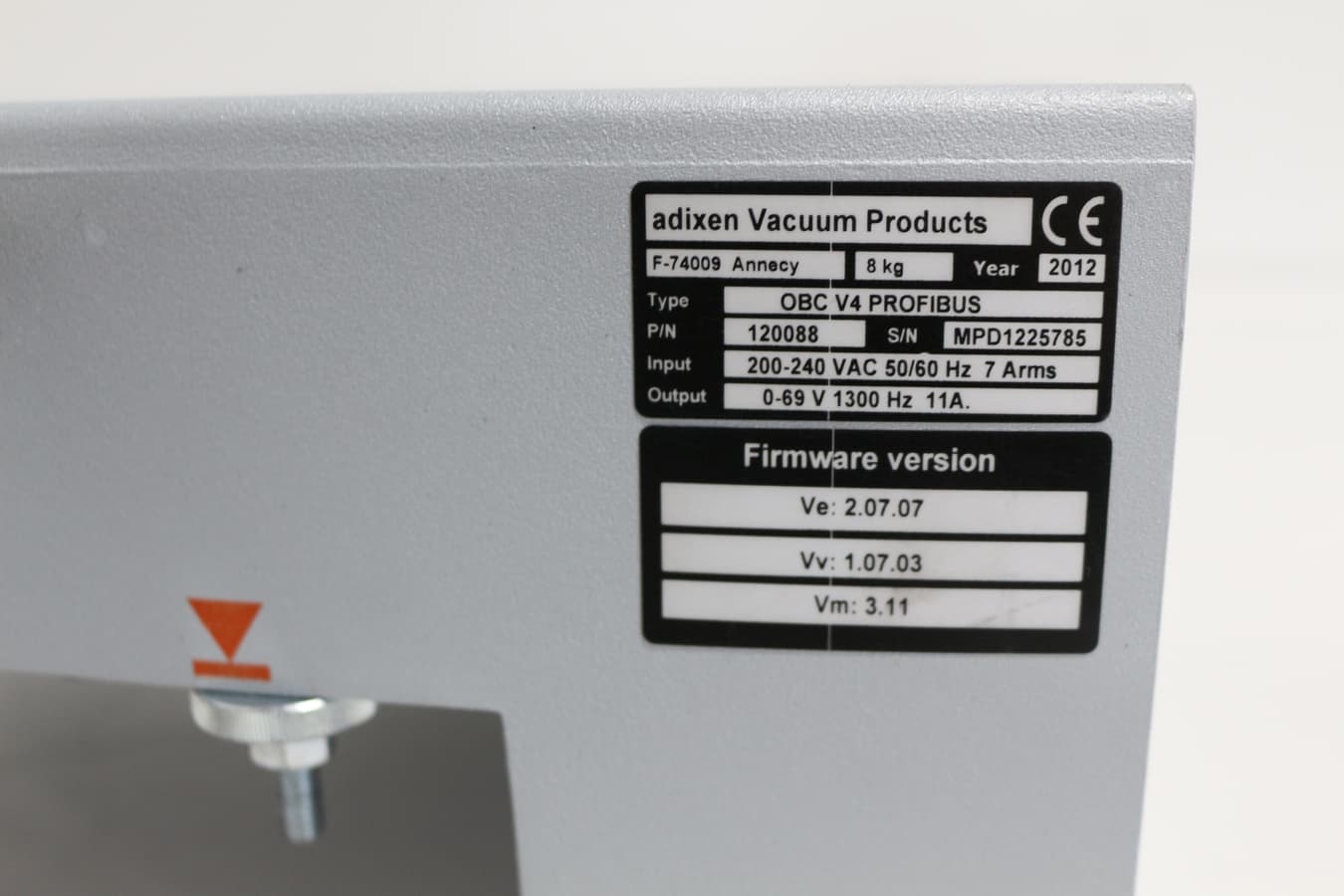

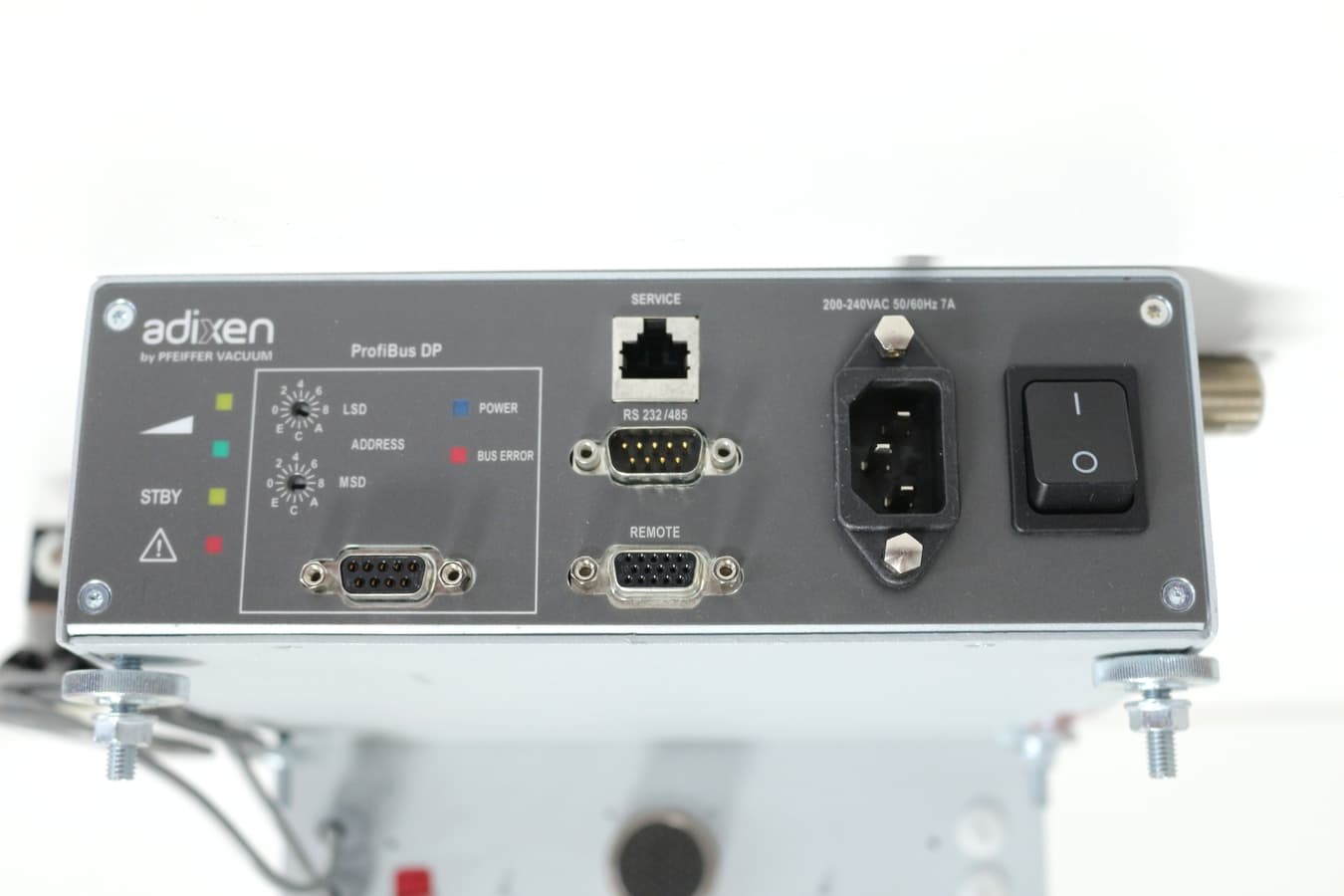

OBC V4 Integrated Drive Electronics, Profibus, Water Cooled. P/N: 120088. This controller is not new.
Pump Part No.: Q66621A1
Technical specifications
| Pumping Speed Nitrogen | 2,150.0 l/s (4,556.1 CFM) |
| Inlet Flange | ISO-F 250.0 mm (9.843 in) |
| Foreline Flange | KF 40.0 mm (1.575 in) |
| Controller Included | Yes |
| Controller Model/Part Number | OBC V4 Profibus |
| Duty--Service | Normal |
| Inlet Screen Included | Yes |
| Bearing Type | Magnetic Levitation |
| Installation Orientation | Any |
| Rotational Speed | 31,000 RPM |
| Startup Time | 8 minutes |

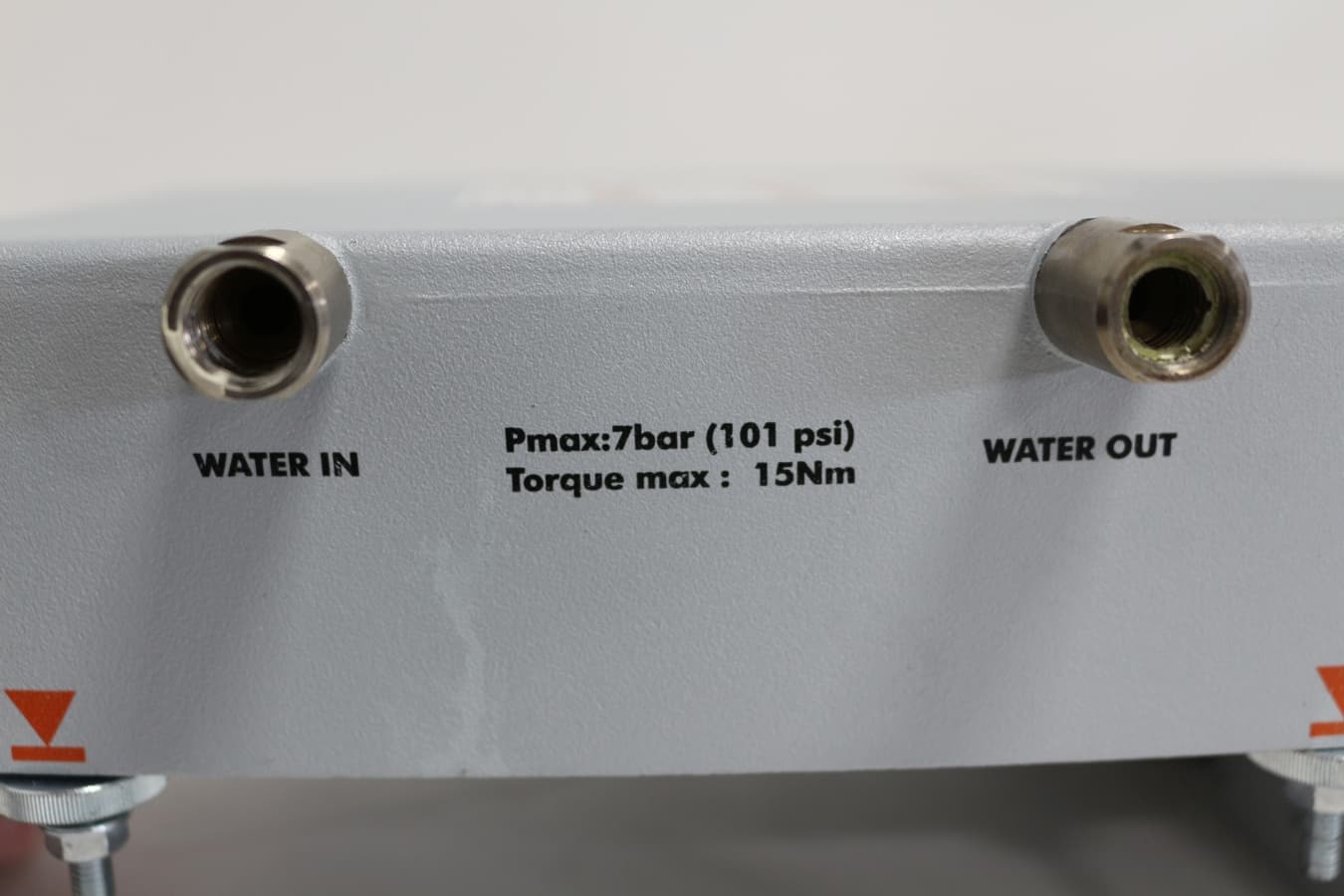

| External Cooling | Water Cooled |
| CE Marked | YES |
| Year of Manufacture | 2013 |
Condition & testing notes
Never used inventory in brand new condition.
