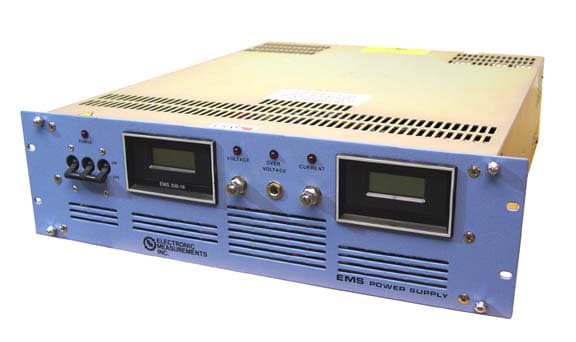

Electronic Measurement EMS 300-16 DC Power Supply
- Condition
- Used See details
- Brand
- Electronic Measuremt
- MPN
- EMS 300-16-2-D LB-10T-1401
- SKU
- 3703
- Availability
- 7 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Model EMS 300-16-2-D-LB-10T-1401
0-5V voltage and current remote control
0-5V voltage and current monitor scale
Stability 0.05%
Regulation 0.1%
Watts 5000
Programmable
This power supply has option -1401: “Fast discharge option”. Output electrolytic filtering capacitor is replaced with polyester one with much smaller value to achieve fast discharge. As a result, output voltage is less filtered, ripple P-2-P voltage @ full power is 5.7 V. Standard power supply without -1401 option specification: ripple P-2-P voltage 0.15 V.
Technical specifications
| Maximum Output Voltage | 300.00 Volts |
| Maximum Output Current | 16.00 Amps |
| Maximum Output Power | 4.80 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Ripple | 150 |
| Panel Meters | Digital |
| Control Type | Analog Setpoint |
| External Cooling | Forced Air Cooled |
| Power Requirements | 190-250 V 24.0 A 50/60 Hz 3 Phase |
| Weight | 46 lb (21 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 22.000 in (55.9 cm) |
| Height | 5.250 in (13.3 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
