You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.

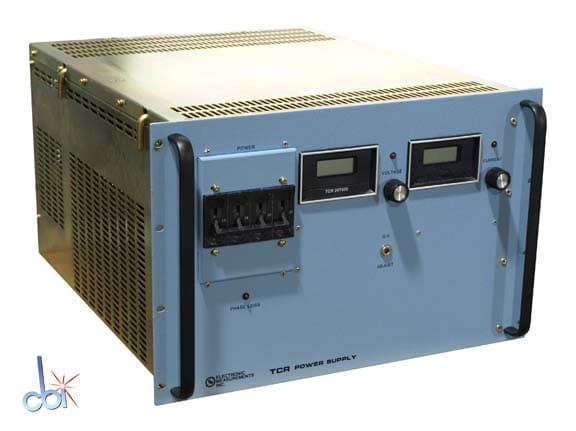

Electronic Measurement TCR 20T500-4-D-OV DC Power Supply
$3,500.00Working & warranted
- Condition
- Used See details
- Brand
- Electronic Measuremt
- MPN
- TCR 20T500-4-D-OV
- SKU
- 119557
- Availability
- 5 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Technical specifications
| Maximum Output Voltage | 20.00 Volts |
| Maximum Output Current | 500.00 Amps |
| Maximum Output Power | 10.00 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Panel Meters | Digital |
| External Cooling | Air Cooled |
| Power Requirements | 480 V 30.0 A 60 Hz 3 Phase |
| Weight | 304 lb (138 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 27.000 in (68.6 cm) |
| Height | 13.000 in (33.0 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
