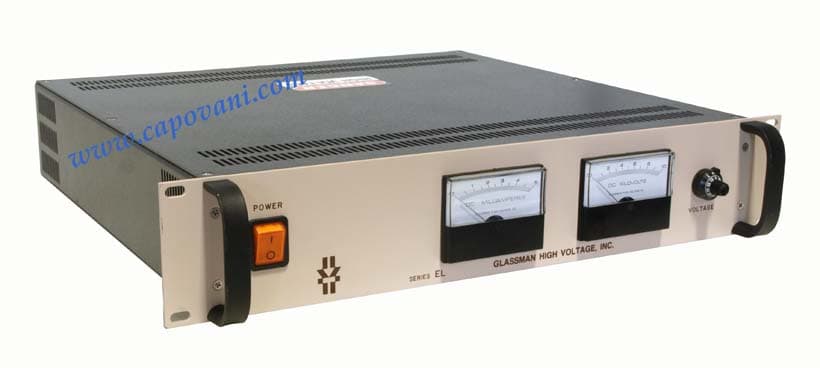

Glassman PS/EL10P4 High Voltage Power Supply, Positive Polarity
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Glassman
- MPN
- PS/EL10P4
- SKU
- 143191
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
3M (10') HV cable add $200 with the purchase of the power supply, inquire about longer cables.
To purchase HV cable alone the price will be $320 for a 3M (10'), inquire on longer cables.
Positive Polarity
We will not honor our 90 day warranty if this power supply will be used for arc or spark gap applications
Technical specifications
| Maximum Output Voltage | 10.0 kV |
| Maximum Output Current | 4.0 mA |
| Bipolar | No |
| Panel Meters | Analog |
| Ripple | <0.03% RMS of rated voltage at +0.5v at full load |
| Regulation | Better than 0.005% |
| Interface | I/O Port |
| External Cooling | Air Cooled |
| Power Requirements | 115 V 48-440 Hz 1 Phase |
| Weight | 12 lb (5 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 18.000 in (45.7 cm) |
| Height | 3.500 in (8.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
