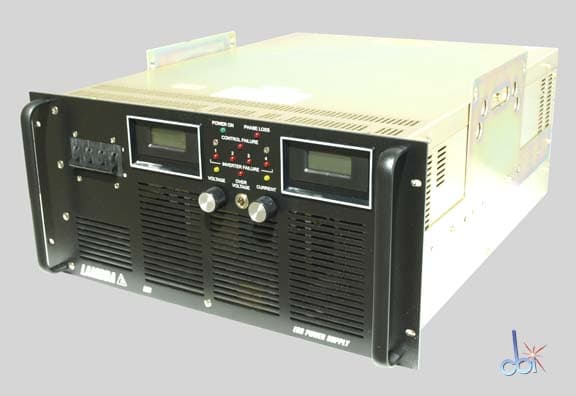

Lambda/Electronic Measurement Inc. ESS 80-185-10-D-CE-1256 DC Power Supply
$3,450.00Working & warranted
- Condition
- Used See details
- Brand
- Electronic Measuremt
- MPN
- ESS 80-185-10-D-CE-1256
- SKU
- 105546
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

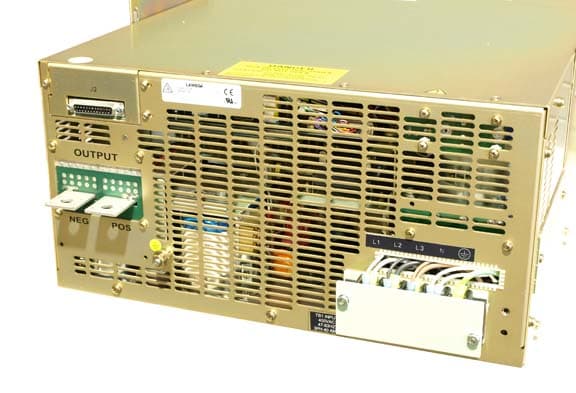

Power Requirements: 400 VAC, 47-63 Hz, 40 amp, 3 phase, 5 wire
Overvoltage Protection
Model number: 80-185-10-D-CE-1256
Part no. 00481706
Note: Not for use on 480 VAC, 3 phase power
Technical specifications
| Maximum Output Voltage | 80.00 Volts |
| Maximum Output Current | 185.00 Amps |
| Maximum Output Power | 14.80 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Ripple | 75 mV |
| Panel Meters | Digital |
| CE Marked | YES |
| Weight | 112 lb (51 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 25.000 in (63.5 cm) |
| Height | 10.000 in (25.4 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
