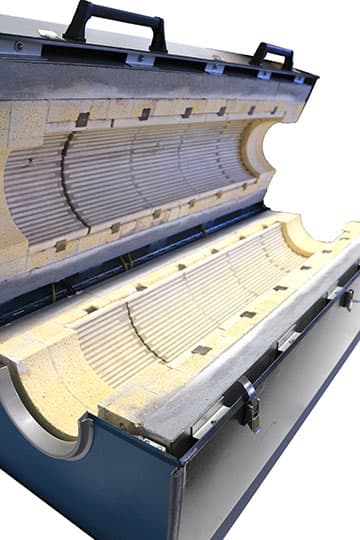

Lindberg 54877 1200 Deg Split Tube Furnace
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Lindberg
- MPN
- 54877
- SKU
- 181761
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Optional Quartz retort available. 7" diameter x 36" long, open on one end; inquire on pricing.
14280 watts

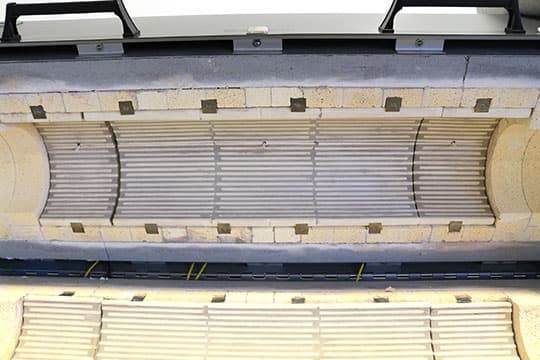

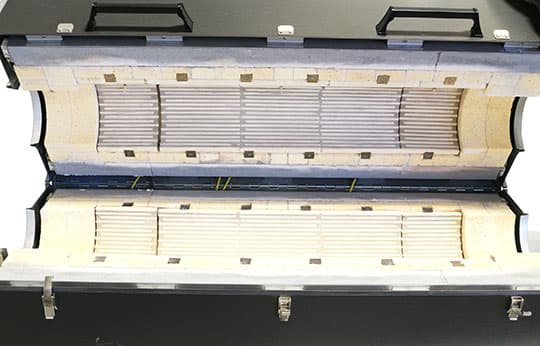

Hot zone: 24"
Refractory diameter: 7"

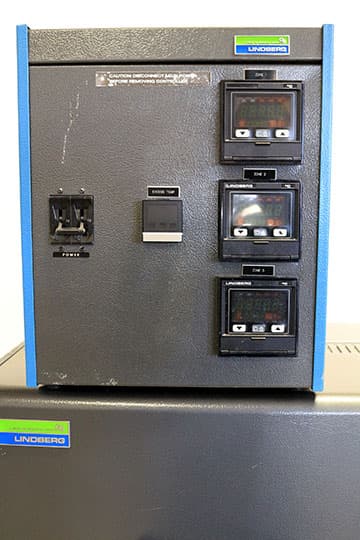

Eurotherm 818S programmable controllers (3)
Eurotherm 93 Temperature limit controller (1)
Technical specifications
| Maximum Temperature | 1,200 ºC (2,192 ºF, 1,473 ºK) |
| External Cooling | Air Cooled |
| Tube Dimensions | Diameter: 7.00 in (17.78 cm) Length: 36.00 in (91.44 cm) |
| Number of Gas Inputs | 0 |
| Power Requirements | 240 V 60 Hz 1 Phase |
| Weight | 510 lb (231 kg) |
Heat/Cool Controls
| Control Type | Programmable |
| Overtemperature Protection | YES |
| Controller Manufacturer/Model | Lindberg 58434-B |
| Number of Control Zones | 3 |
Exterior Dimensions
| Width | 22.000 in (55.9 cm) |
| Depth | 37.000 in (94.0 cm) |
| Height | 20.000 in (50.8 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
