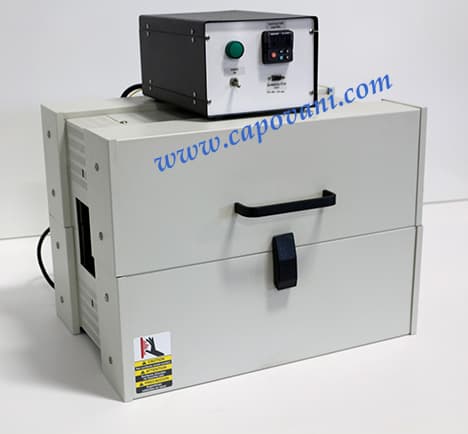

Lindberg HTF55322C Tube Furnace

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Lindberg/Blue M
MPN
HTF55322C
SKU
196492
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

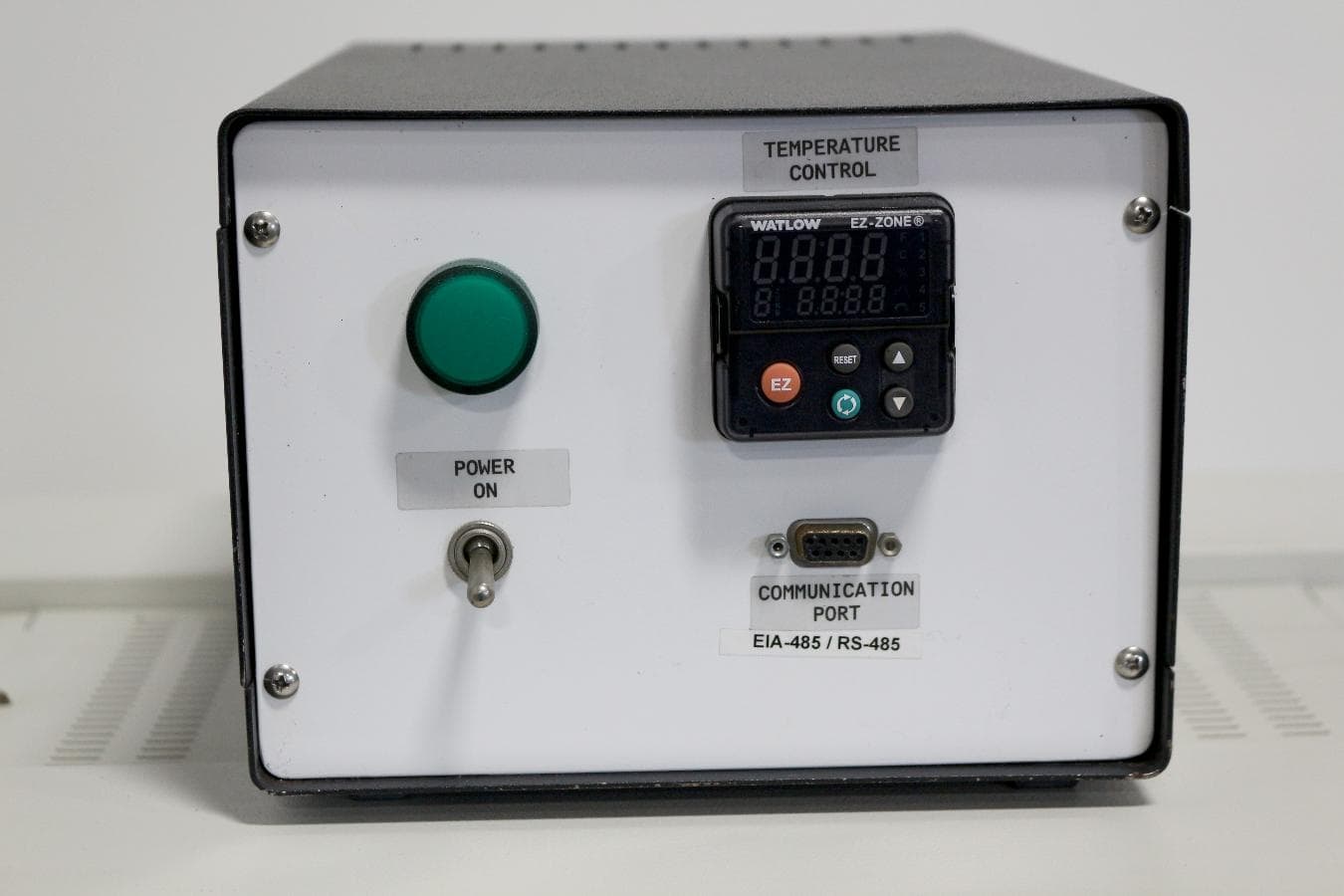

Watlow PM6 controller with High Limit protection. and Profiling ramp and soak option.

Up to 40 steps and four profiles, no real time clock or battery back-up option.

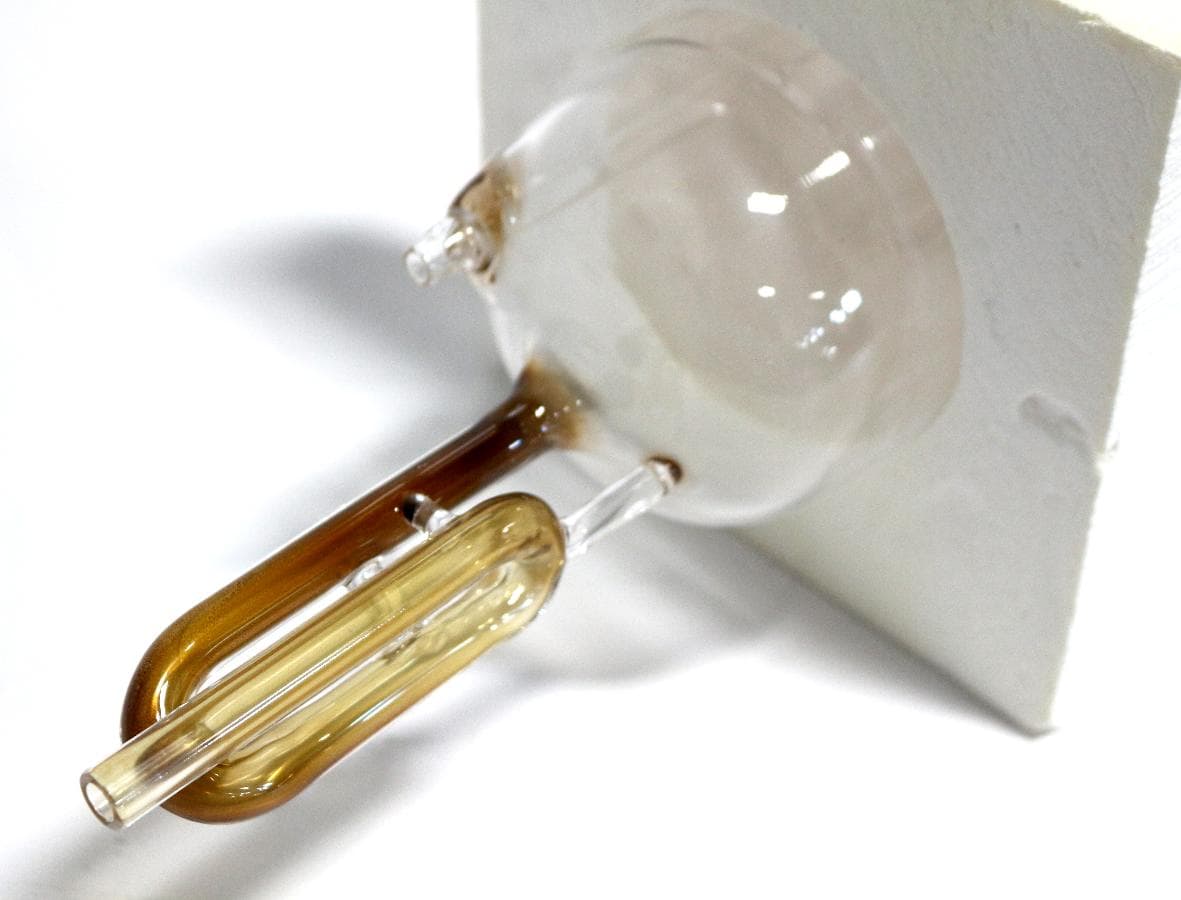

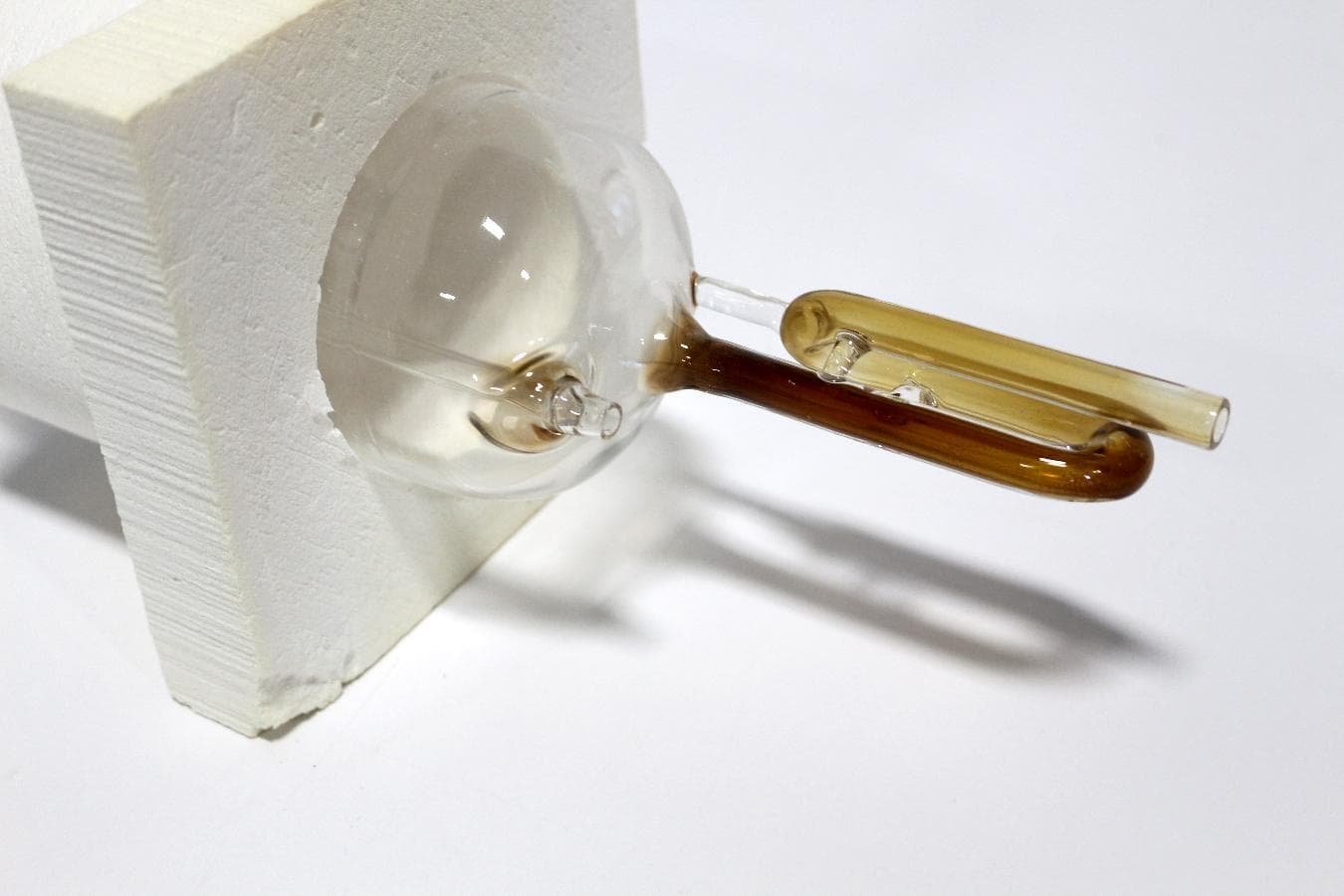

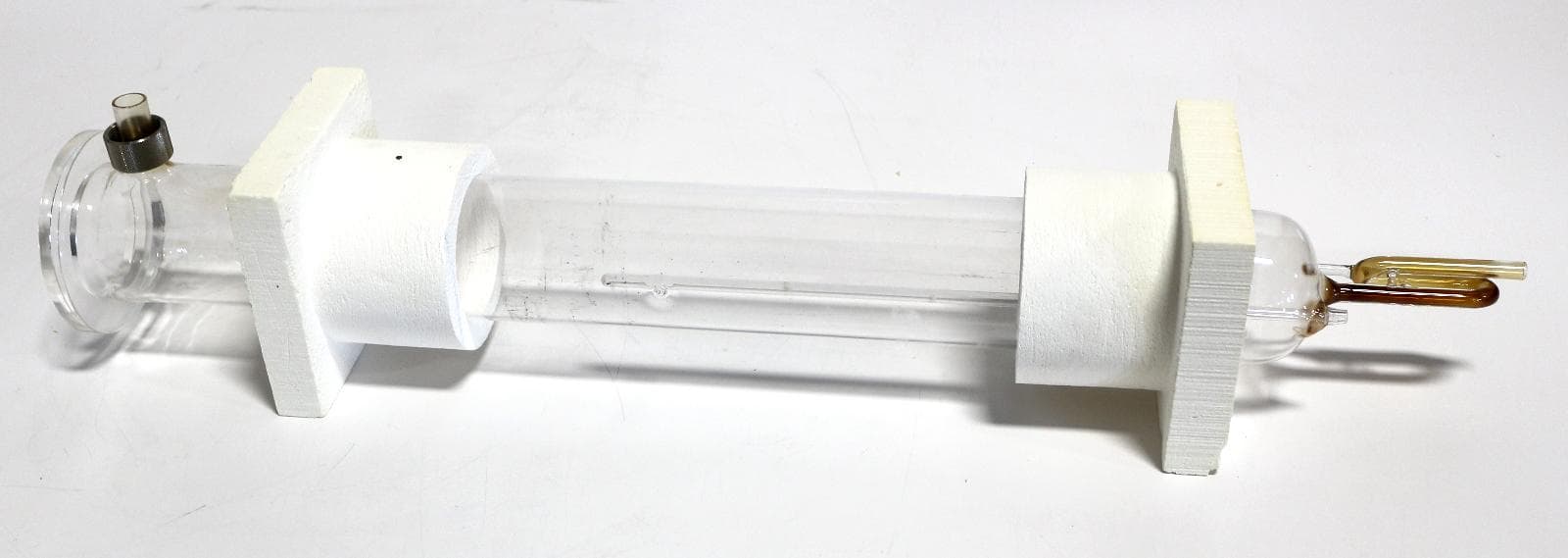

Retort

Material Unknown, either pyrex or quartz

Overall Length 23" end to end.

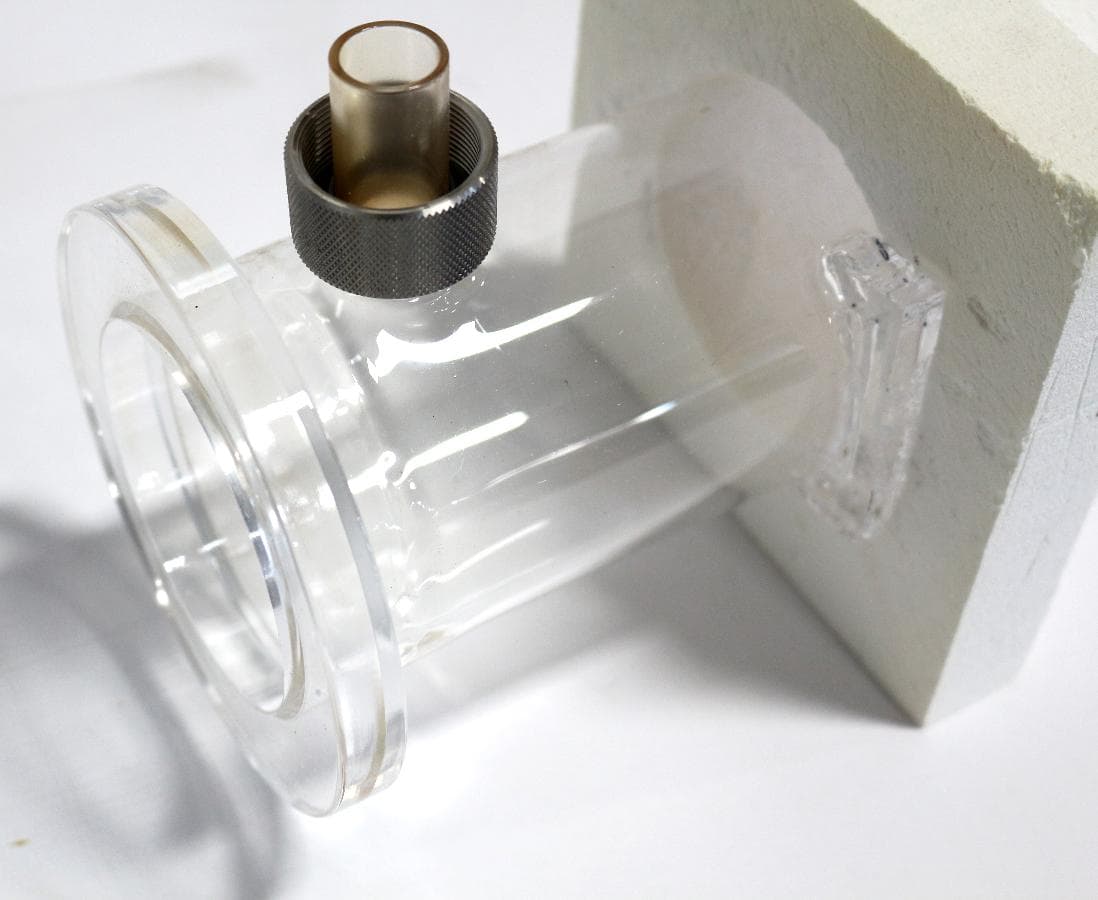

3" ID. sealed on one end, other end open.

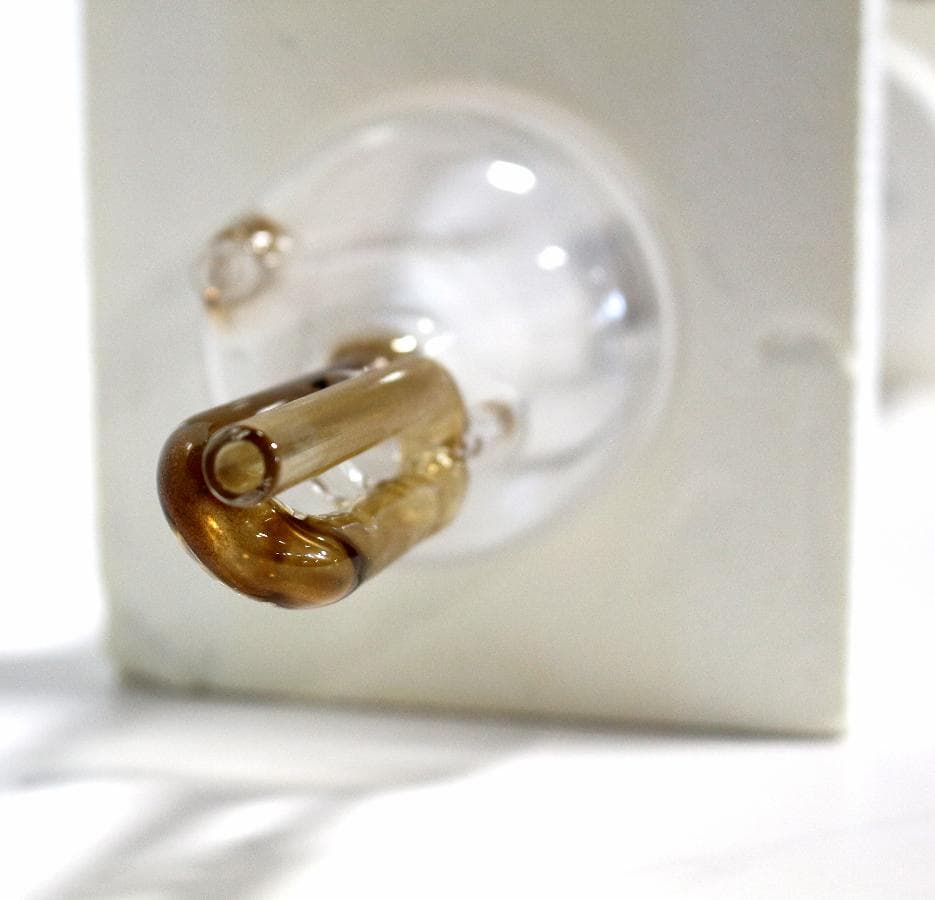

Gas feed tube inside retort, see other images for details.

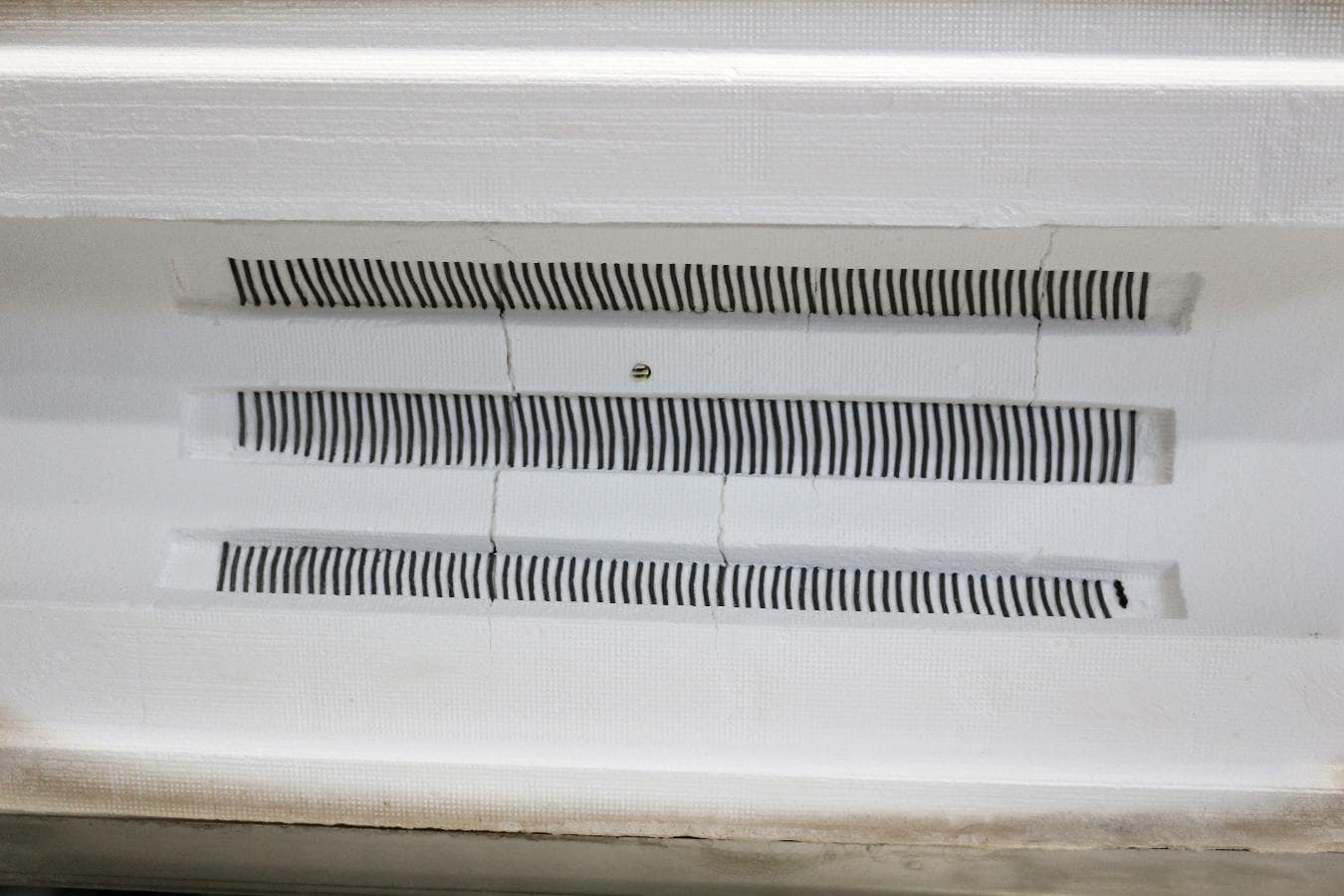

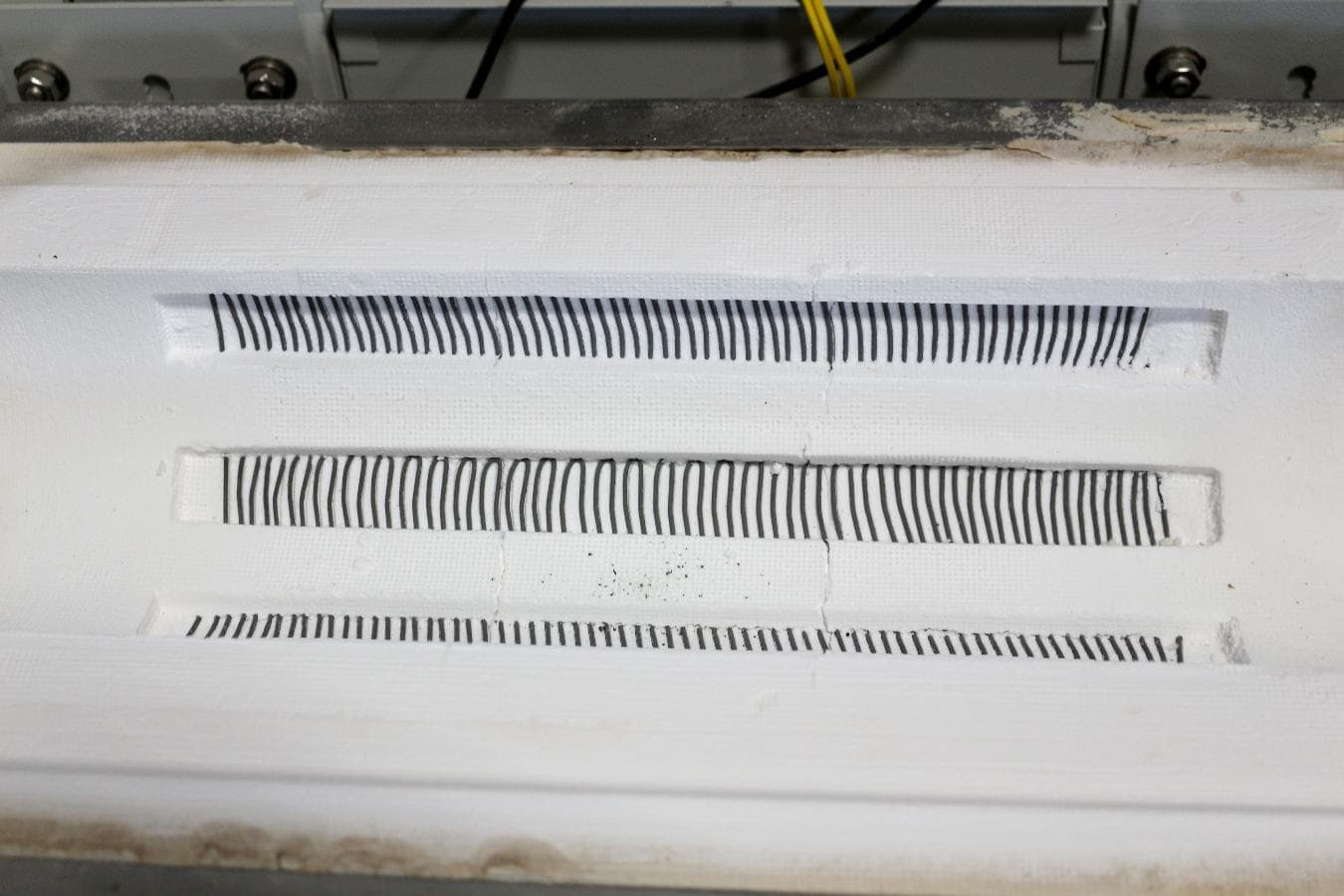

Refractory ID 3.5"

Hot Zone 12"

Heater 2.67 KW

Technical specifications

Maximum Temperature1,200 ºC (2,192 ºF, 1,473 ºK)
Minimum Temperature21 ºC (70 ºF, 294.00 ºK)
Tube DimensionsDiameter: 4.50 in (11.43 cm) Length: 18.00 in (45.72 cm)
Thermocouple TypeType K
Retort IncludedYES

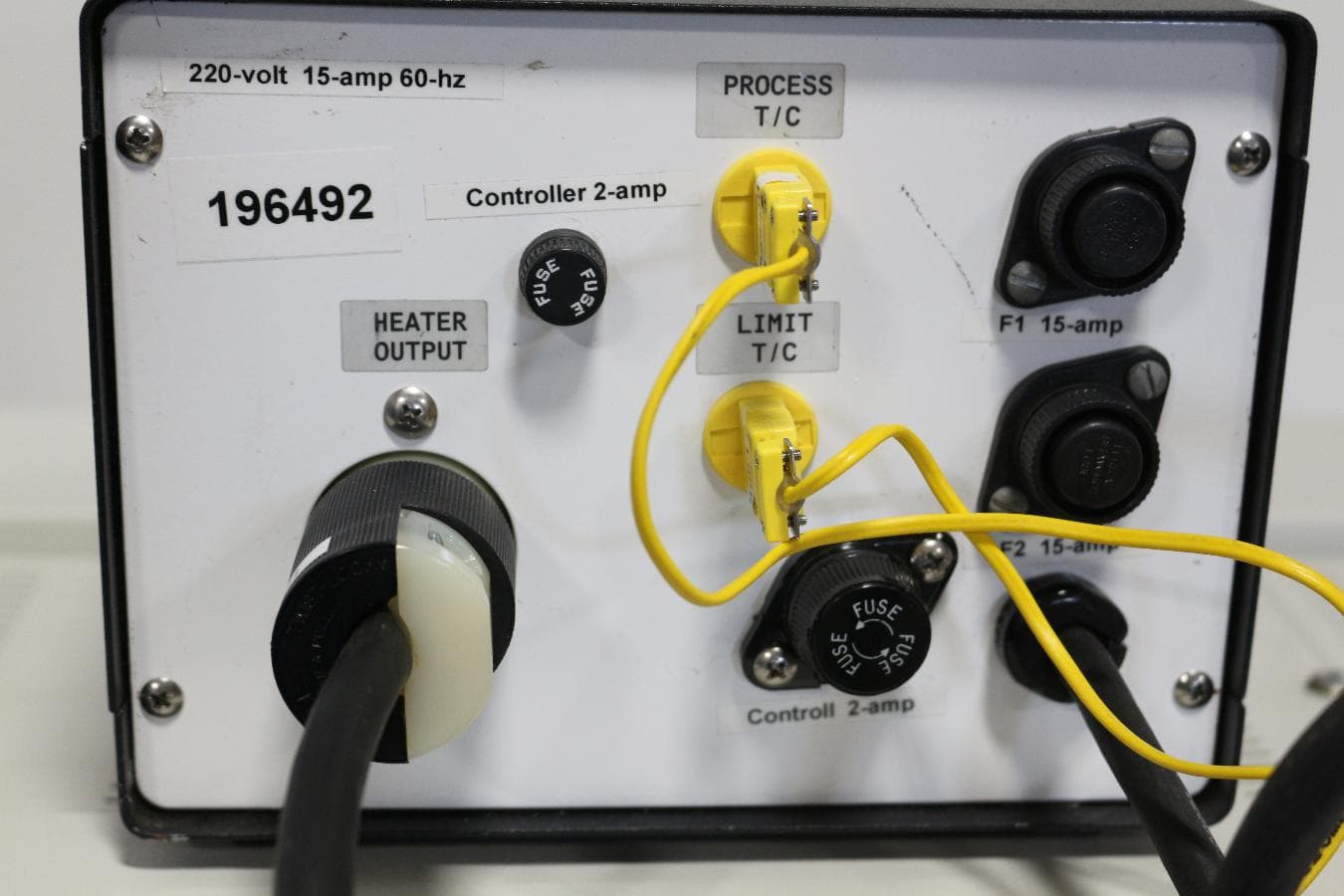

Power Requirements240 V 12.0 A 50/60 Hz 1 Phase

Temperature Control

Control Stability± 0.100 ºC

Heat/Cool Controls

Control TypeProgrammable
InterfaceRS 485
Controller Manufacturer/ModelWatlow EZ-Zone PM6R1CA-ALAJAAA
Number of Control Zones1

Exterior Dimensions

Width20.000 in (50.8 cm)
Depth23.000 in (58.4 cm)
Height17.000 in (43.2 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.

How our listings work

Lindberg Blue M Mini Mite TF55035A-1 Tube Furnace

SKU: 235343

1 in stock
Lindberg Blue M Mini Mite TF55035A-1 Tube Furnace
Working & Warranted
Used
Request Pricing
Lindberg 54S977M-1200 Tube Furnace

SKU: 215562

1 in stock
Lindberg 54S977M-1200 Tube Furnace
Working & Warranted
Used
Request Pricing

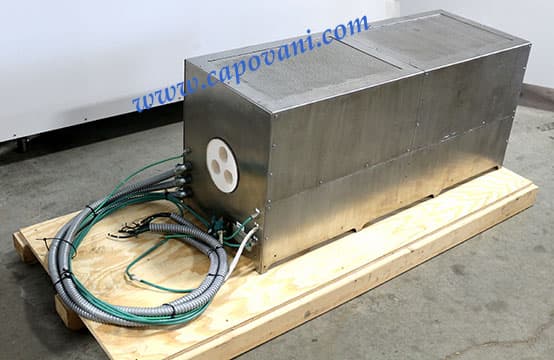

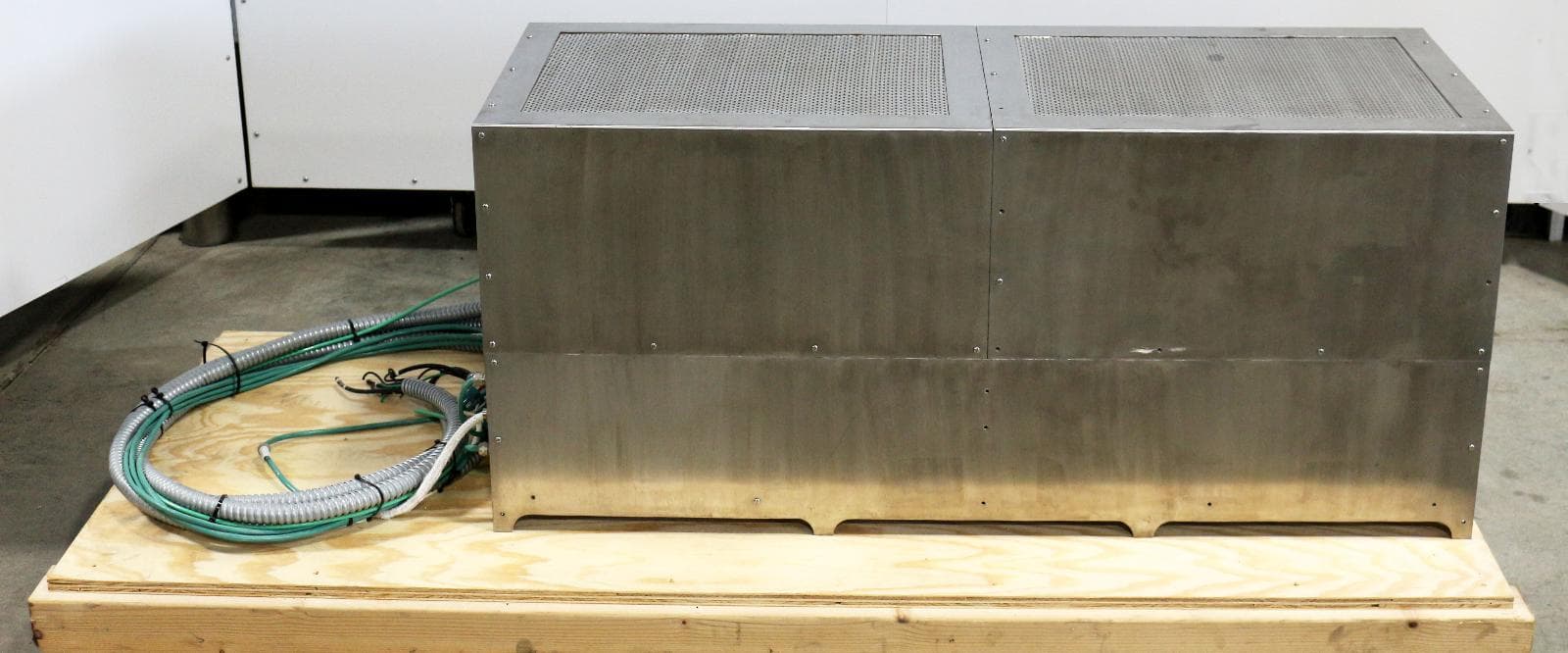

Micropyretics Heaters International 4H15HT3ZIR Tube Furnace

SKU: 199516

1 in stock
Micropyretics Heaters International 4H15HT3ZIR Tube Furnace
Working & Warranted
Used
Request Pricing

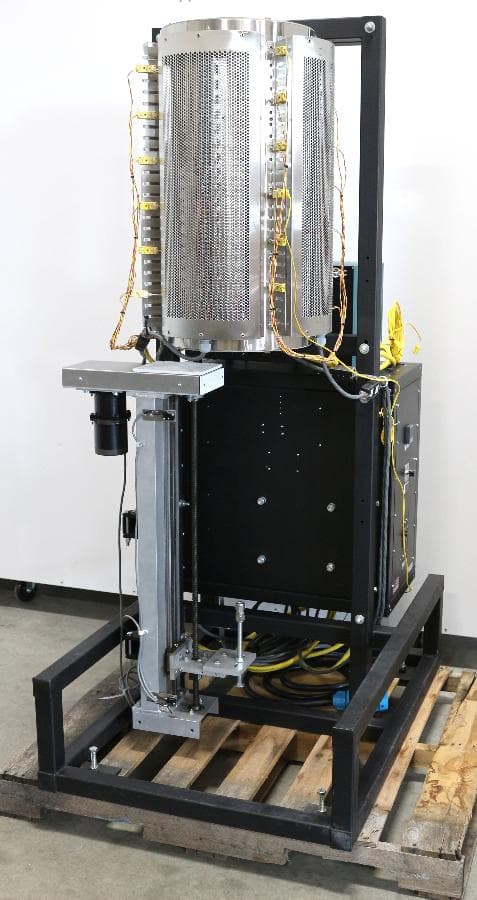

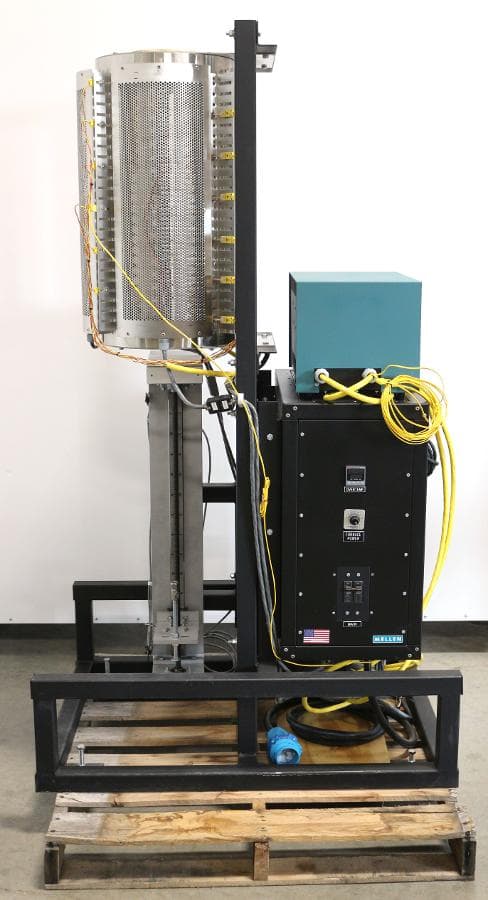

Mellen EDG 11-5x24-24Z Crystal Growth Furnace

SKU: 199515

1 in stock
Mellen EDG 11-5x24-24Z Crystal Growth Furnace
Working & Warranted
Used
Request Pricing

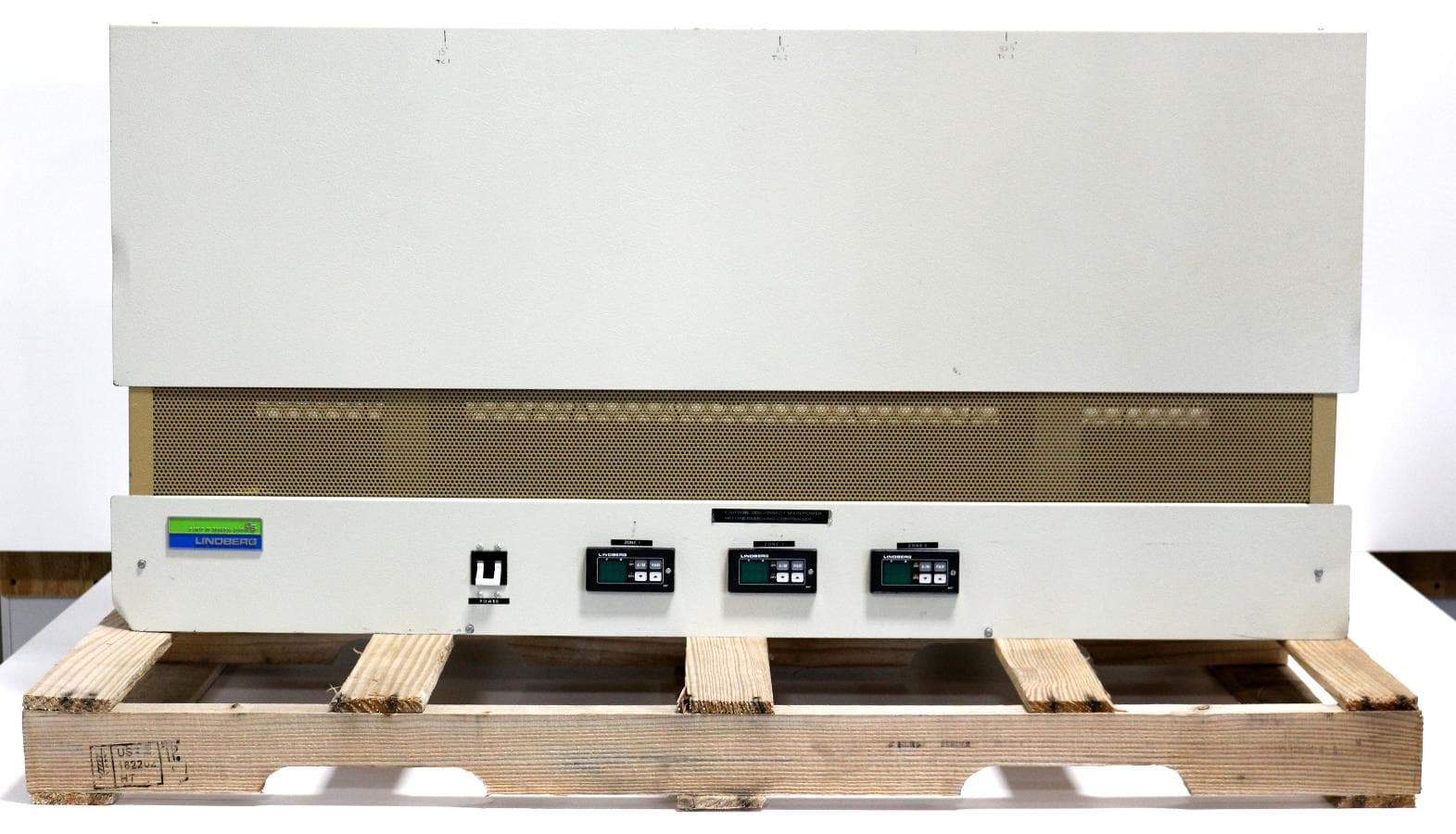

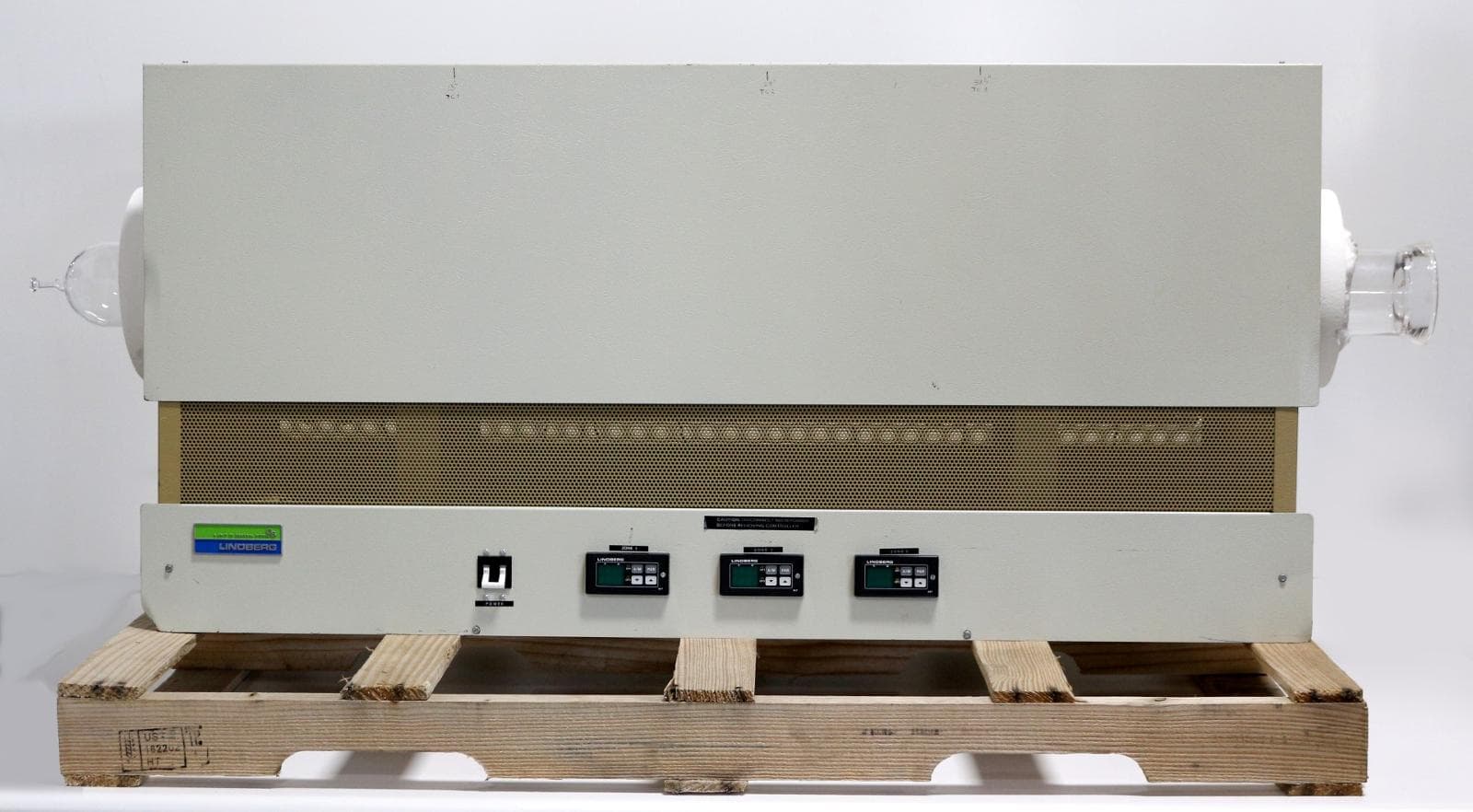

Lindberg 55666 Tube Furnace, Three Zone

SKU: 196826

1 in stock
Lindberg 55666 Tube Furnace, Three Zone
Working & Warranted
Used
Request Pricing

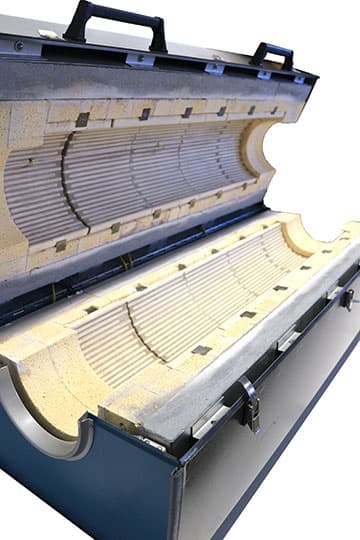

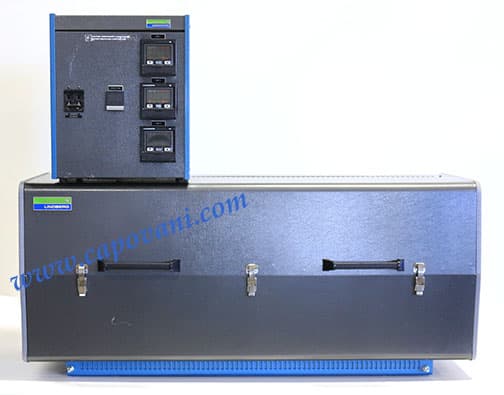

Lindberg 54877 1200 Deg Split Tube Furnace
