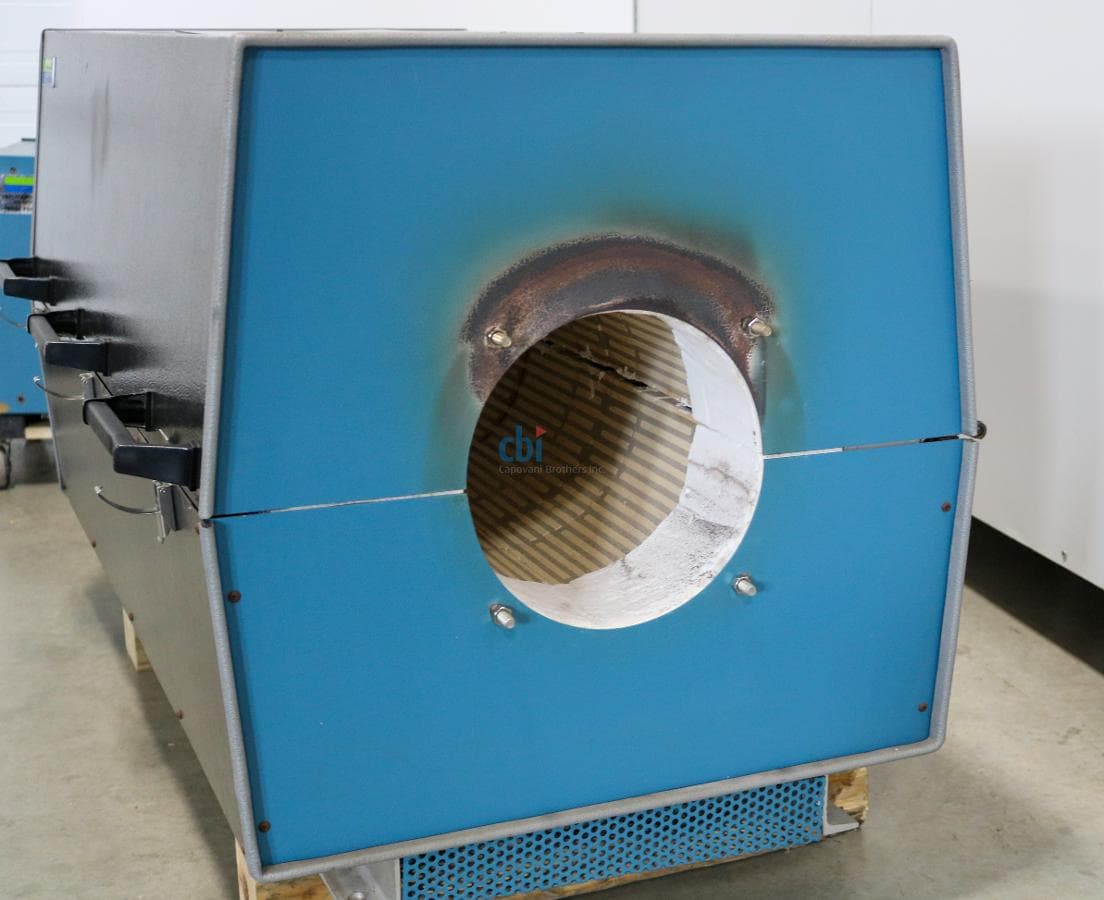

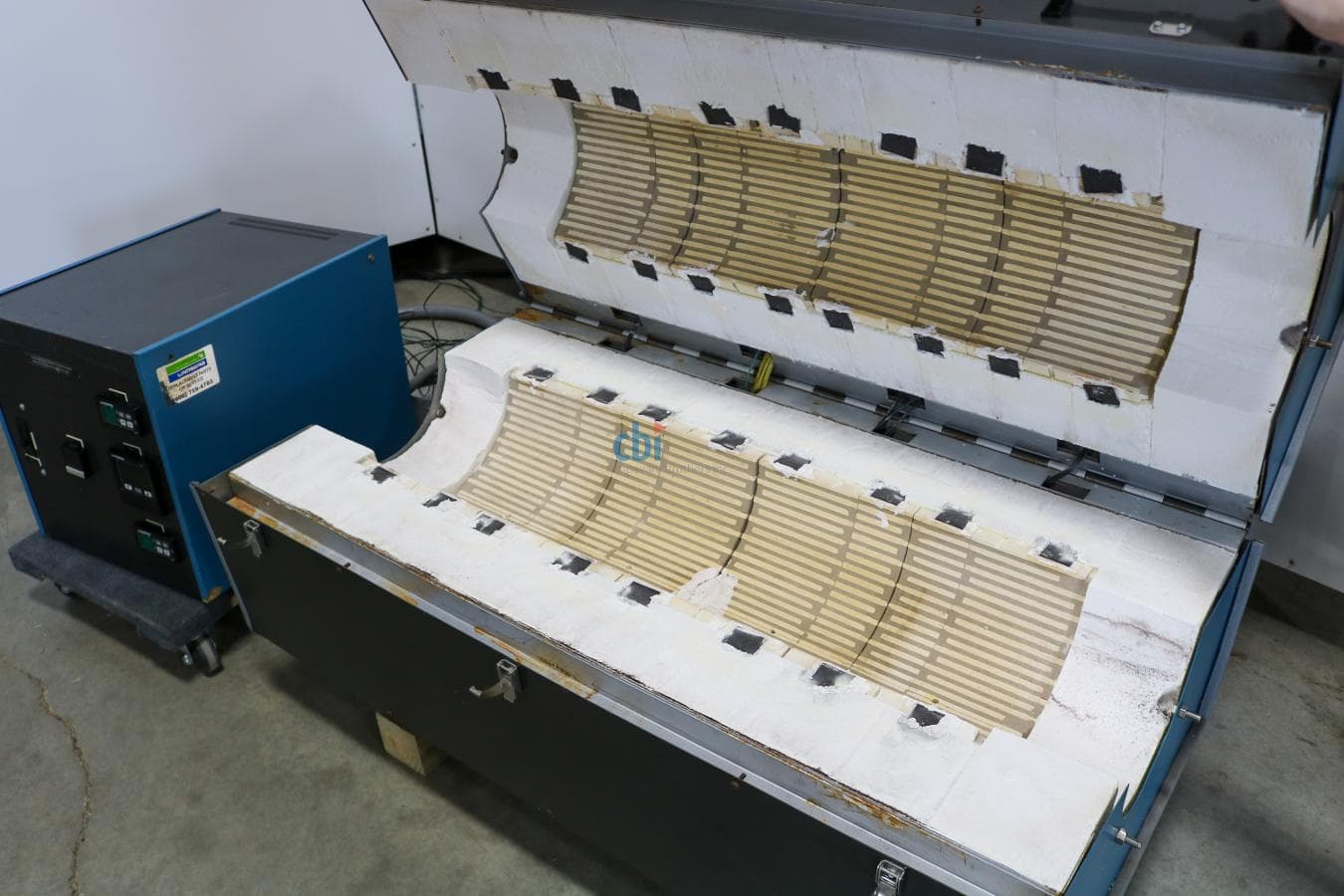

Lindberg 54S977M-1200 Tube Furnace

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Lindberg
MPN
54S977M-1200
SKU
215562
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Optional Glass Open End Process Tube Available

Dimensions: 66"L x 9" ID x 9-7/16" OD. with Steel Collars

Inquire for pricing and photos.

22,500 Watts

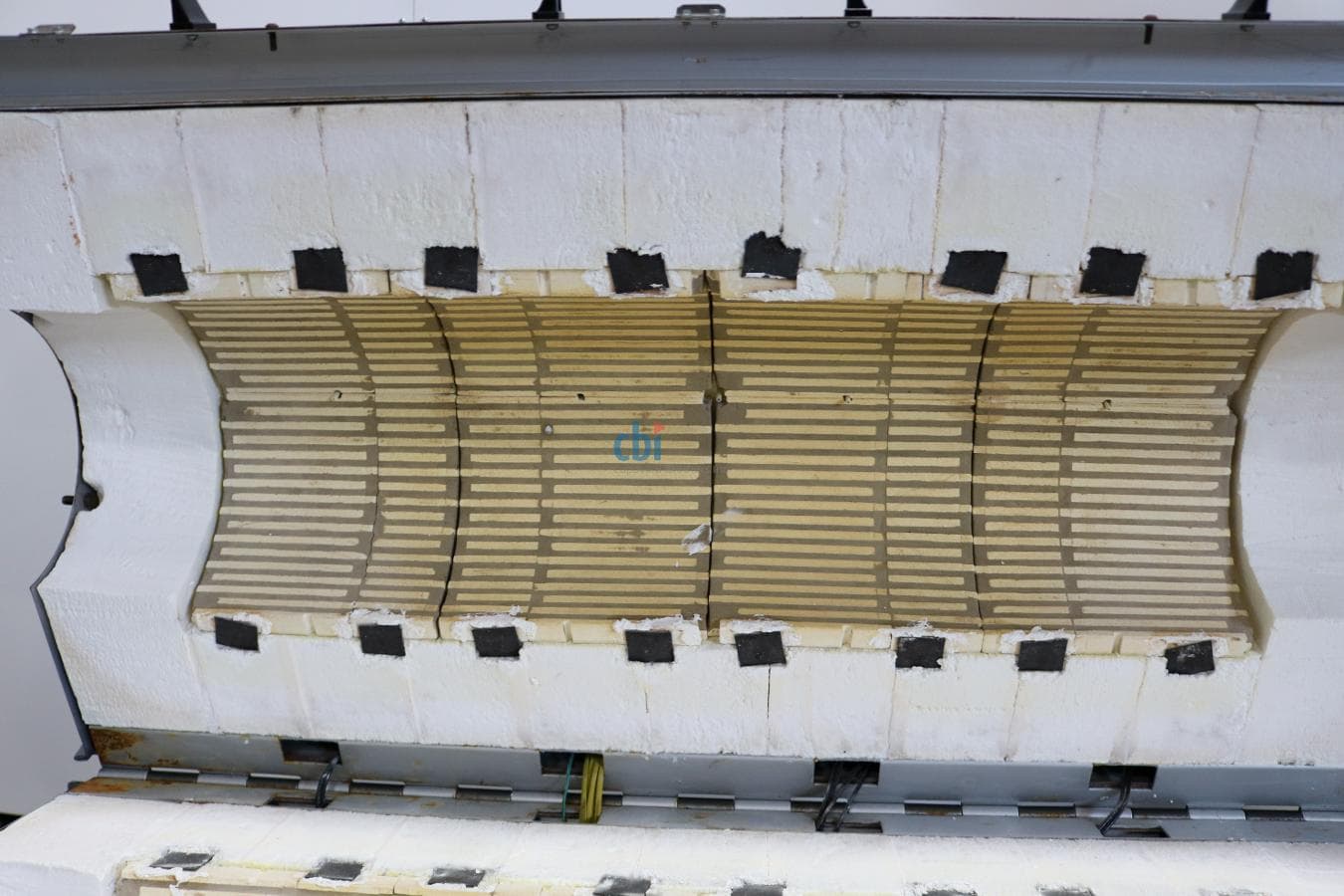

Hot Zone: 36"

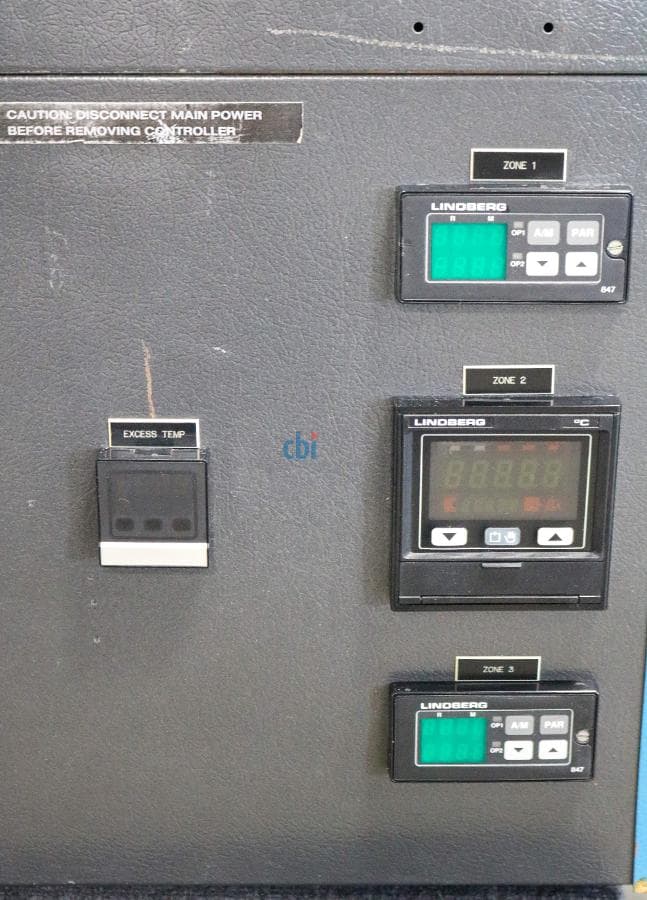

Controller: Model: 58474-PB

(2) Eurotherm Model 847 slave controllers

(1) Eurotherm 818P4 programmable controller, 4 programs, 16 segments if fixed ramp dwell sequence.

Furnace dimensions: 48"L x 30"W x 28"H

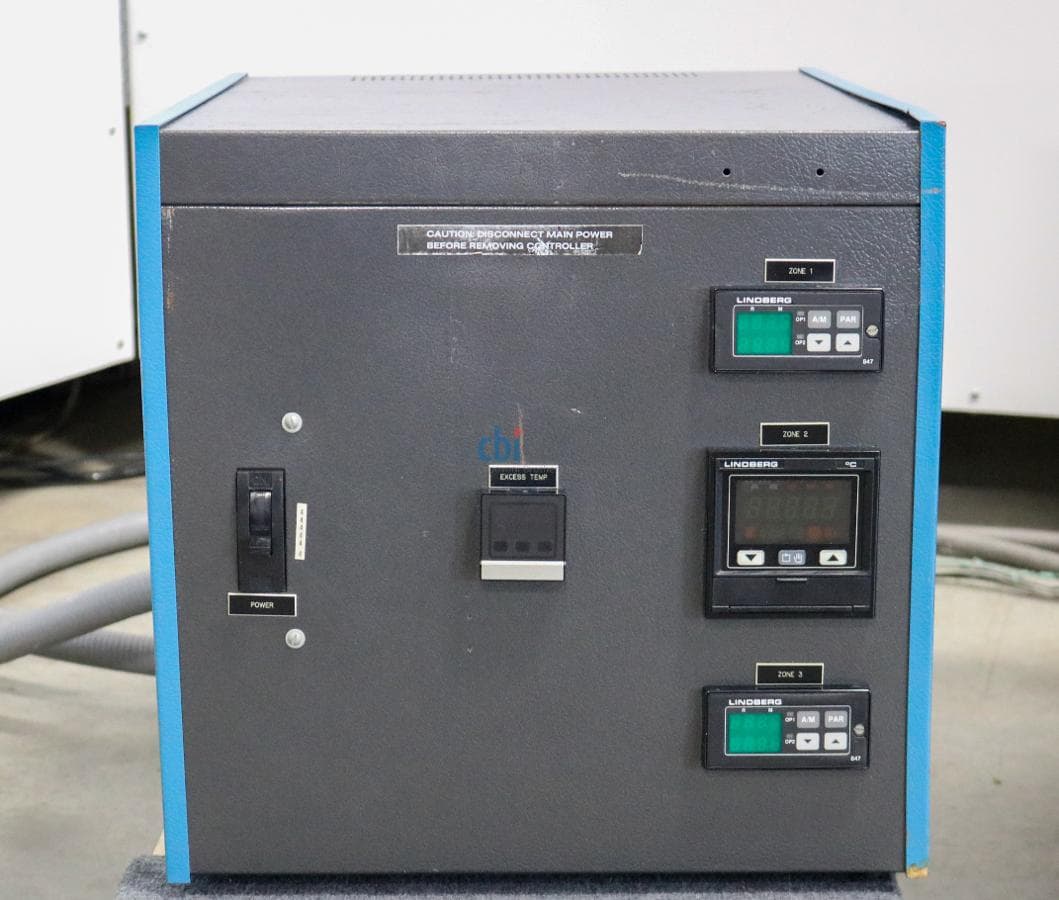

Controller dimensions: 24"L x 18"W x 18"H

Technical specifications

Maximum Temperature1,200 ºC (2,192 ºF, 1,473 ºK)
External CoolingAir Cooled
Tube DimensionsDiameter: 9.00 in (22.86 cm) Length: 36.00 in (91.44 cm)
Thermocouple TypeType K
Number of Gas InputsNone
Power Requirements240 V 60 Hz 1 Phase
Weight526 lb (239 kg)

Heat/Cool Controls

Control TypeProgrammable
Overtemperature ProtectionYES
Controller Manufacturer/ModelEurotherm 818P4
Number of Control Zones3

Condition & testing notes

Previously in service and offered for secondary-market resale.
