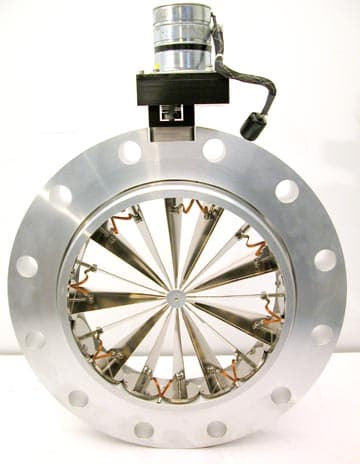

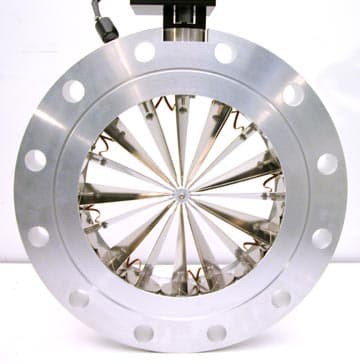

Meivac Cryo Cooled Throttle Valve CVQ 10 ASA USM
$2,800.00Working & warranted
- Condition
- New (open box) See details
- Brand
- Meivac Inc.
- MPN
- CVQ-10-ASA-U-SM
- SKU
- 18710
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
The CVQ selectively pumps the condensables on the surface of cryogenically cooled vanes while throttling the process gas at a differential pumping ratio of 20 to 3000 l/sec (process gas to condensables).

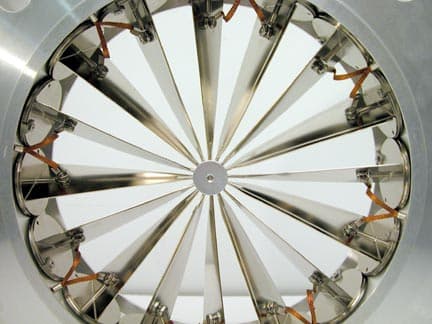

Stainless steel vanes
Flange I.D.: 9.868"
Flange O.D.: 16"
Bolt circle: 14.25"
12 bolts at 1" diameter
May be controlled by
Meivac model 2252 controller
MKS model 252 and or 651 controller
Technical specifications
| Valve Actuation | Electric |
| Flange Type | ASA |
| Flange Size | 254.00 mm (10.00 in) |
| Valve Material | Aluminum |
Exterior Dimensions
| Width | 16.000 in (40.6 cm) |
| Depth | 2.000 in (5.1 cm) |
Condition & testing notes
Unused inventory opened for inspection or photography.
