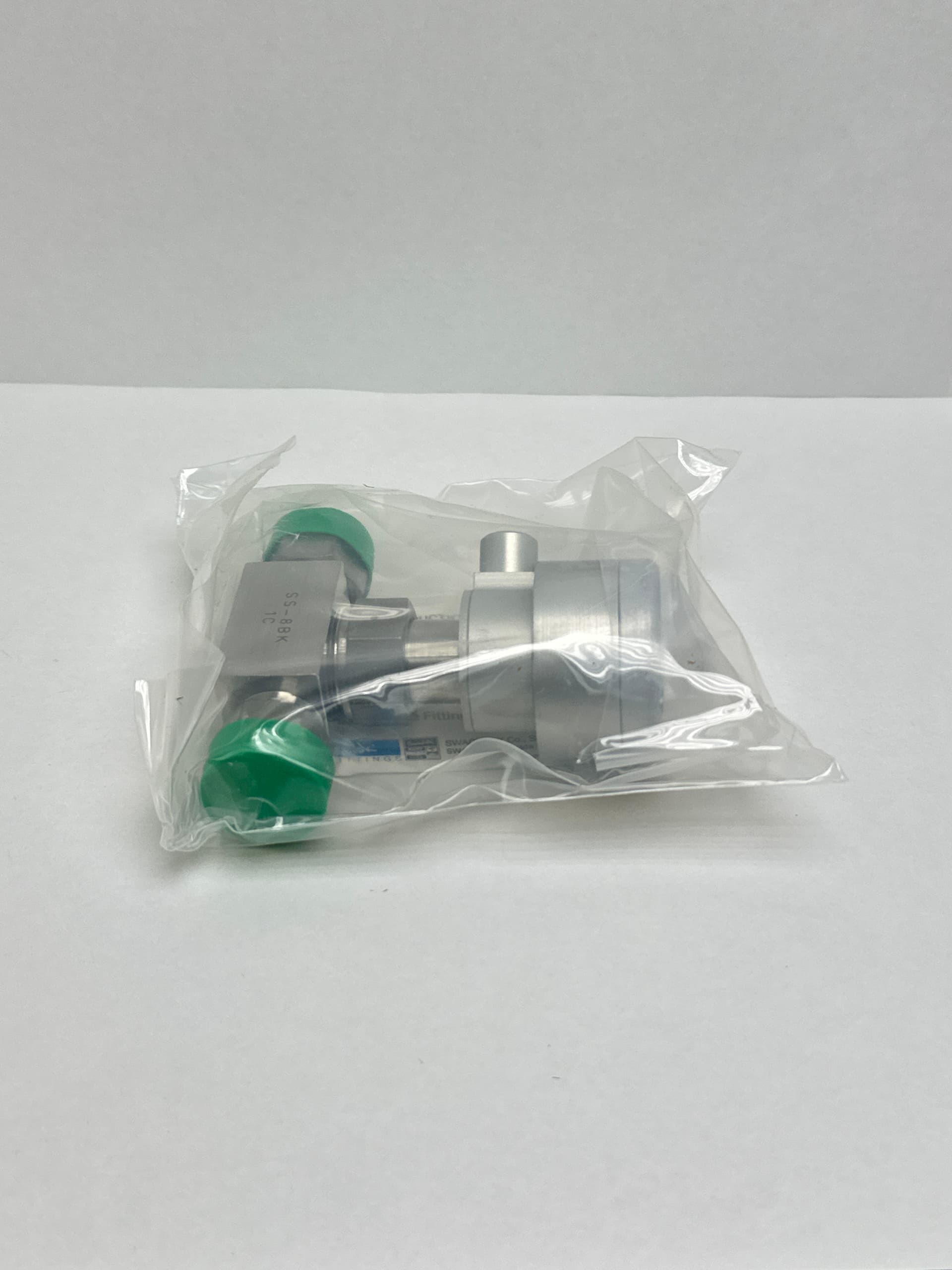

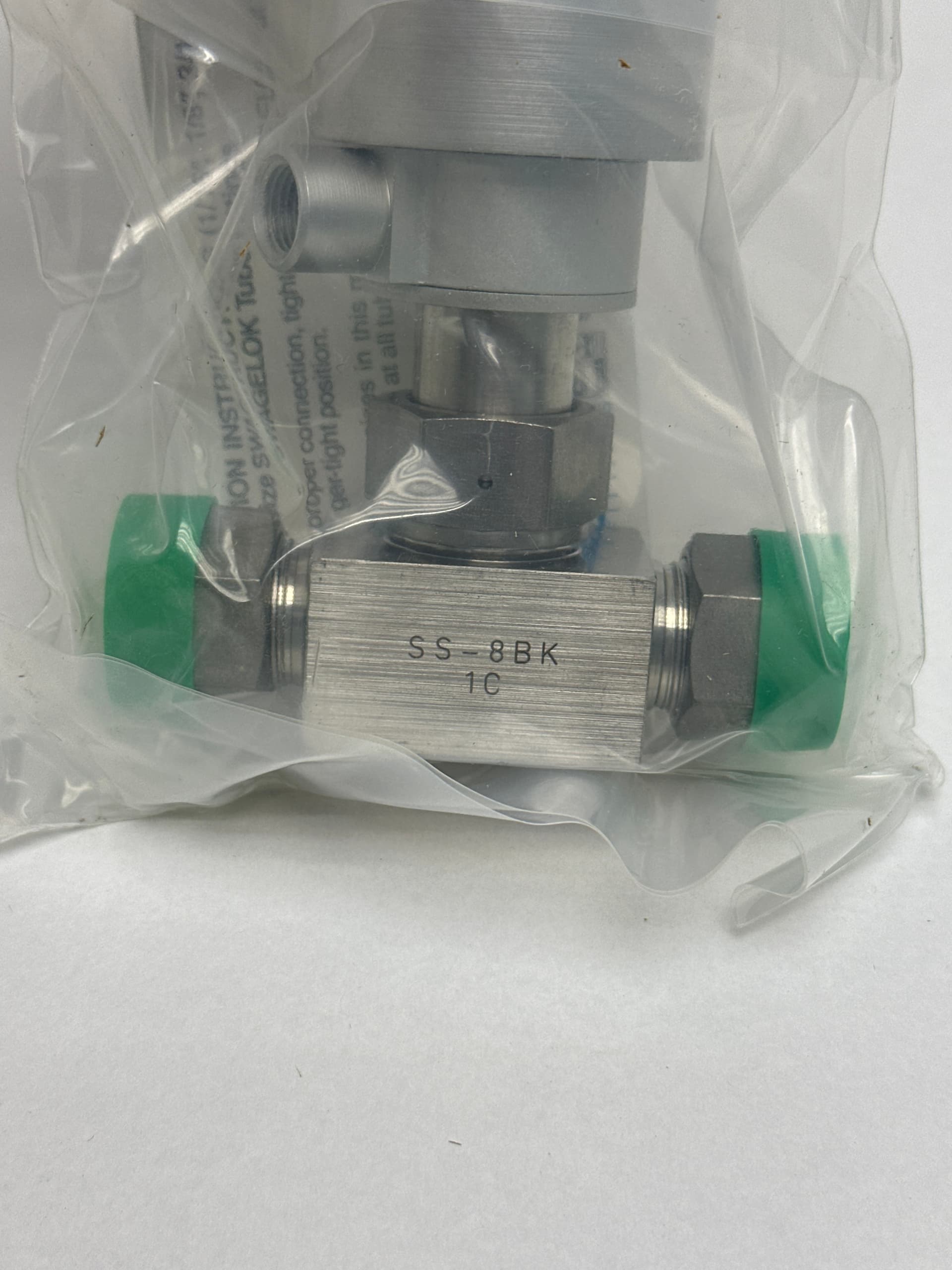

Nupro Company SS-8BK-1C Bellows-Sealed Valve, 316 SS, 1/2 in, NC
$375.0030 day return
- Condition
- Brand new See details
- Brand
- Nupro Company
- MPN
- SS-8BK-1C
- SKU
- CID1425
- Availability
- 6 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

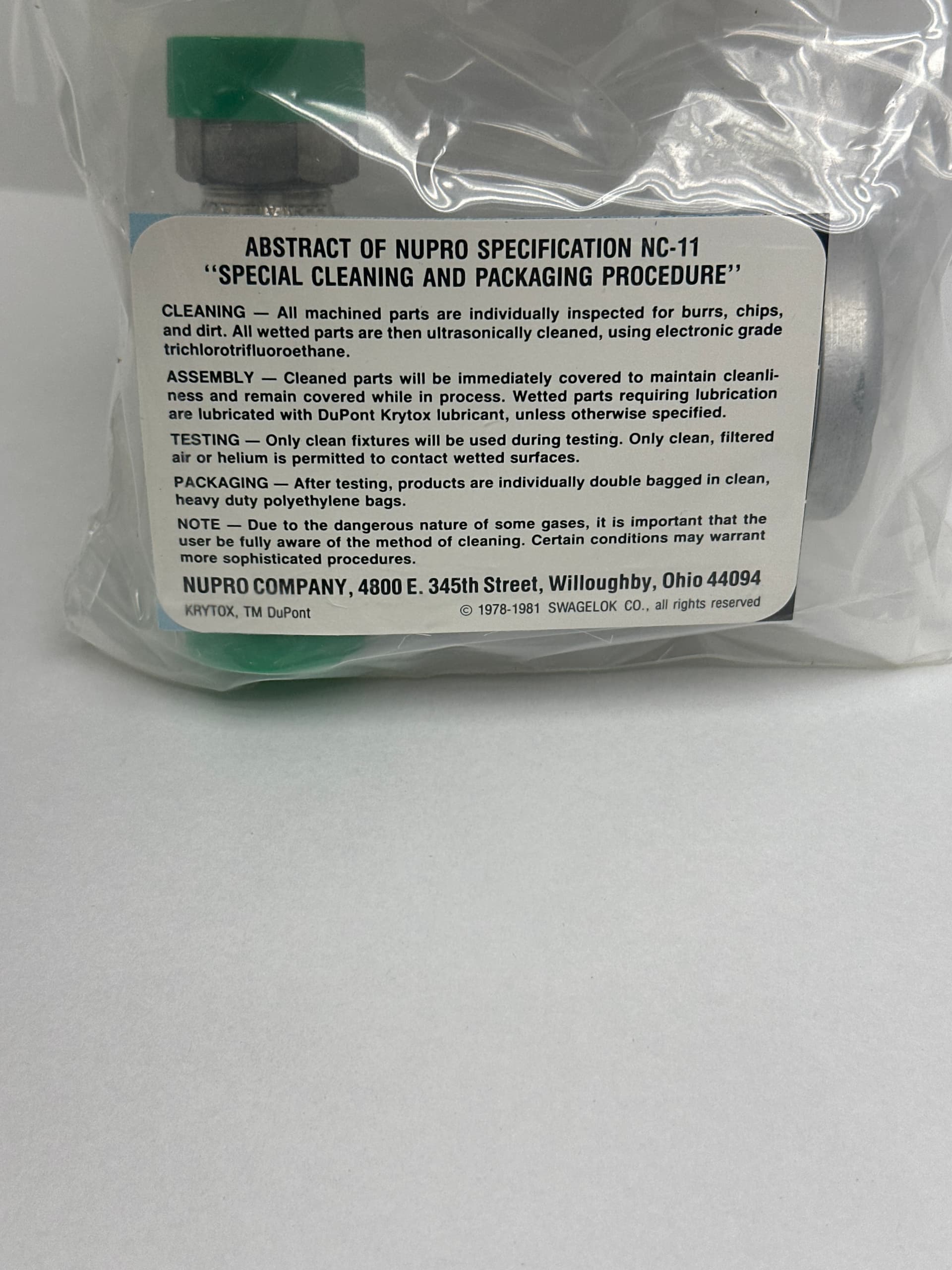

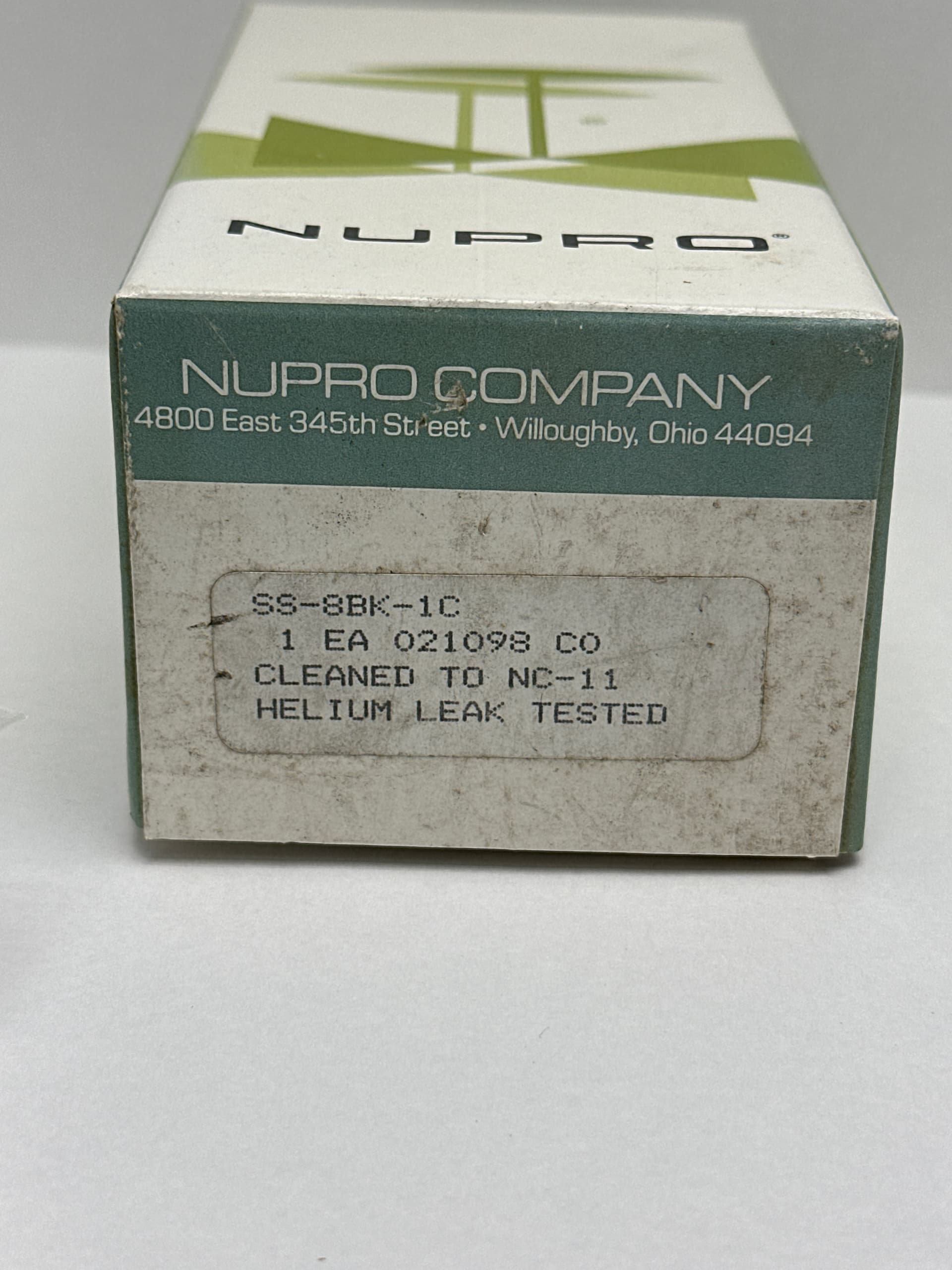

316 SS body, 1/2 in. Swagelok tube fittings, Cv 0.96, -20 to 200 F, 125 PSIG at 100 F, normally closed pneumatic actuator. Cleaned to NC-11; helium leak tested. NuPro is a Swagelok legacy brand now consolidated under Swagelok.
Technical specifications
| CLEANED TO | NC-11 |
| HELIUM LEAK | TESTED |
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok Tube Fitting |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Swagelok Tube Fitting |
| CV Maximum | 0.96 |
| Flow Pattern | Straight (2-way) |
| Actuator Operation Mode | Normally Closed Spring Return |
| Actuator Type | Pneumatic |
| Bellows Material | 321 Stainless Steel |
| Stem Tip Material | PCTFE |
| Stem Type | Conical |
| Minimum Temperature, °F (°C) | -20 (-28) |
| Maximum Temperature, °F (°C) | 200 (93) |
| Room Temperature Pressure Rating | 125 PSIG @ 100°F /8.6 BAR @ 37°C |
| Max Temperature Pressure Rating | 200°F @ 125 PSIG /93°C @ 8.6 BAR |
Condition & testing notes

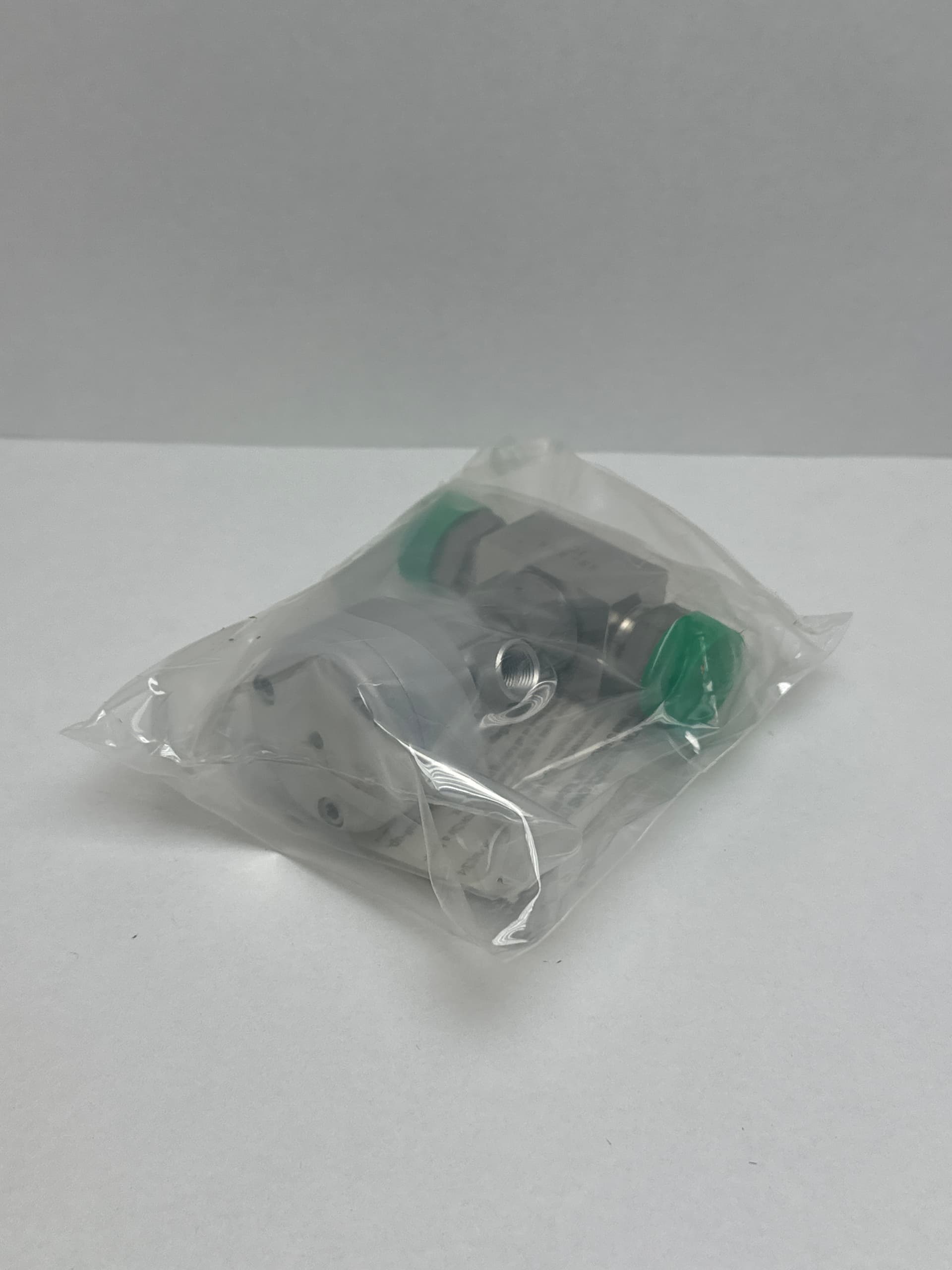

Never used inventory in brand new condition. The item is from old surplus stock.
