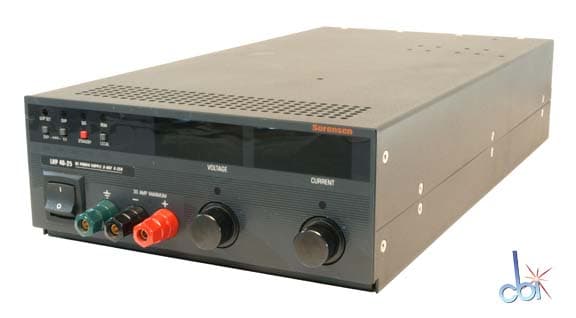

Sorensen Ametek Elgar LHP 40-25 DC Power Supply
$995.00Working & warranted
- Condition
- Used See details
- Brand
- Sorensen
- MPN
- LHP 40-25
- SKU
- 92642
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Adjustable over voltage protection.

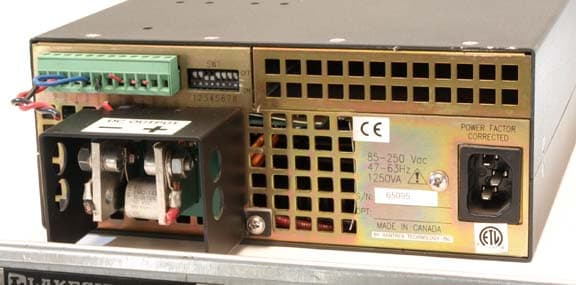

Power requirements: 85-250VAC 47-63Hz 1250VA
Technical specifications
| Maximum Output Voltage | 40.00 Volts |
| Maximum Output Current | 25.00 Amps |
| Maximum Output Power | 1.00 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Ripple | 5 mV RMS |
| Panel Meters | Digital |
| Control Type | Digital Setpoint |
| External Cooling | Air Cooled |
| Power Requirements | 1 Phase |
| CE Marked | YES |
| Weight | 13 lb (6 kg) |
Exterior Dimensions
| Width | 8.500 in (21.6 cm) |
| Depth | 19.500 in (49.5 cm) |
| Height | 3.500 in (8.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
