You may not receive the exact item shown in photos, but all items are in similar condition unless otherwise specified.

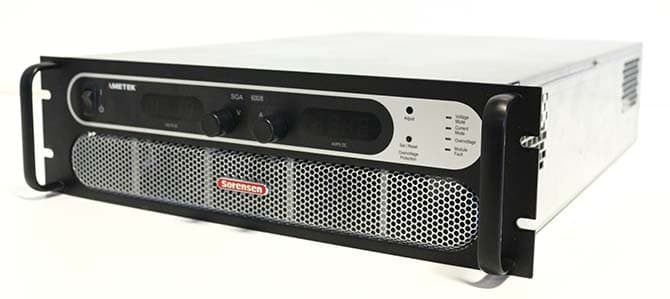

Sorensen Ametek SGA 600X8C DC Power Supply
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Sorensen
- MPN
- SGA600X8C-0AAA(B)
- SKU
- 185539
- Availability
- 2 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
This unit has no remote control option, it can be controlled from the front panel only. See configuration decode from the model number in the manual SGA_Series_Op_Manual_M550129-01_RevAD.pdf linked below, page 1-2 (PDF page 14)
Power Requirements: 208-220 V 21.0 A 50/60 Hz 3 Phase
Manufacturer web page https://www.powerandtest.com/power/dc-power-supplies/sg-series
Technical specifications
| Maximum Output Voltage | 600.00 Volts |
| Maximum Output Current | 8.00 Amps |
| Maximum Output Power | 5.00 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Ripple | 40mV |
| Panel Meters | Digital |
| Interface | RS 232 |
| Interface 2 | I/O Port |
| Control Type | Programmable |
| External Cooling | Forced Air Cooled |
| CE Marked | YES |
| Weight | 80 lb (36 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 25.120 in (63.8 cm) |
| Height | 5.250 in (13.3 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
