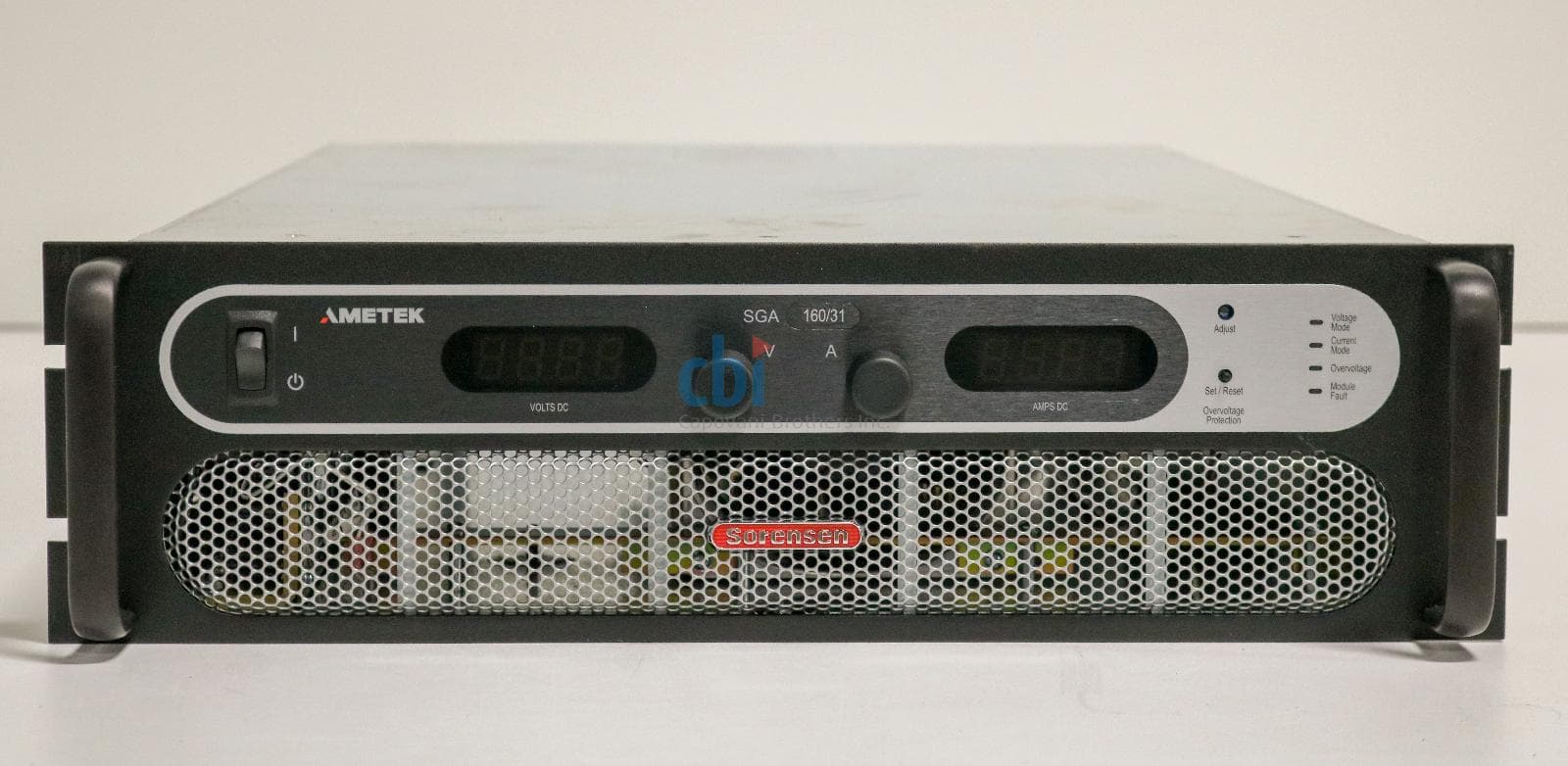

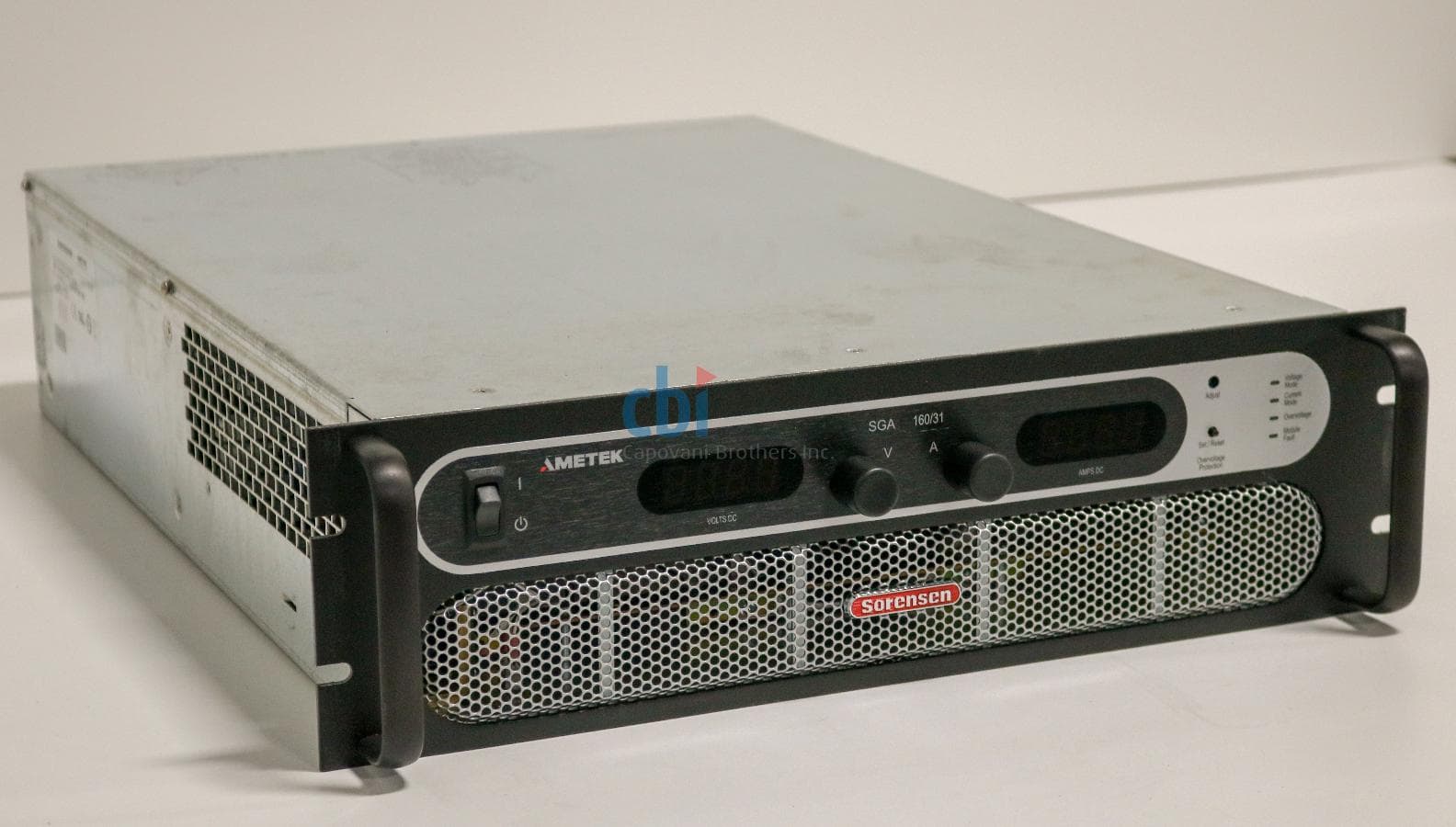

Sorensen Ametek SGA160X31D-0AAAR DC Power Supply
Quoted on requestWorking & warranted
- Condition
- Brand new See details
- Brand
- Sorensen
- MPN
- SGA160X31D-0AAAAR
- SKU
- 202874
- Availability
- 11 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

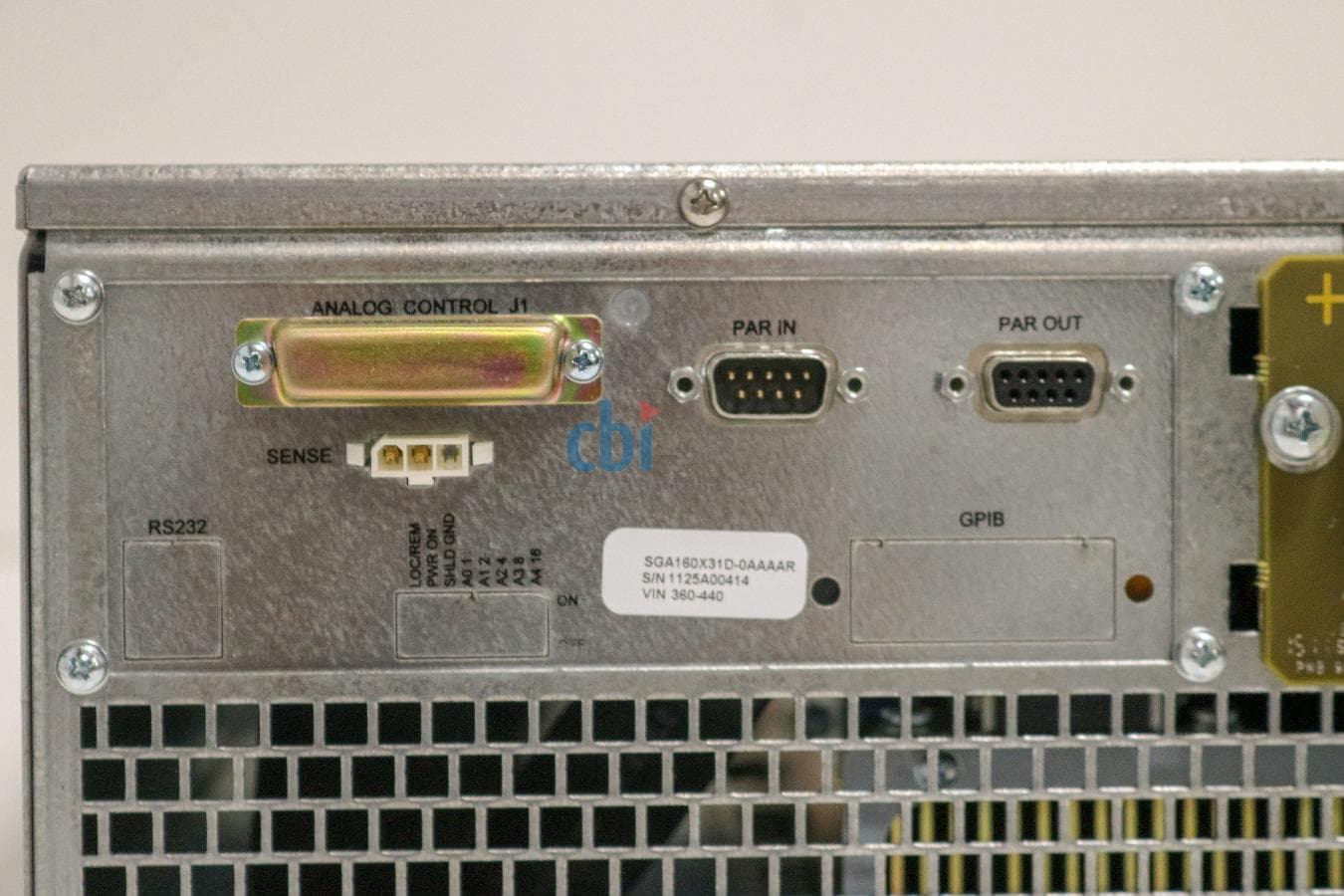

This unit has no remote control option, it can be controlled from the front panel only. See configuration decode from the model number in the specifications Sorensen SGA Series Specifications.pdf linked below, last page.
For European 3 phase 380/400VAC input power only, will be damaged by 480VAC
Input: 342-440 V, 14 A/PH, 50/60 Hz, 3 Phase, 5.8 kW
Output: 0-160 V, 0-31 A, 5 kW
Technical specifications
| Maximum Output Voltage | 160.00 Volts |
| Maximum Output Current | 31.00 Amps |
| Maximum Output Power | 4.80 kW |
| Regulation Modes | Constant Current Constant Voltage Constant Power Constant Resistance |
| Panel Meters | Digital |
| External Cooling | Air Cooled |
| CE Marked | YES |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 26.400 in (67.1 cm) |
| Height | 5.250 in (13.3 cm) |
Condition & testing notes
Never used inventory in brand new condition.
