TDK-Lambda GEN 30-25 DC Power Supply
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- TDK-Lambda
- MPN
- GEN 30-25
- SKU
- 151594
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
P/N 00507129 Rev L

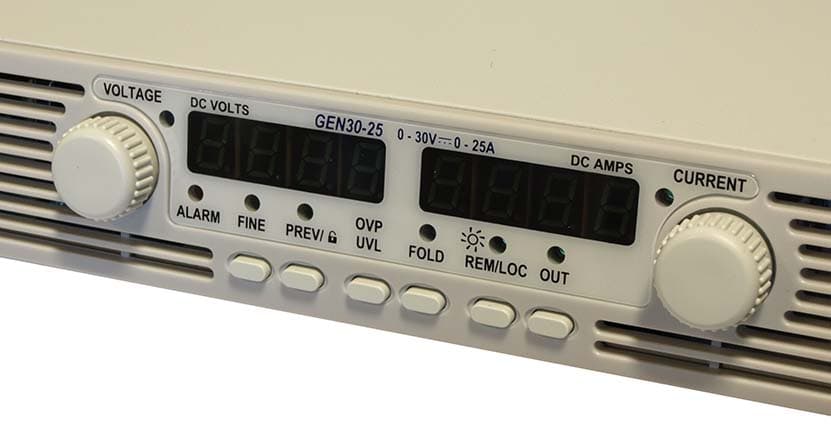

Control via front panel, the serial communication port or analog remote port
The following parameters can be programmed /
monitored via the serial communication port
1. Output Voltage setting.
2. Output Current setting.
3. Output Voltage measurement.
4. Output On/Off control.
5. Output Current measurement.
6. Foldback protection setting
7. Over-voltage protection setting and readback.
8. Under-Voltage limit setting and readback.
9. Power-supply start up mode (Auto-restart or Safe-start mode).
Manual is here: https://product.tdk.com/info/en/products/power/tec_data/ps_system_genesys.html
Technical specifications
| Maximum Output Voltage | 30.00 Volts |
| Maximum Output Current | 25.00 Amps |
| Maximum Output Power | 0.75 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Ripple | 8 |
| Panel Meters | Digital |
| Interface | RS 485 |
| Interface 2 | RS 232 |
| Control Type | Programmable |
| External Cooling | Forced Air Cooled |
| Power Requirements | 100-240 V 9.5 A 50/60 Hz 1 Phase |
| Weight | 15 lb (7 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 19.000 in (48.3 cm) |
| Height | 1.750 in (4.4 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
