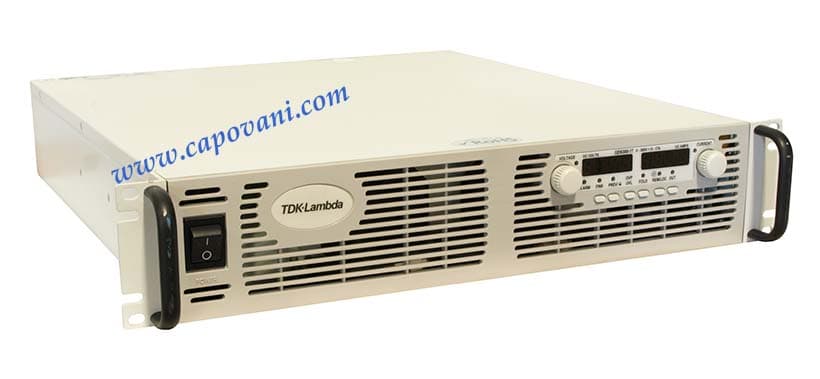

TDK-Lambda GEN 300-17 Power Supply
- Condition
- Used See details
- Brand
- TDK-Lambda
- MPN
- GEN 300-17IS510
- SKU
- 152464
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

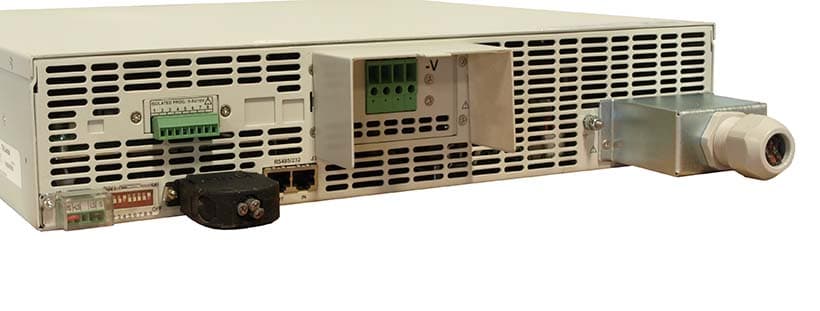

Has ISOLATED ANALOG PROGRAMMING OPTION IS510, can be removed, REQUEST removal when ordering if you need to use all J1 pins!
When the Isolated Analog Option is installed, do not apply any signals to the
non-isolated VPGM and IPGM (J1-9 and J1-10) pins. All other J1 features
may be used normally. Refer to Section 4.5 for a description of J1 features.

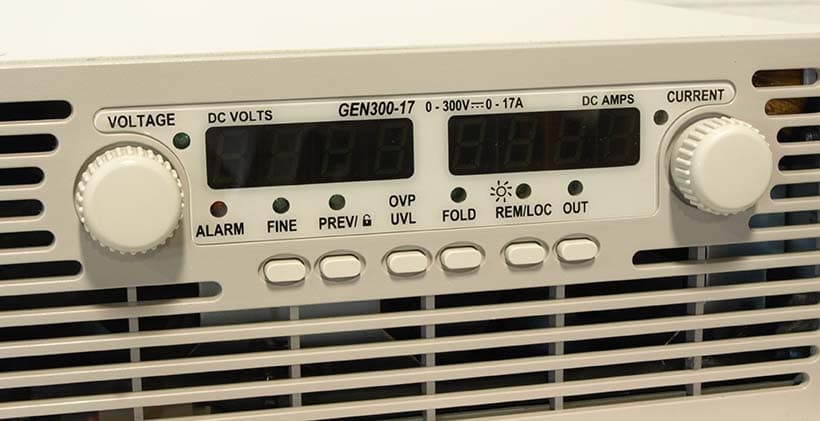

Control via front panel, the serial communication port or remote analog port
Part number:0051073
The following parameters can be programmed /
monitored via the serial communication port
1. Output Voltage setting.
2. Output Current setting.
3. Output Voltage measurement.
4. Output On/Off control.
5. Output Current measurement.
6. Foldback protection setting
7. Over-voltage protection setting and readback.
8. Under-Voltage limit setting and readback.
9. Power-supply start up mode (Auto-restart or Safe-start mode).
Manual is here: https://product.tdk.com/info/en/products/power/tec_data/ps_system_genesys.html
Technical specifications
| Maximum Output Voltage | 300.00 Volts |
| Maximum Output Current | 17.00 Amps |
| Maximum Output Power | 5.00 kW |
| Regulation Modes | Constant Current Constant Voltage |
| Panel Meters | Digital |
| Interface | RS 485 |
| Interface 2 | RS 232 |
| Control Type | Programmable |
| External Cooling | Forced Air Cooled |
| Power Requirements | 190-250 V 18.0 A 50/60 Hz 3 Phase |
| CE Marked | YES |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 22.000 in (55.9 cm) |
| Height | 3.500 in (8.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
