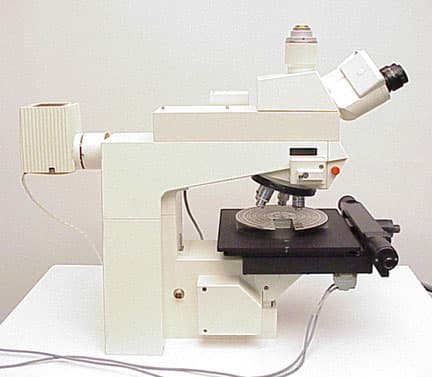

Zeiss Axiotron Upright Light Microscope
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Zeiss
- MPN
- AXIOTRON
- SKU
- 10393
- Availability
- 2 in stock
Quantity
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

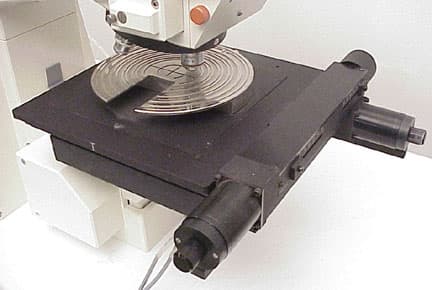

Motorized stages, X-Y and Z
Vacuum rotary stage
Technical specifications
| Microscope Configuration | Brightfield |
| Illumination Type | Reflected Light |
| Binocular Angle | 45° |
| Trinocular/Phototube Provided | YES |
| Magnification Changer | 1.25-1.6-2-2.5 |
| Motorized Nosepiece | YES |

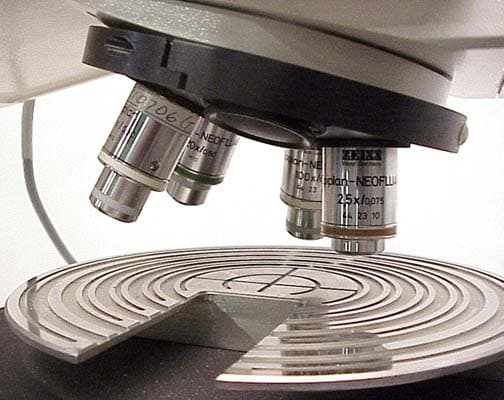

| Multiple Objectives Models | 2.5X/0.075 20X/0.50 100X/0.90 200X/0.90 |
| Infinity Corrected Objectives | YES |
| Illumination Power | Volts: 12 Watts: 100 |
| Power Supply Included | YES |
| Stage Type | Circular |
| Stage Area | Length: 254 mm (10.000 in) Width: 254.0 mm (10.000 in) |
| X-Y-Z Stage Travel | X: 153 mm (6.024 in) Y : 153 mm (6.024 in) |
| Rotary Stage Diameter | 153 mm (6.024 in) |
| Power Requirements | 115 V 50/60 Hz 1 Phase |
| Weight | 119 lb (54 kg) |
Eyepieces
| Magnification | 10 X |
| Field Number | 25 mm |
| Focusing | YES |
Exterior Dimensions
| Width | 15.000 in (38.1 cm) |
| Depth | 11.811 in (30.0 cm) |
| Height | 24.000 in (61.0 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
