Item ID: 179528

Offered 1 Offered at $ 1,999.00

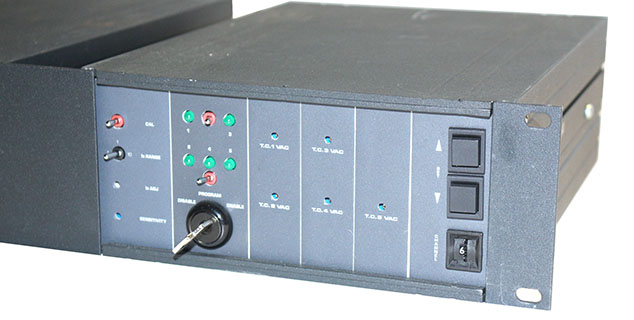

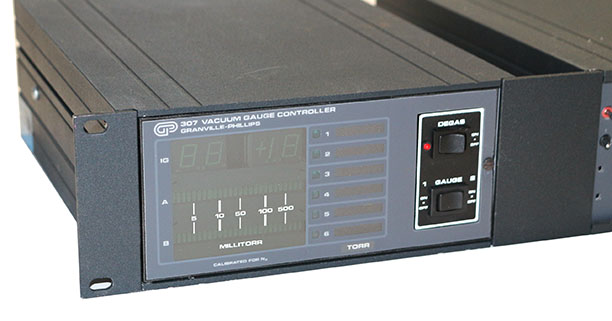

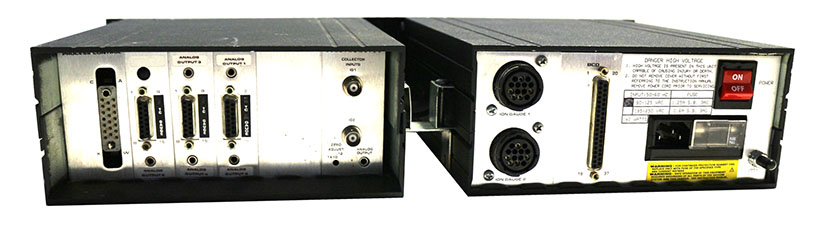

Dual Ion/ Five Thermocouple Gauge Controller

Granville Phillips 307109

In addition to this Granville Phillips 307109, Capovani Brothers Inc stocks a variety of used multiple gauge controllers. Typical manufacturers include Edwards Vacuum, Granville Phillips, HPS, Kurt Lesker, Leybold, MKS Instruments Inc., and Agilent Varian.

To view our complete stock visit our Multiple Gauge Controllers category.

Learn about our Vacuum Gauge Controllers Refurbishment and Functional Testing Procedures

This used vacuum gauge controller and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price $ 1,999.00
Number of Units 1
Manufacturer Granville Phil
Model 307109
Description Dual Ion/Five Thermocouple Gauge Controller/Process
Gauge Types Controlled Ion; Thermocouple
Cables Included No

Cable between controller and the power supply included.

Gauges and gauge cables are not included, inquire, please.

Ion gauge cables see items 6799, 179524, 209733

TC gauge compatible types: G-P 270006, Comptech TVT-6000, or Teledyne-Hastings DV-6M, DV-6R, DV-36, DV-20.

Other Information
  • Sequential Ion Gauge readout 1E-1 to 1E-9 Torr
  • Thermocouple bar graph readout 1E-3 to 1 Torr
  • 6 relay process control
  • BCD interface for gauge pressure, status and control
  • Analog pressure output

Dimensions and weight:

Control Unit

  • Width 241 mm 9.5 in
  • Height 89 mm (3.5 in.)
  • Depth 356 mm (14 in.) includes 76 mm (3 in.) for connectors and cables
  • Weight 3 kg (6.5 lb.)

Power Unit

  • Width 203 mm (8 in.)
  • Height 89 mm (3.5 in.)
  • Depth 330 mm (13 in.) includes 89 mm (3.5 in.) for connectors and cables
  • Weight 4 kg (8.5 lb.)
Power Requirements 115/ 230 V     1.0 A     0.5 A(2)     50/60 Hz     1¬†Phase
