FULL DESCRIPTION of Item 179529

in Multiple Gauge Controllers
Item ID: 179529

Offered 6 Offered at $ 1,200.00 (each)


GRANVILLE PHILLIPS VACUUM GAUGE CONTROLLER

Dual Ion/Two Convectron Gauge Controller

Capable of controlling two ion gauges and two convectron gauges

Provides power for two thermocouple gauges, outputs analog signals with no pressure indication on display

Granville Phillips 307

Refurbished

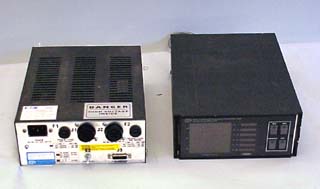

Representative Photo



In addition to this Granville Phillips 307212, 307213 or 307001, Capovani Brothers Inc stocks a variety of used multiple gauge controllers. Typical manufacturers include Edwards Vacuum, Granville Phillips, HPS, Kurt Lesker, Leybold, MKS Instruments Inc., and Agilent Varian.

To view our complete stock visit our Multiple Gauge Controllers category.

Learn about our Vacuum Gauge Controllers Refurbishment and Functional Testing Procedures

This used vacuum gauge controller and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

 GRANVILLE PHILLIPS VACUUM GAUGE CONTROLLER

Location: Scotia, New York, United States
Unit Price $ 1,200.00 (each)
Number of Units 6
Manufacturer Granville Phil
Model 307212, 307213 or 307001
Description Dual Ion/Two Convectron Gauge Controller
Gauge Types Controlled Ion (Bayard Alpert); Convectron; Thermocouple
Accessories
  • Power cord
  • Interconnect cable between the power supply and controller
  • Optional 19" rack mounting hardware, can be added if available, +$50
  • Optional I/O connector, can be added if available, +$100
  • Optional 307019 RS232 board, can be added if available, +$200
  • Optional 6 channel process control board, can be added if available, +$450

Gauges and gauge cables are not included, inquire, please.

Ion gauge cables see items 6799, 179524, 209733

Other Information

Click here for the manual

Ion gauges- sequential operation, Convectron gauges- simultaneous operation

  • 307015 standard non-UHV electrometer
  • 307013 option installed for dual convectron gauges
  • 307060 option installed, provides power for two thermocouple gauges, outputs analog signals with no pressure indication on display
  • 307005 resistive degas option
  • 307006 option for sequential operation of second ion gauge
  • Inquire for availability of remote I/O board

Can be converted to 230VAC operation, request when ordering


Dimensions and weight:

Control Unit

  • Width 241 mm 9.5 in
  • Height 89 mm (3.5 in.)
  • Depth 356 mm (14 in.) includes 76 mm (3 in.) for connectors and cables
  • Weight 3 kg (6.5 lb.)


Power Unit

  • Width 203 mm (8 in.)
  • Height 89 mm (3.5 in.)
  • Depth 330 mm (13 in.) includes 89 mm (3.5 in.) for connectors and cables
  • Weight 4 kg (8.5 lb.)
Power Requirements 100-127 V     3.0 A     50/60 Hz
