FULL DESCRIPTION of Item 189241

in Barrel/Box Plasma Etchers
Item ID: 189241

Offered 1 Offered at $ 22,000.00

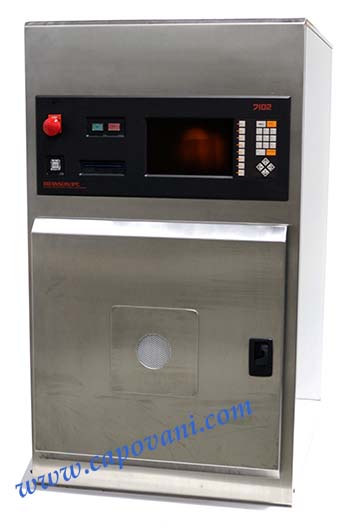

BRANSON TEPLA PVA PLASMA ETCHER 1000 WATT

Plasma Etcher

In addition to this Branson/IPC 7102, Capovani Brothers Inc stocks a wide range of used and refurbished plasma etching equipment including RIE, ICP and DRIE plasma etch tools. Typical manufacturers include Applied Materials, Branson/IPC, LAM Research, March Instruments, Oxford Instruments, Plasma-Therm, Surface Technology Systems, Tegal, Trion Technology

To view our complete stock of used plasma etch tools visit our Plasma Etch Equipment categories

This used plasma etching tool and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

BRANSON TEPLA PVA PLASMA ETCHER 1000 WATT

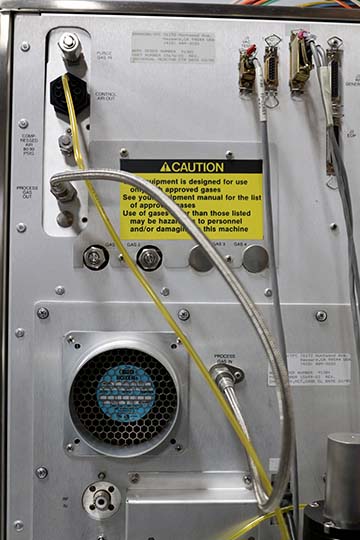

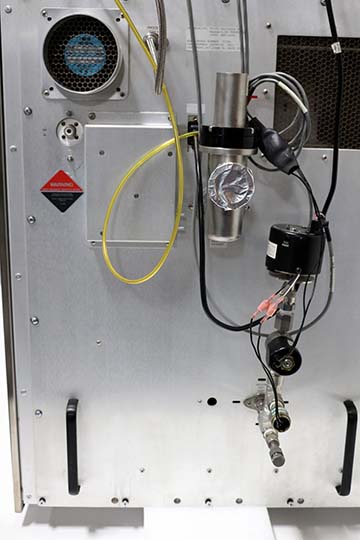

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price $ 22,000.00
Number of Units 1
Manufacturer Branson/IPC
Model 7102
Etcher Type Box
Rated Power Output 1000 Watts
Reactor Center Rectangular
Reactor Center Size
  Width 14.75  in  (37.46 cm)
  Depth 30.00  in  (76.20 cm)
  Height 14.75  in  (37.46 cm)
Reactor Center Material Aluminum
Number of Gas Inputs Two Gas
Automatching Network Included Yes
Vacuum Pump Included No

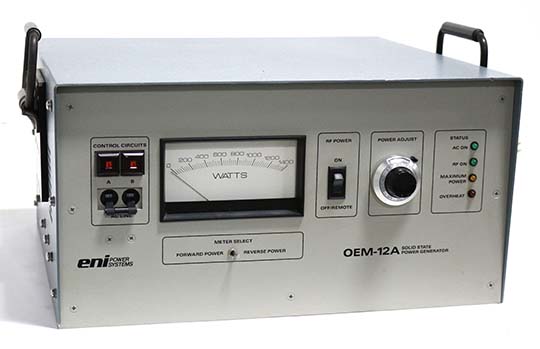

RF Generator Model ENI Power Systems--Model OEM-12AB-3
Panel Meters Digital
External Cooling Water Cooled
Accessories

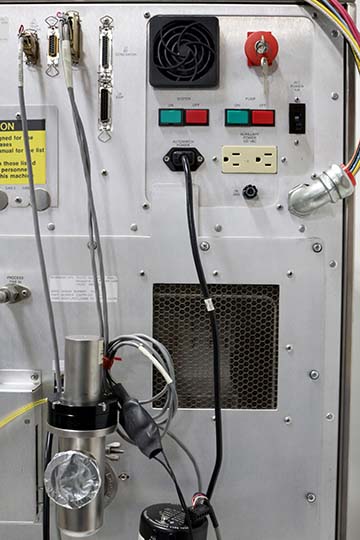

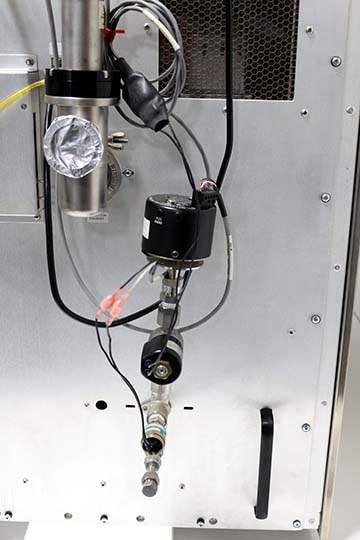

MKS pressure transducer--Type 122A
Seven shelf insert (option), inquire about price and availability
Chamber Part No. - 15699-03--Manufactured 1990
Controller Part No. - 15676-01--Manufactured 1990

Other Information

RF Generator:

  • 250 V, 20 A, 1 phase
  • Exterior dimensions: 17"W x 16.5"D x 8.25"H

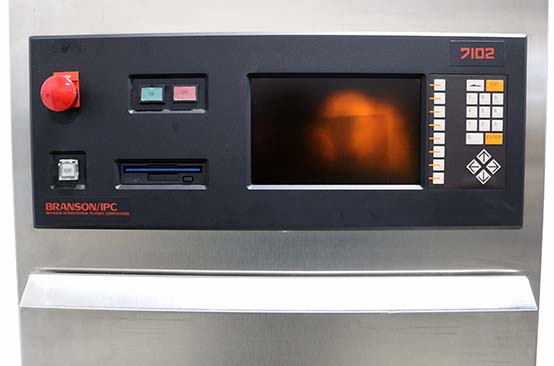

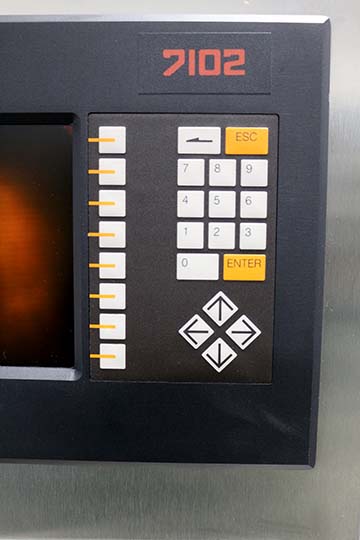

    Front panel digital display has CRT display
    Vacuum connection: KF 40

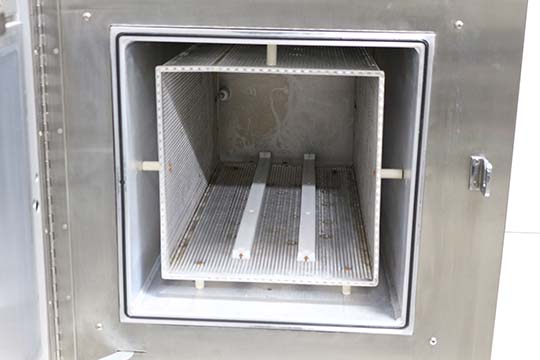

    Etch tunnel dimensions: 11.5"W x 26"D x 11.5"H

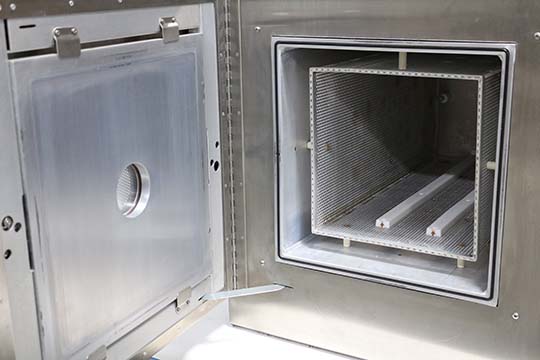

    3" diameter view port in door

Exterior Dimensions
  Width 25.000  in  (63.5 cm)
  Depth 44.000  in  (111.8 cm)
  Height 44.000  in  (111.8 cm)
Weight 700  lb  (318 kg)
