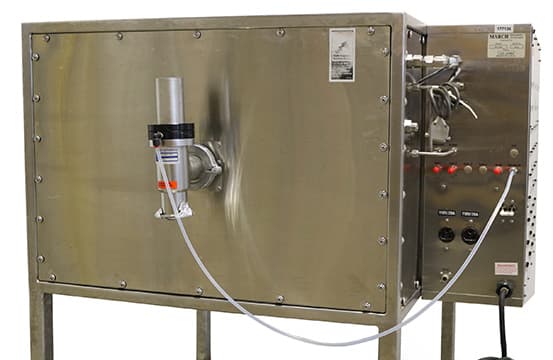

March Nordson PX 2400 Plasma Etcher Stripper

Quoted on requestWorking & warranted

Brand: March Instruments
MPN: PX-2400
SKU: 177136
Availability: 1 in stock

Ask a question?

Item description

Door with viewing window

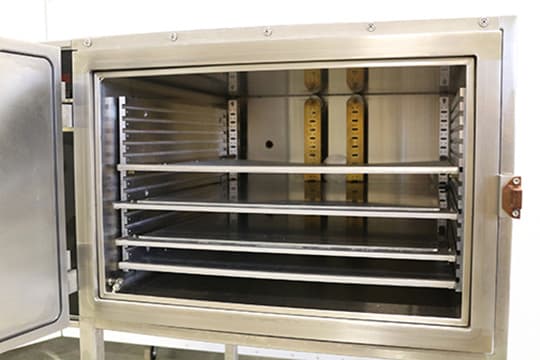

Stainless Steel chamber

Electrodes -- 14 Adjustable postions

(2) Powered, Work area 24" x 24"

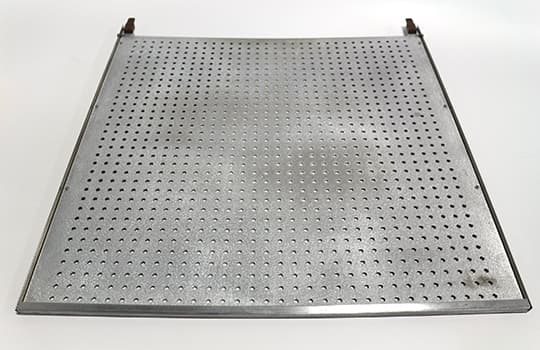

(1) Grounded, Perforated, Work area 24" x 24"

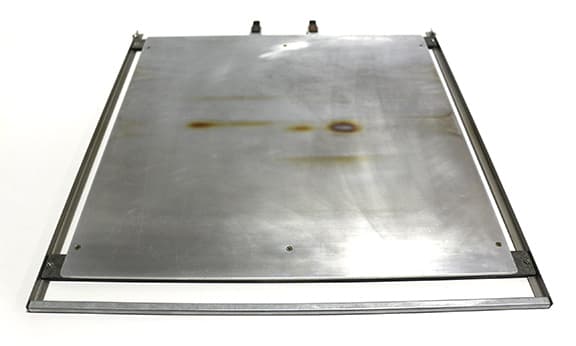

(1) Grounded, Solid, Work area 24" x 24"

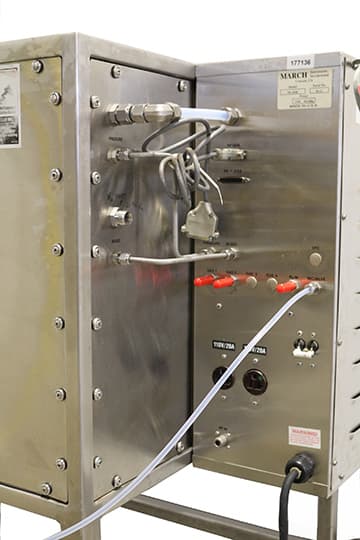

Gas inputs via mass flow controllers

Specifications

Etcher Type: Box
Rated Power Output: 1000 Watts
Reactor Center: Rectangular
Reactor Center Material: Other
Number of Gas Inputs: Two Gas
Automatching Network Included: Yes
Vacuum Pump Included: No
Interface: RS 232

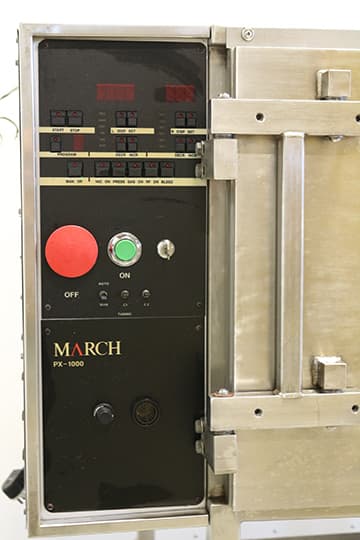

Panel Meters: Digital
External Cooling: Forced Air Cooled

Reactor Center Size

Width: 26.38 in (67.01 cm)
Depth: 25.38 in (64.47 cm)
Height: 14.00 in (35.56 cm)

Exterior Dimensions

Width: 42.000 in (106.7 cm)
Depth: 36.000 in (91.4 cm)
Height: 48.000 in (121.9 cm)

Working & Warranted
Working & Warranted means the item has been inspected by Capovani engineers to confirm functional condition and is sold with a 90 day warranty.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
