March Nordson PX-500 Box Plasma Etcher
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- March Instruments
- MPN
- PX-500
- SKU
- 257351
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

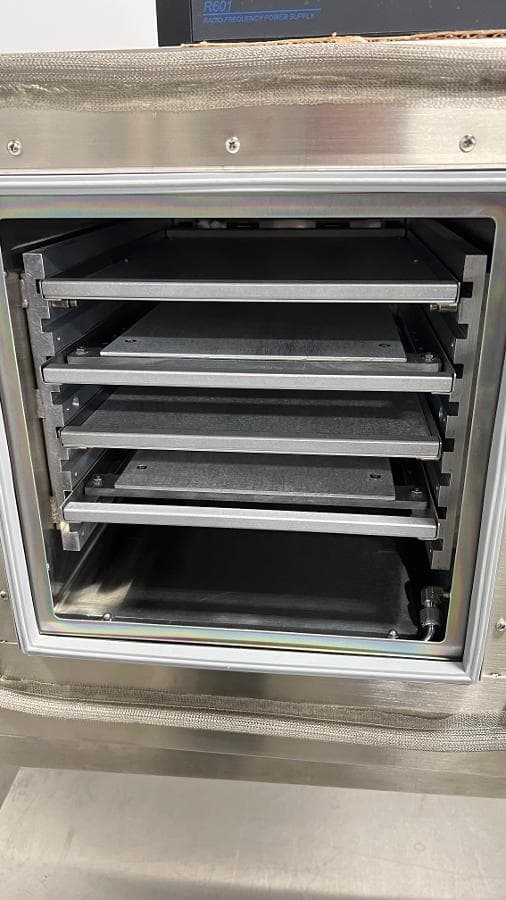

2 Grounded shelves
2 RF Powered shelves
Nor-Cal KF 50 Vacuum Valve
Gas 1: 0-100% display setpoint is 0-250 sccm MFC flow, N2 calibration
Gas 2: 0-100% display setpoint is 0-500 sccm MFC flow, N2 calibration
Etcher has been tested.
Mechanical pump is not included.
Technical specifications
| Etcher Type | Box |
| Rated Power Output | 600 Watts |
| Reactor Center | Rectangular |
| Reactor Center Material | Aluminum |
| Number of Gas Inputs | Two Gas |
| Automatching Network Included | Yes |
| Vacuum Pump Included | No |
| Vacuum Pump Model | Sold separately |

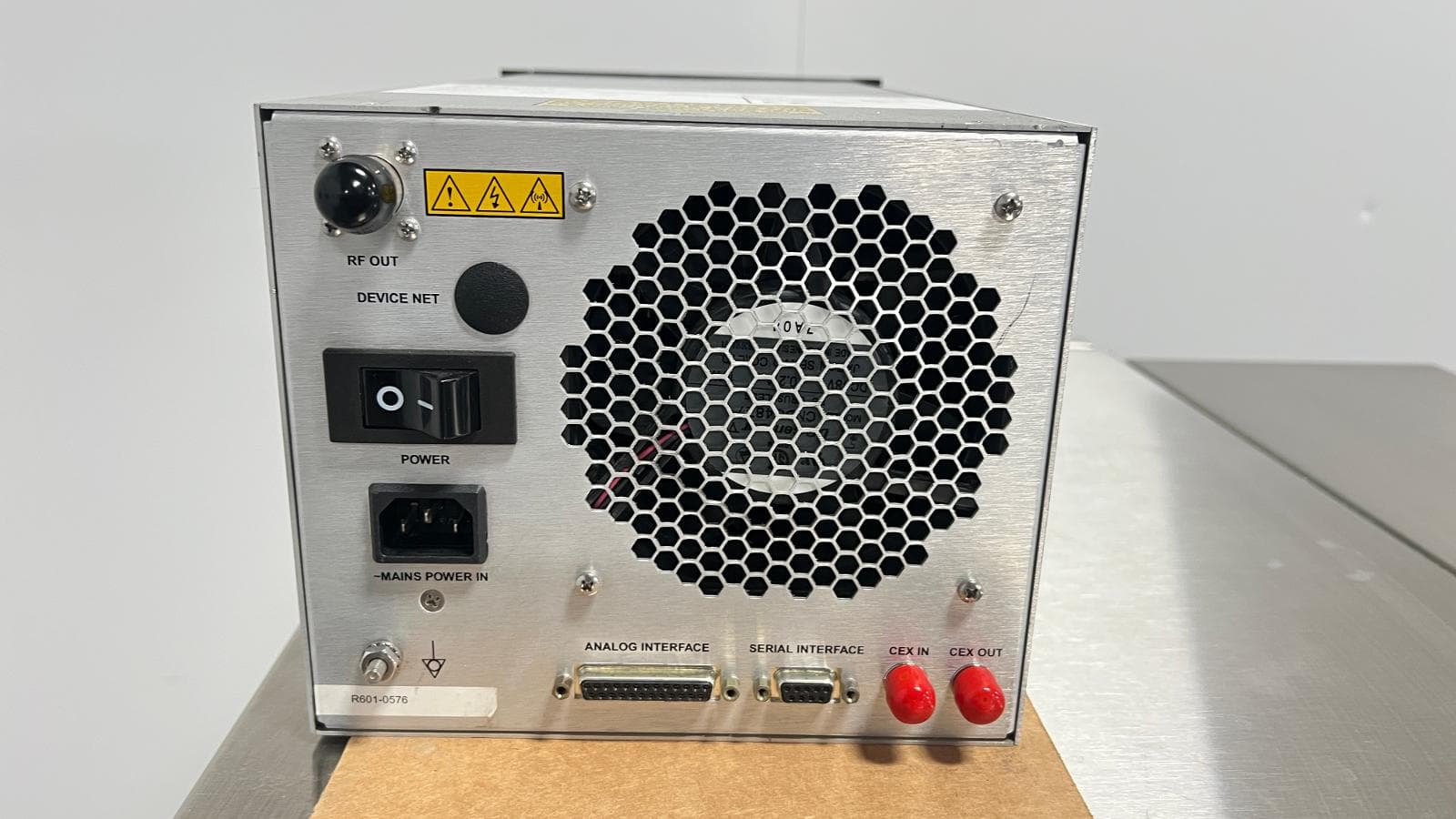

| RF Generator Model | Seren R601 |
| Panel Meters | Digital |
| External Cooling | Forced Air Cooled |
| Power Requirements | 208/230 V 20.0 A 50/60 Hz 1 Phase |
| CE Marked | YES |
| Year of Manufacture | 2006 |
| Weight | 185 lb (84 kg) |
Reactor Center Size
| Width | 12.00 in (30.48 cm) |
| Depth | 12.00 in (30.48 cm) |
| Height | 20.00 in (50.80 cm) |
Exterior Dimensions
| Width | 26.000 in (66.0 cm) |
| Depth | 20.000 in (50.8 cm) |
| Height | 30.500 in (77.5 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
