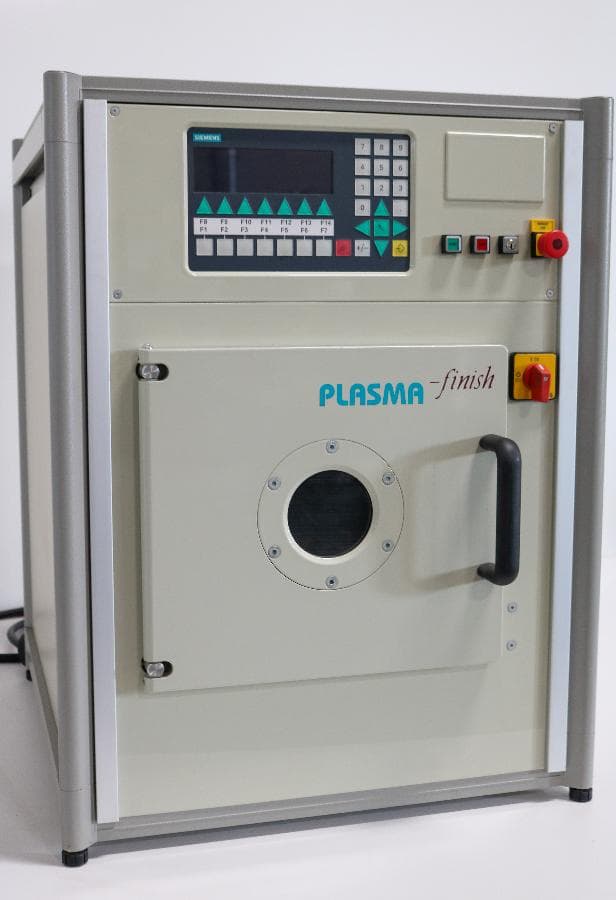

Plasma-Finish V15-G Plasma Box Etcher System - Acquired by PINK

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Plasma-finish
MPN
V15G
SKU
208462
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

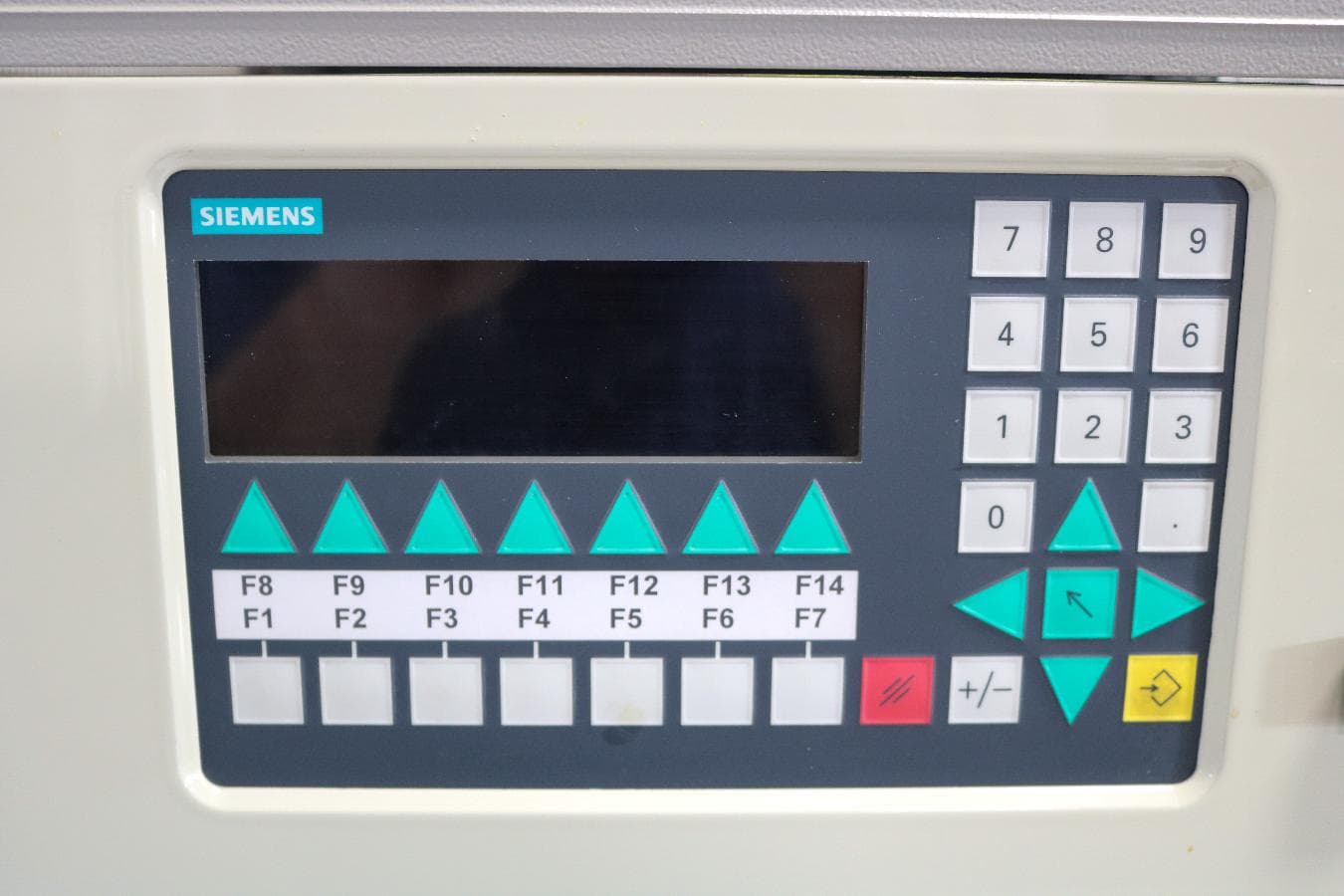

16 Bit micro controller

E Prom 512 KB memory 16 inputs , 16 outputs

4 Analog inputs (resolution 10 bits)4 analog outputs

4 pulse-width modulated outputs

Microwave coupling system operates at 2.45 GHz.

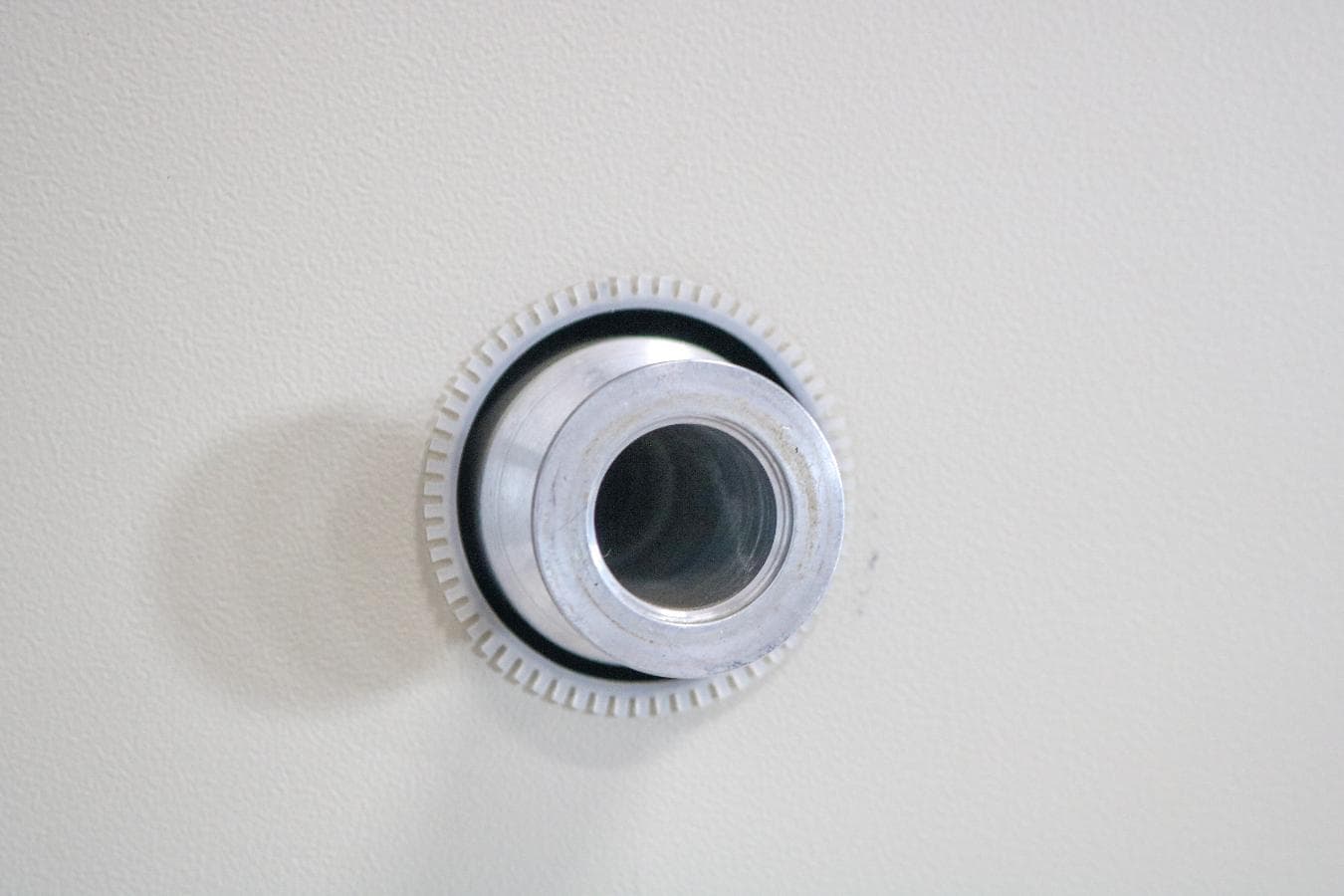

Vacuum port: KF 25

Vacuum required: 25-40 m3/h.

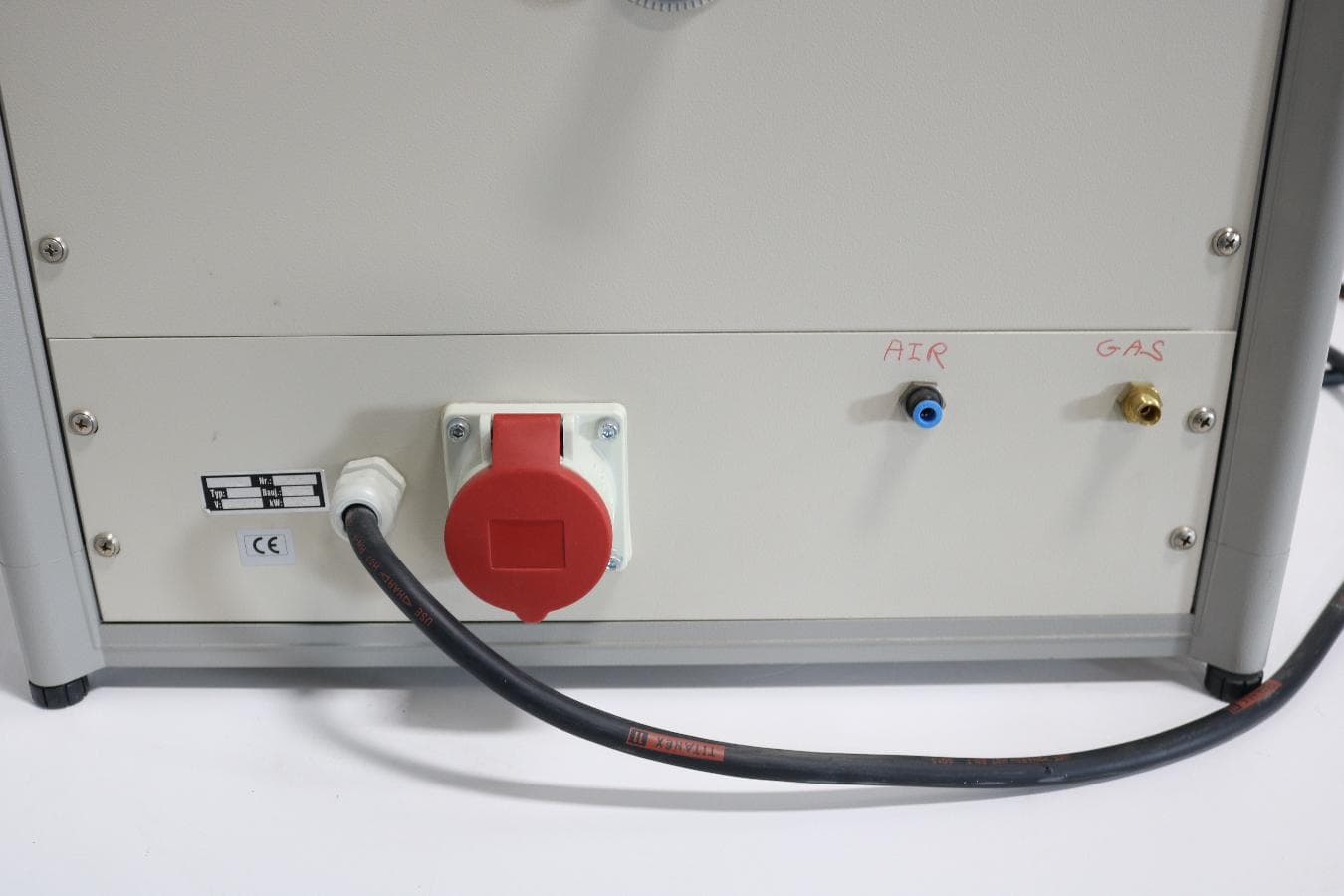

1/4" compression gas port

1/4" compression air port

Technical specifications

Etcher TypeBox
Rated Power Output300 Watts

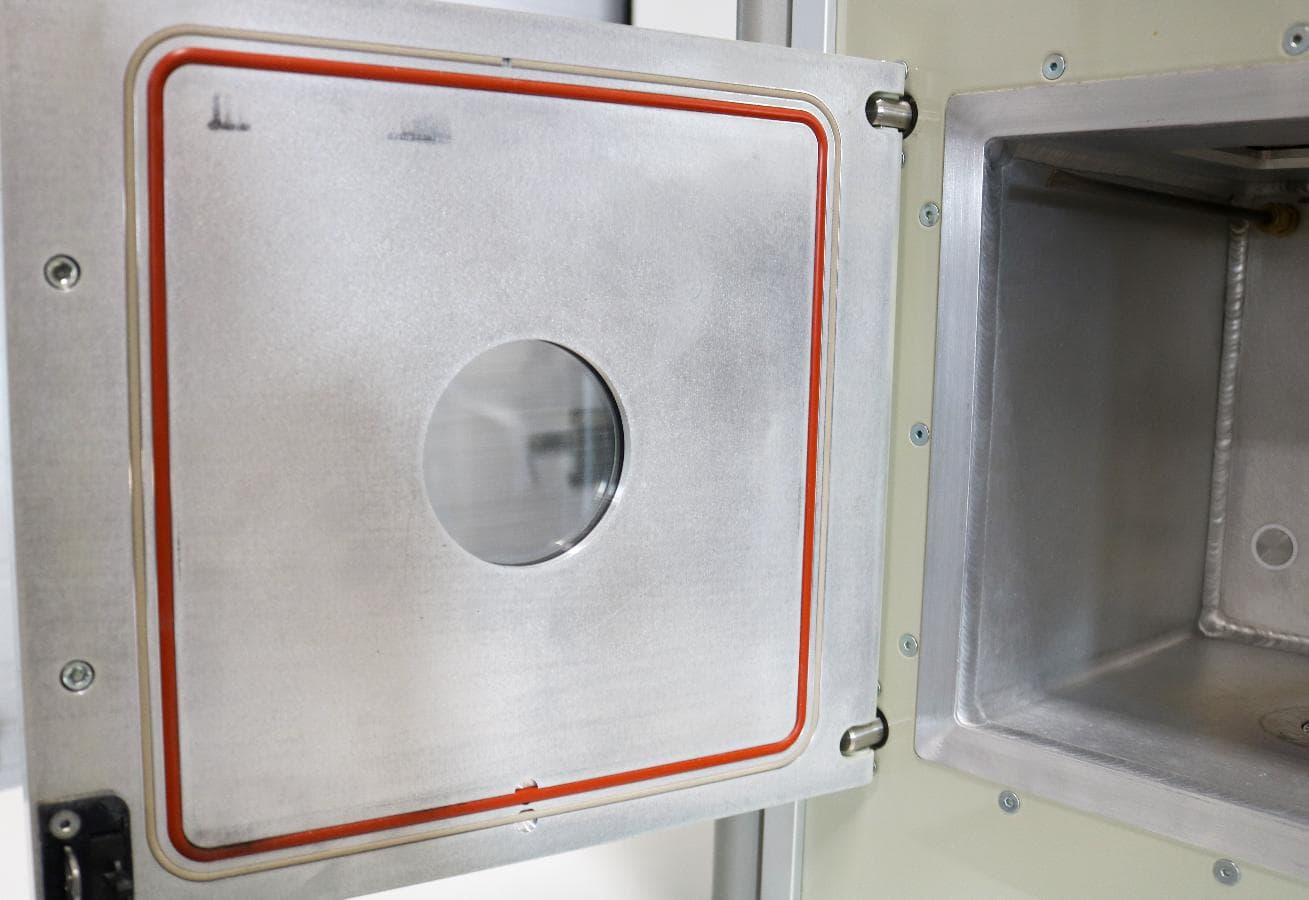

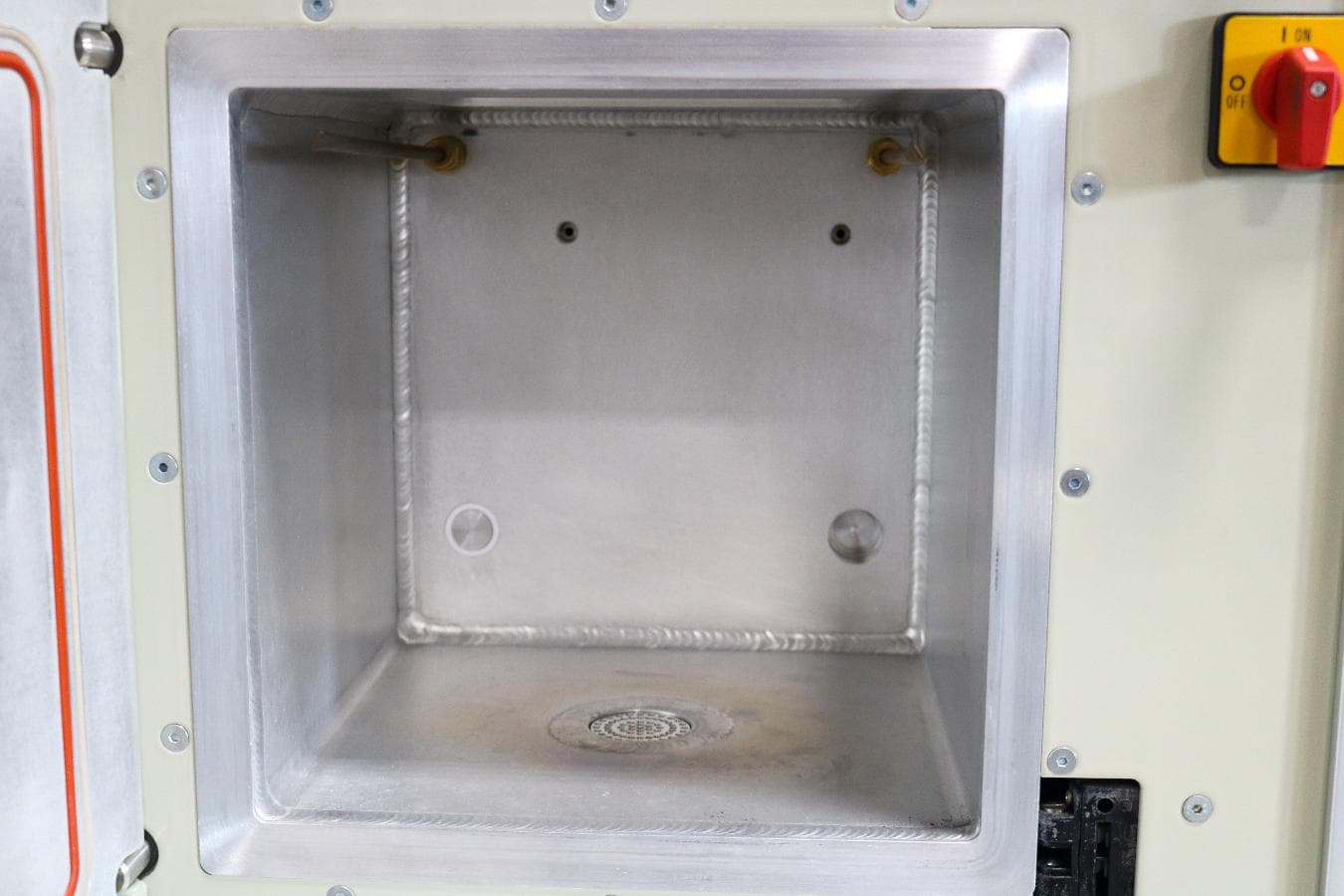

Reactor CenterRectangular
Reactor Center MaterialAluminum
Number of Gas InputsSingle Gas
Vacuum Pump IncludedNo

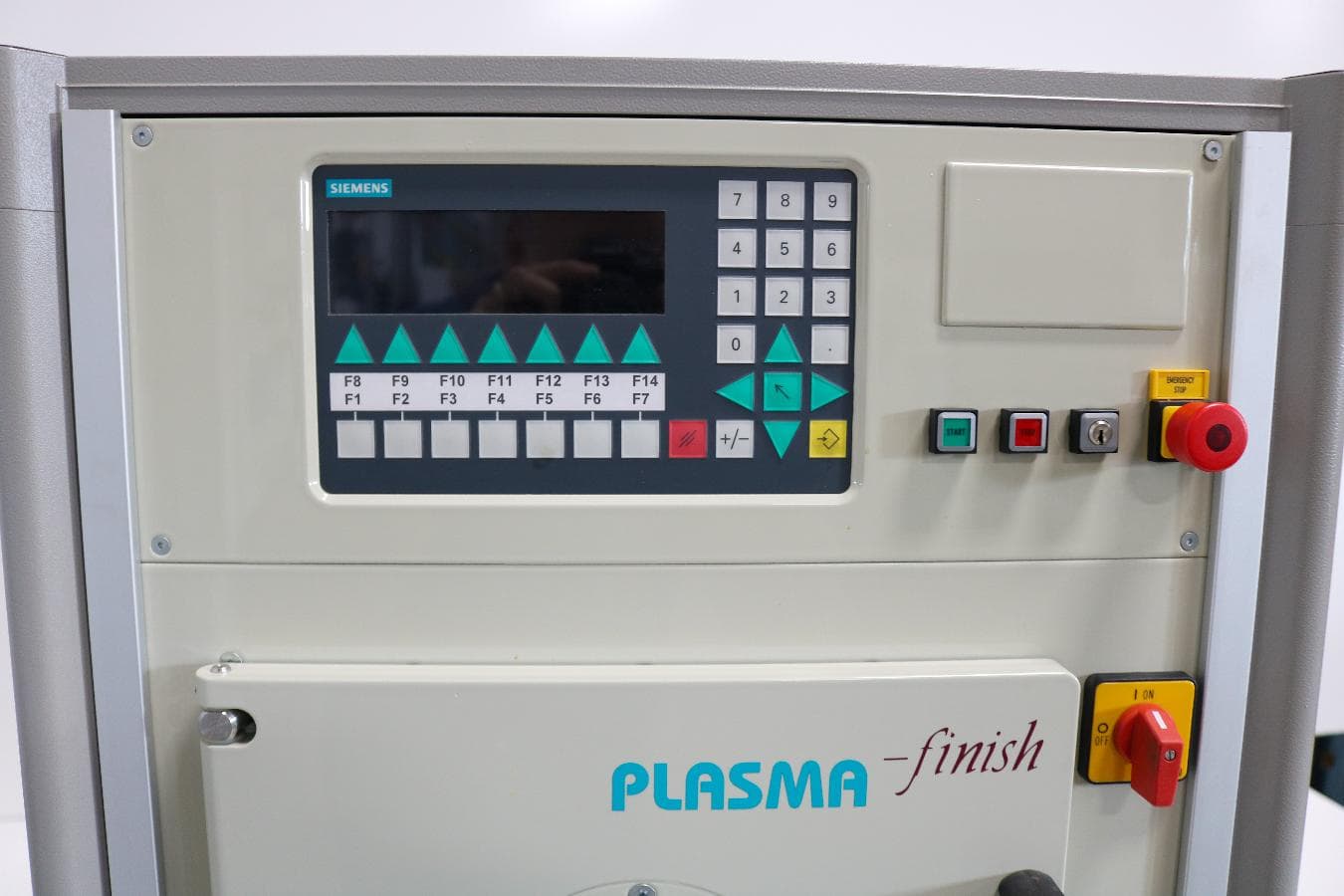

Panel MetersDigital
External CoolingAir Cooled

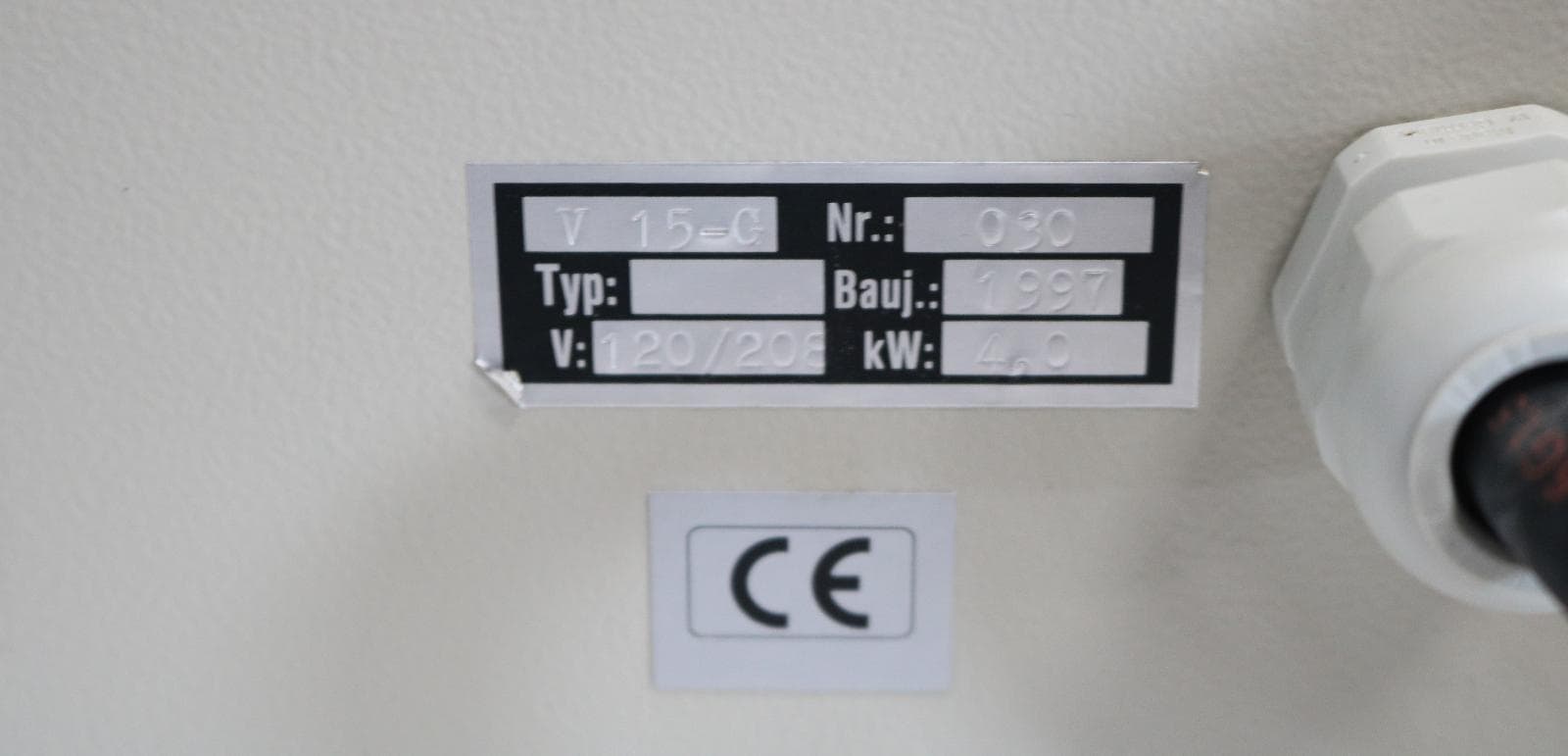

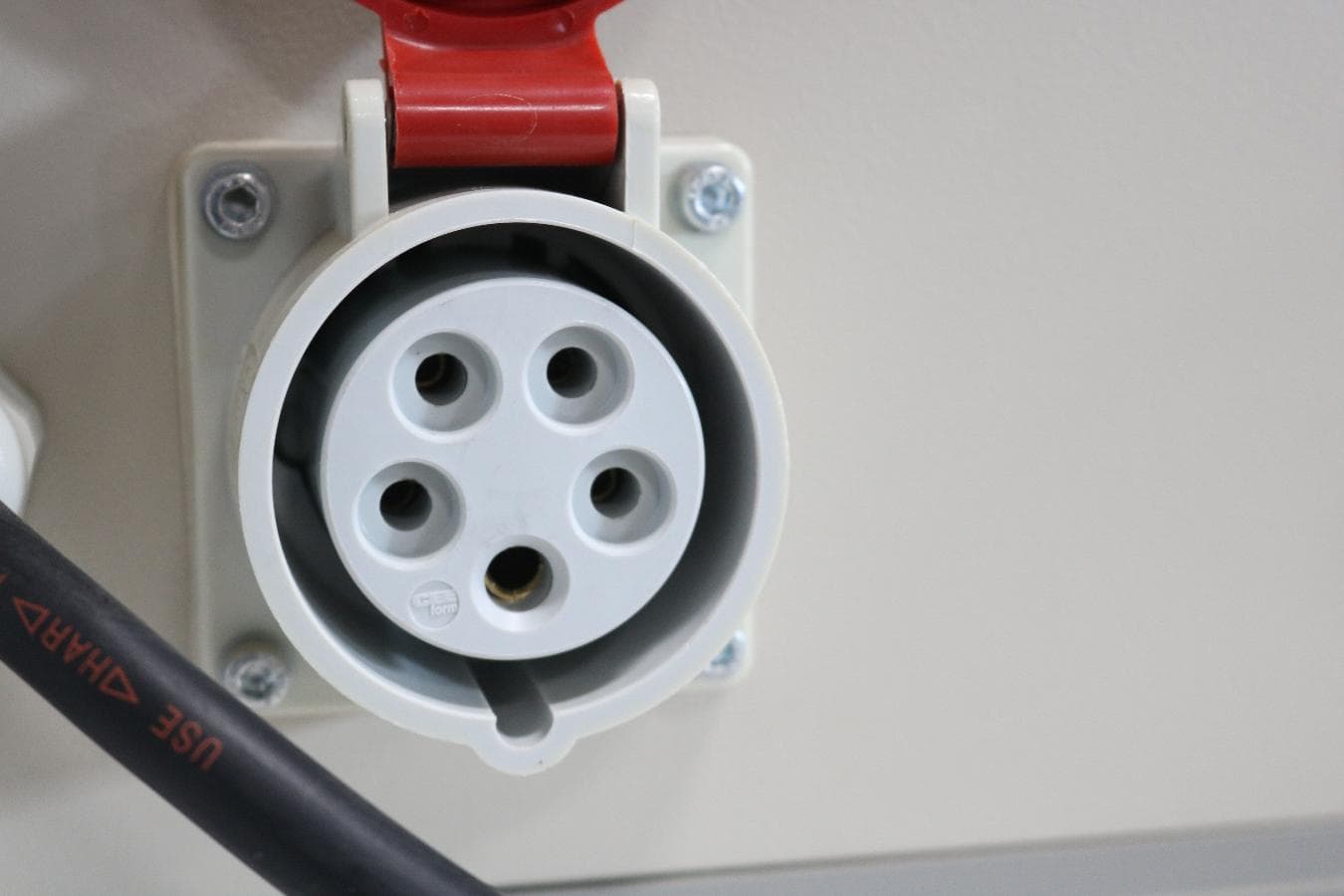

Power Requirements120/208 V 20.0 A 3 Phase
CE MarkedYES

Reactor Center Size

Width9.75 in (24.77 cm)
Depth9.75 in (24.77 cm)
Height9.75 in (24.77 cm)

Exterior Dimensions

Width22.000 in (55.9 cm)
Depth24.000 in (61.0 cm)
Height29.000 in (73.7 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
