MARCH INSTRUMENTS BARREL PLASMA ETCHER 300 WATT
Barrel/Box Plasma Etchers
Barrel Plasma Etcher with Vacuum Pump
March Instruments, manufacturer of plasma systems, was acquired by Nordson - called Nordson MARCH.
1 unit @ Best Price
Make: March Instruments
Model: PM-600
Item ID: 108528
| Manufacturer | March Instruments |
| Model | PM-600 |
| Etcher Type | Barrel |
| Rated Power Output | 300 Watts |

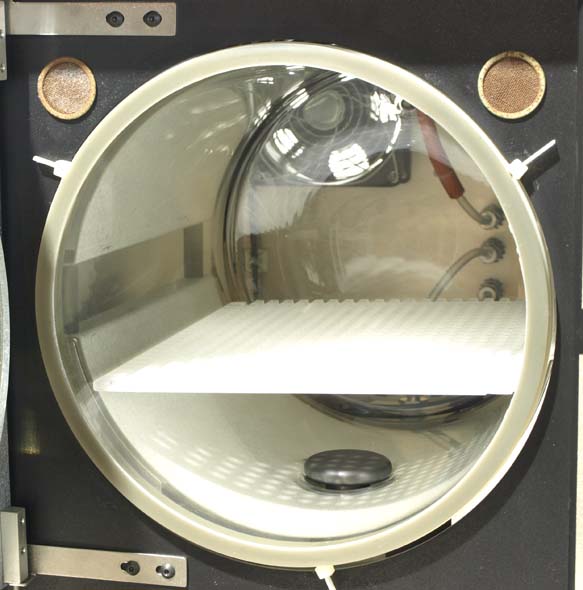

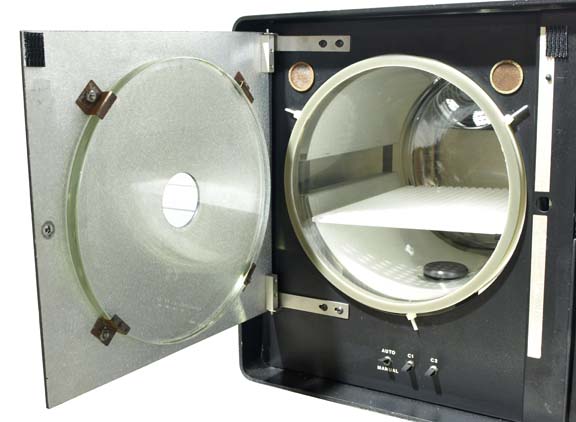

| Reactor Center | Cylindrical |
| Reactor Center Size | |
| Depth | 12.00 in (30.48 cm) |
| Diameter | 10.00 in (25.40 cm) |
| Reactor Center Material | Quartz |
| Number of Gas Inputs | Two Gas |
| Automatching Network Included | Yes |

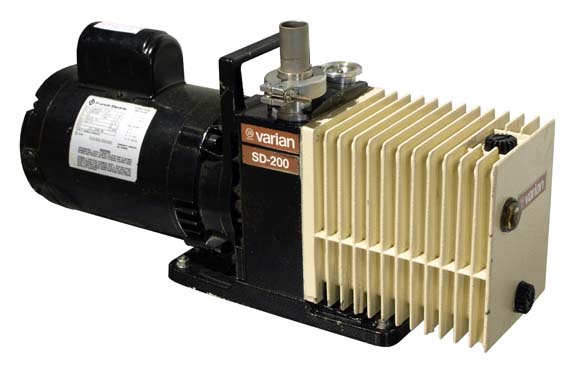

| Vacuum Pump Included | Yes |

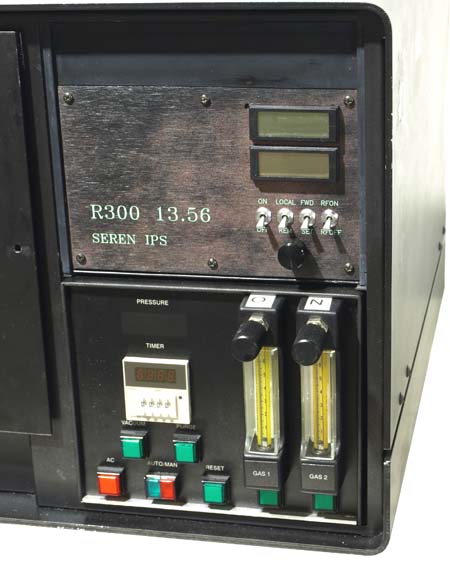

| RF Generator Model | Seren IPS R300 |
| Accessories | (1) Quartz Lattice Tray |
| Other Information | Automatic and Manual Modes |
| Power Requirements | 115 V 60 Hz 1 Phase |
| Exterior Dimensions | |
| Width | 23.000 in (58.4 cm) |
| Depth | 22.000 in (55.9 cm) |
| Height | 17.000 in (43.2 cm) |
