Branson/IPC 7102 Plasma Etcher

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Branson/IPC
MPN
7102
SKU
189241
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

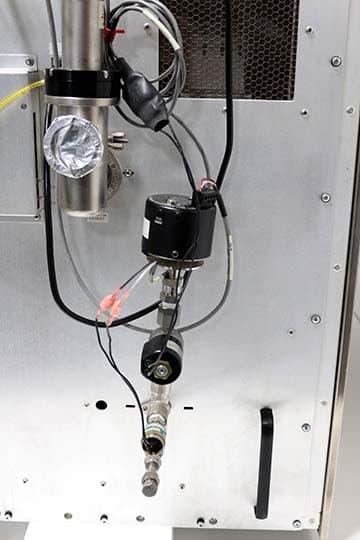

MKS pressure transducer--Type 122A

Seven shelf insert (option), inquire about price and availability

Chamber Part No. - 15699-03--Manufactured 1990

Controller Part No. - 15676-01--Manufactured 1990

RF Generator

250 V, 20 A, 1 phase

Exterior dimensions: 17"W x 16.5"D x 8.25"H

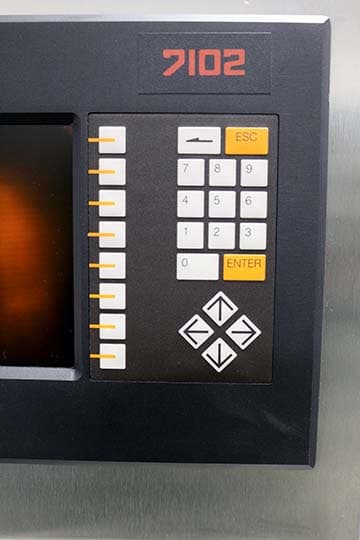

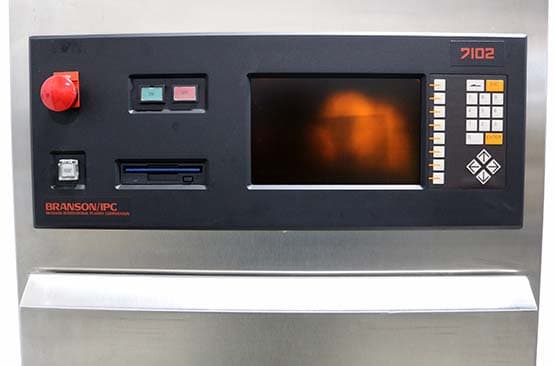

Front panel digital display has CRT display

Vacuum connection: KF 40

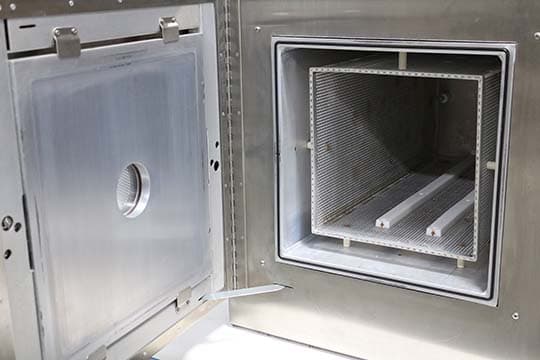

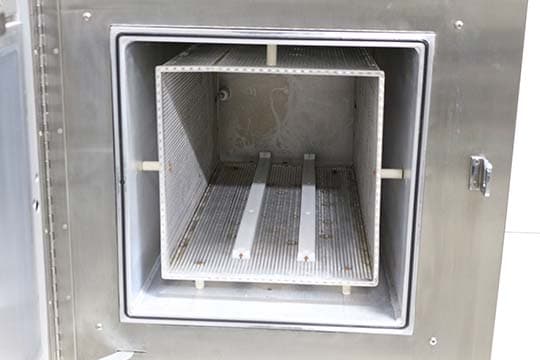

Etch tunnel dimensions: 11.5"W x 26"D x 11.5"H

3" diameter view port in door

Technical specifications

Etcher TypeBox
Rated Power Output1000 Watts
Reactor CenterRectangular
Reactor Center MaterialAluminum

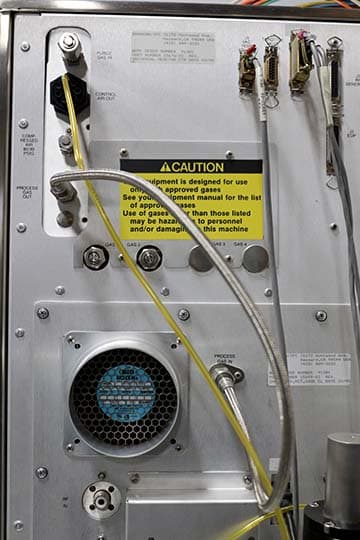

Number of Gas InputsTwo Gas
Automatching Network IncludedYes
Vacuum Pump IncludedNo

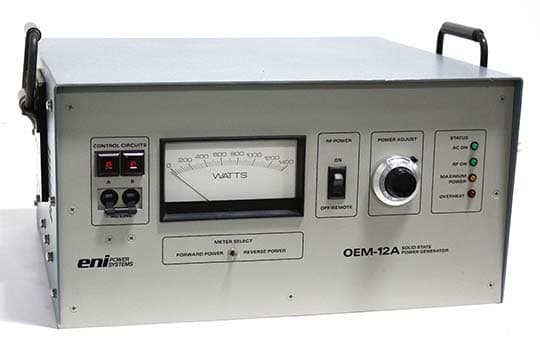

RF Generator ModelENI Power Systems--Model OEM-12AB-3
Panel MetersDigital
External CoolingWater Cooled
Weight700 lb (318 kg)

Reactor Center Size

Width14.75 in (37.47 cm)
Depth30.00 in (76.20 cm)
Height14.75 in (37.47 cm)

Exterior Dimensions

Width25.000 in (63.5 cm)
Depth44.000 in (111.8 cm)
Height44.000 in (111.8 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
