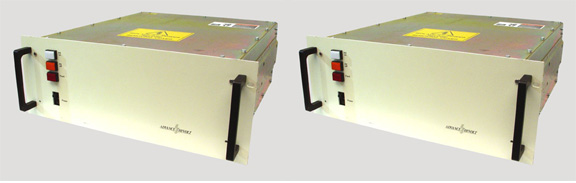

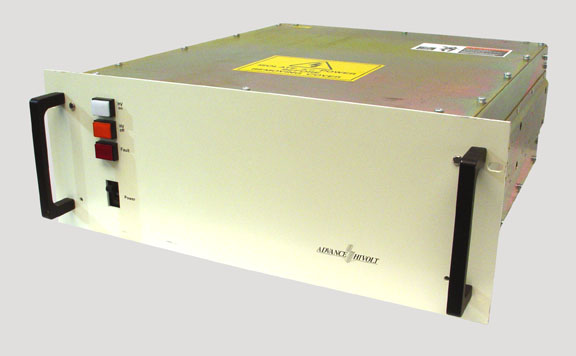

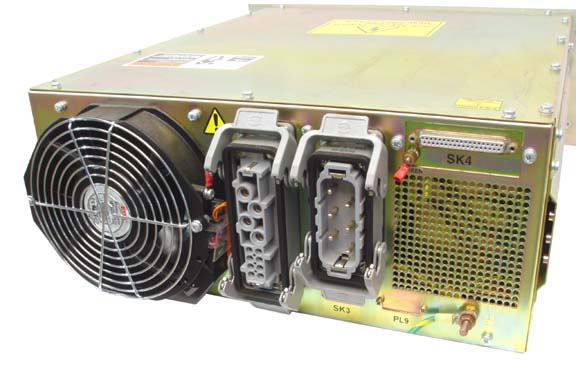

HITEK POWER SYSTEMS HIGH VOLTAGE POWER SUPPLY 80 kV 100 mA

High Voltage Power Supplies

High Voltage Power Supply

Formerly Advance Hivolt

5 unit s @ Best Price

Make: Hitek Power Sys

Model: OL8000/803/10

Item ID: 39884

Manufacturer Hitek Power Sys
Model OL8000/803/10
Maximum Output Voltage 80.0 kV
Maximum Output Current 100.0 mA
Panel Meters None
Regulation 0.2% Peak to peak
External Cooling Forced Air Cooled
Accessories

Applications

  • Ion implantation
  • Ion vapor deposition
  • Chemical vapor deposition
  • Electron beam welding
  • Electron guns
  • High voltage testing
  • Particle accelerators
  • CE Label
Other Information

System configuration

  • Two stacks
  • One master controller
  • One slave controller
  • One interface module Output: 80 Kw
    Output current: 100 Ma
    Positive polarity
Power Requirements 200-240 V 34.0 A 47-63 Hz 3 Phase
CE Marked YES
Condition Very Good
Exterior Dimensions
Width 19.000 in (48.3 cm)
Depth 22.000 in (55.9 cm)
Height 7.000 in (17.8 cm)
Weight 165 lb (75 kg)
@
$
=
