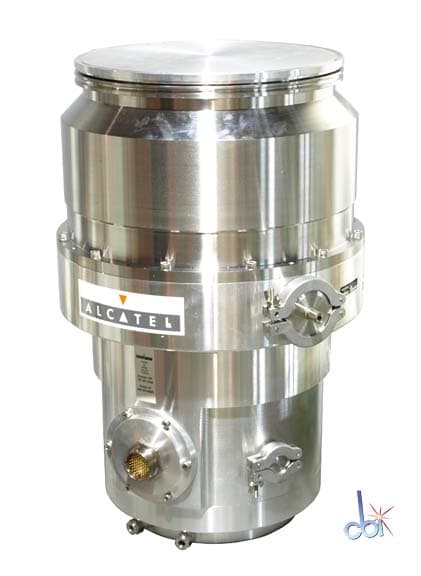

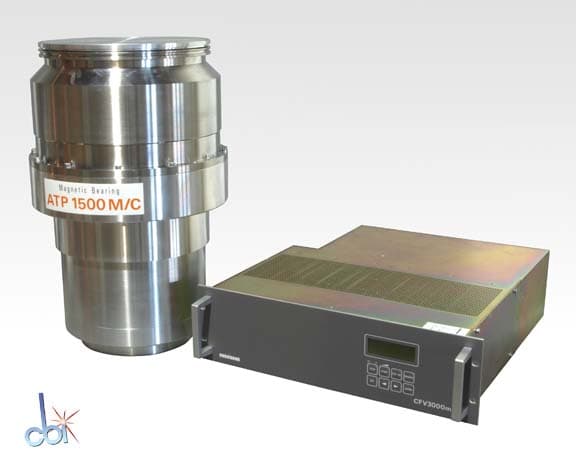

Alcatel ATP 1500M Turbo Pump
Quoted on requestWorking & warranted
- Condition
- Brand new See details
- Brand
- Alcatel
- MPN
- ATP 1500M
- SKU
- 125347
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Technical specifications
| Pumping Speed Nitrogen | 1,500.0 l/s (3,178.6 CFM) |
| Ultimate Pressure | 0.20E-9(En) torr (0.27E-9 mbar) |
| Inlet Flange | ISO-K 250.0 mm (9.843 in) |
| Foreline Flange | KF 40.0 mm (1.575 in) |
| Controller Included | Yes |

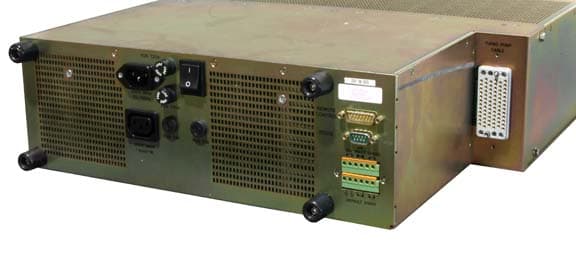

| Controller Model/Part Number | CFV 3000M/ 066908 |
| Cables Included | Yes |
| Duty--Service | Normal |
| Inlet Screen Included | Yes |
| Bearing Type | Magnetic Levitation |
| Installation Orientation | Any |
| Rotational Speed | 24,000 RPM |
| Startup Time | 12 minutes |
| External Cooling | Water Cooled |
| Power Requirements | 200-240 V 50/60 Hz 1 Phase |
| CE Marked | YES |
| Weight | 298 lb (135 kg) |
Condition & testing notes
Never used inventory in brand new condition.
