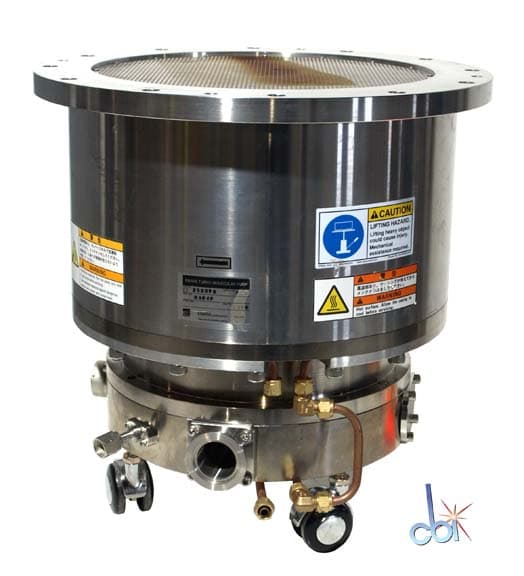

Ebara Technologies ET 2500 WS Turbo Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Ebara
- MPN
- ET 2500 WS
- SKU
- 103638
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Flange: 12" I.D., 16.75" O.D.
Technical specifications
| Pumping Speed Nitrogen | 2,500.0 l/s (5,297.7 CFM) |
| Ultimate Pressure | 1.00E-5(En) torr (0.13E-4 mbar) |
| Foreline Flange | KF 40.0 mm (1.575 in) |
| Controller Included | Yes |

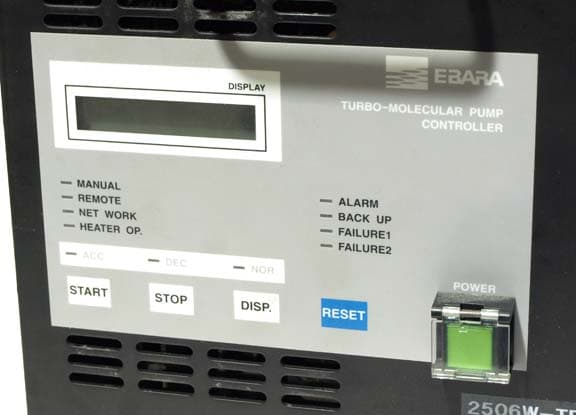

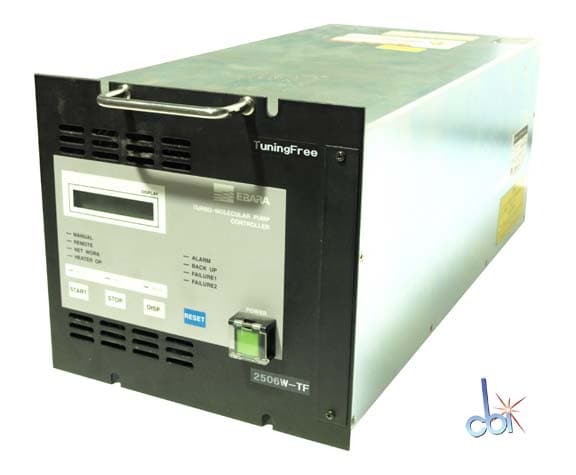

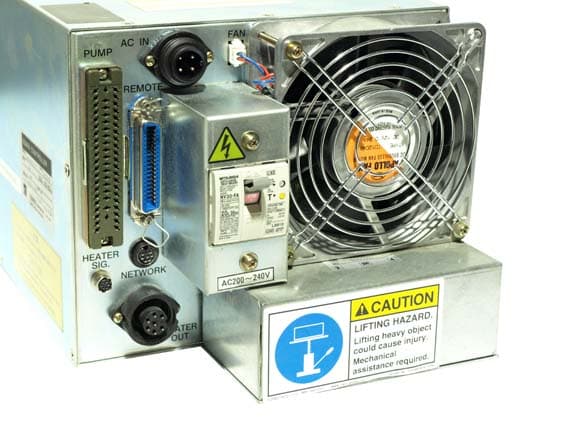

| Controller Model/Part Number | 2506W-TF |
| Cables Included | Yes |
| Duty--Service | Corrosive |

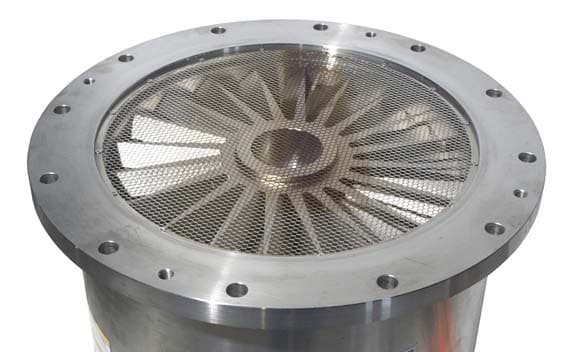

| Inlet Screen Included | Yes |
| Bearing Type | Magnetic Levitation |
| Installation Orientation | Any |
| Rotational Speed | 27,000 RPM |
| External Cooling | Water Cooled |
| Year of Manufacture | 2000 |
| Weight | 180 lb (82 kg) |
Exterior Dimensions
| Width | 16.750 in (42.5 cm) |
| Depth | 16.750 in (42.5 cm) |
| Height | 14.250 in (36.2 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
