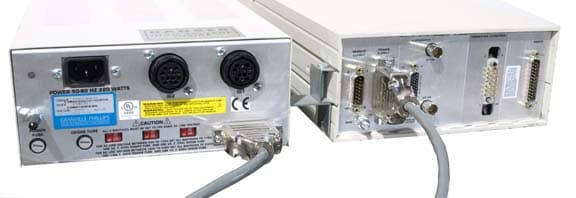

Granville Phillips 307 Stabil-Ion Controller
- Condition
- Used See details
- Brand
- Granville Phillips
- MPN
- 370
- SKU
- 97045
- Availability
- 2 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Ion gauge cables see items 6799, 179524, 209733
Catalog No.: 370501-A0A-T1.
Power requirements: 90V to 130V or 180V to 240V
Two ion gauge sequential operation
Two setpoint process control 370108
RS232 communications 370110
Cables and gauges not included(inquire about availability)
This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules.
If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it.
If you have standard Bayard-Alpert glass gauge, you need to upload average calibration for that type of the gauge with sensitivity 10/Torr to channel one, two or both.
Memory modules for uploading can be purchased from MKS Instruments
Technical specifications
| Gauge Types Controlled | Ion only |
| Cables Included | No |
| Year of Manufacture | 2003 |
| Power Requirements | 1 Phase |
| CE Marked | YES |
| Weight | 16 lb (7 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 11.000 in (27.9 cm) |
| Height | 3.500 in (8.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
