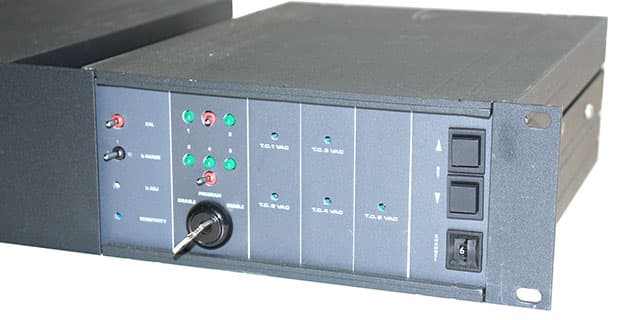

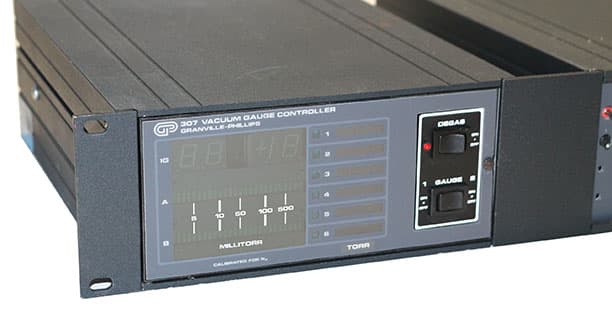

Granville Phillips 307109 Dual Ion/ Five Thermocouple Gauge Controller
- Condition
- Used See details
- Brand
- Granville Phillips
- MPN
- 307109
- SKU
- 179528
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

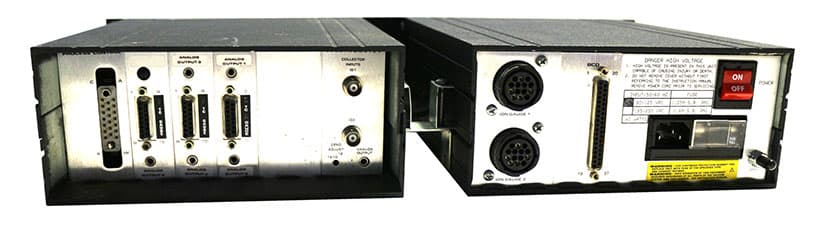

Cable between controller and the power supply included.
Gauges and gauge cables are not included, inquire, please.
Ion gauge cables see items 6799, 179524, 209733
TC gauge compatible types: G-P 270006, Comptech TVT-6000, or Teledyne-Hastings DV-6M, DV-6R, DV-36, DV-20.
Sequential Ion Gauge readout 1E-1 to 1E-9 Torr
Thermocouple bar graph readout 1E-3 to 1 Torr
6 relay process control
BCD interface for gauge pressure, status and control
Analog pressure output
Dimensions and weight
Control Unit
Width 241 mm 9.5 in
Height 89 mm (3.5 in.)
Depth 356 mm (14 in.) includes 76 mm (3 in.) for connectors and cables
Weight 3 kg (6.5 lb.)
Power Unit
Width 203 mm (8 in.)
Height 89 mm (3.5 in.)
Depth 330 mm (13 in.) includes 89 mm (3.5 in.) for connectors and cables
Weight 4 kg (8.5 lb.)
Technical specifications
| Gauge Types Controlled | Ion; Thermocouple |
| Cables Included | No |
| Power Requirements | 115/ 230 V 1.0 A 0.5 A(2) 50/60 Hz 1 Phase |
Condition & testing notes
Previously in service and offered for secondary-market resale.
