Contains modules
360104 standard Electrometer with Stabil-ion remote control
360105 for single convectron gauge
Optional 6 channel process control board, can be added if available, +$545

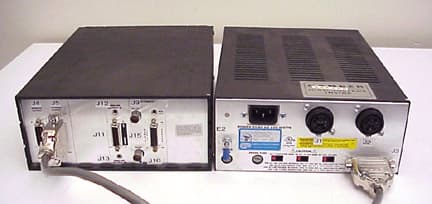

Cable between controller and the power supply included.
Ion gauge cables see items 6799, 179524, 209733
This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules.
If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both.
If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it.
If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both.
Specify type and sensitivity of your gauges when ordering.
Features and controls: Two ion gauges in sequential operation
One Convectron gauge
Electron Beam Degas
I/O Remote
STABIL-ION Remote
Click here for the manual
