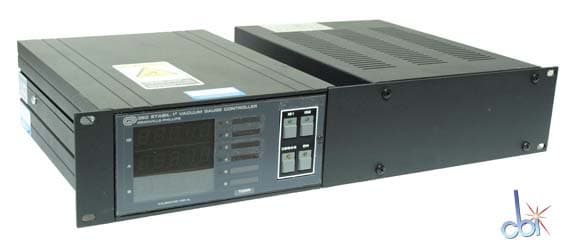

Granville Phillips 360 Mulitple Gauge Controller
- Condition
- Used See details
- Brand
- Granville Phillips
- MPN
- 360
- SKU
- 102739
- Availability
- 7 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Contains Modules
360106 for Dual Convectron Gauges
360104 for Stabil-ion remote control
Cable between controller and the power supply included.
Ion gauge cables see items 179524, 209733 or ask if you need a different ones.
Option 1: 360107 6 channel process control board, can be added if available, add $545 to the price
Option 2: 19" rack mounting hardware, can be added if available, add $60 to the price
When option 1 and option 2 are added, P/N of the controller will be 360501-01B-T1
NB: When ordering, specify type and sensitivity of your gauges and input power 115VAC or 230VAC...
This controller can be calibrated for different ion gauges, calibration for each channel is loaded via memory modules.
If you have standard Bayard-Alpert glass gauge, CBI can upload average calibration for that gauge with sensitivity 10/Torr to channel one, two or both.
If you have Stabil-Ion gauge with individual module containing calibration for that gauge, you should upload that to the controller before using it.
If you have Stabil-Ion gauge without individual module, CBI can upload average calibration with sensitivity 50/Torr to channel one, two or both.
Technical specifications
| Gauge Types Controlled | Ion; Convectron |
| Cables Included | No |
| Power Requirements | 115/ 230 V 50/60 Hz 1 Phase |
| Weight | 14 lb (6 kg) |
Exterior Dimensions
| Width | 19.000 in (48.3 cm) |
| Depth | 11.000 in (27.9 cm) |
| Height | 3.500 in (8.9 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
