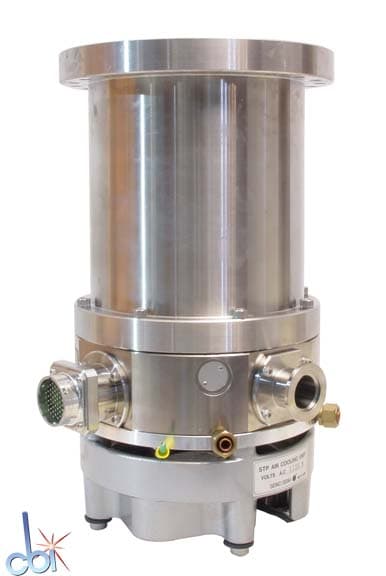

Seiko-Seiki STPH-300C Turbo Pump with Controller
$18,500.00Working & warranted
- Condition
- Used See details
- Brand
- Seiko-Seiki
- MPN
- STPH-300C with controller
- SKU
- 82024
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Technical specifications
| Pumping Speed Nitrogen | 320.0 l/s (678.1 CFM) |
| Ultimate Pressure | 1.00E-9(En) torr (0.13E-8 mbar) |
| Inlet Flange | Conflat 160.0 mm (6.299 in) |
| Foreline Flange | KF 25.0 mm (0.984 in) |

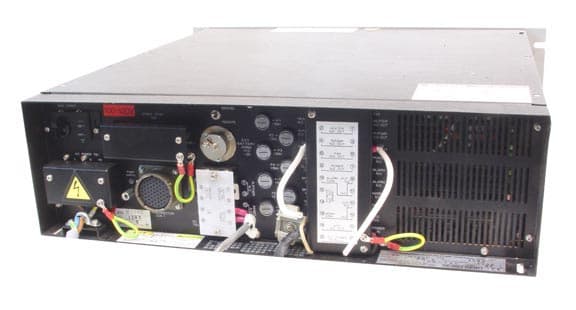

| Controller Model/Part Number | STP-H2000 |
| Cables Included | Yes |
| Duty--Service | Corrosive |
| Bearing Type | Magnetic Levitation |
| Installation Orientation | Any |
| Rotational Speed | 36,000 RPM |
| Startup Time | 5 minutes |
| External Cooling | Forced Air Cooled |
| Weight | 106 lb (48 kg) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
