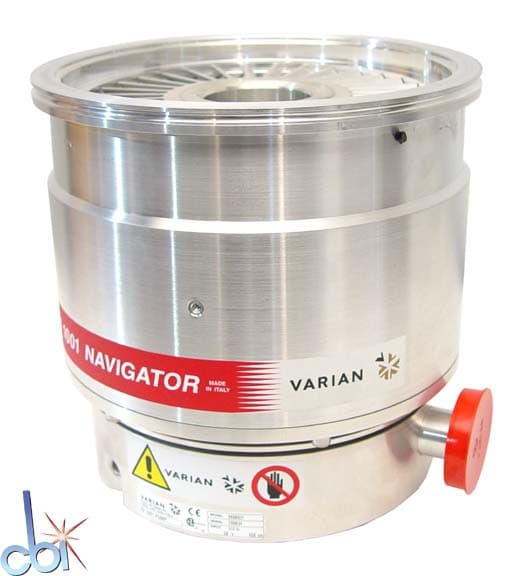

Varian Agilent TV-1001 Navigator Turbo Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Varian
- MPN
- TV-1001 Navigator
- SKU
- 39909
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Pump Part Number: 9698931
Power Requirements: 100/120 Volt, 10 Amp
220/240 Volt, 5 Amp
Technical specifications
| Pumping Speed Nitrogen | 950.0 l/s (2,013.1 CFM) |
| Ultimate Pressure | 1.00E-10(En) torr (0.13E-9 mbar) |

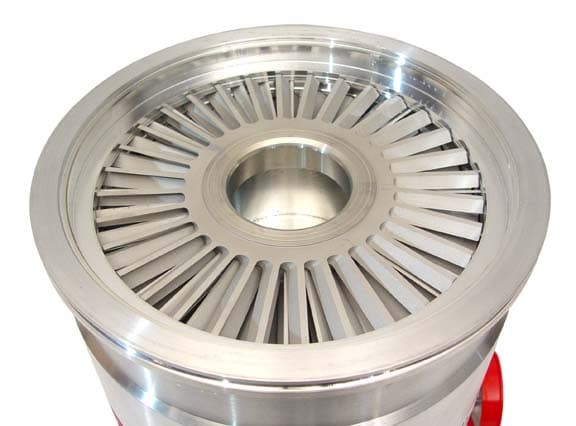

| Inlet Flange | ISO-K 200.0 mm (7.874 in) |
| Foreline Flange | KF 40.0 mm (1.575 in) |
| Controller Included | No |
| Cables Included | No |
| Inlet Screen Included | No |
| Bearing Type | Ceramic |
| Installation Orientation | Any |
| Rotational Speed | 38,000 RPM |
| Startup Time | 4 minutes |
| External Cooling | Water Cooled |
| Power Requirements | 1 Phase |
| CE Marked | YES |
| Weight | 72 lb (33 kg) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
