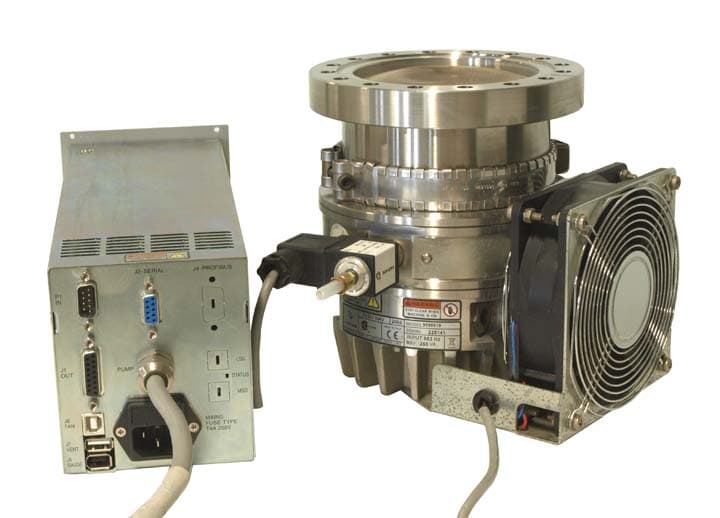

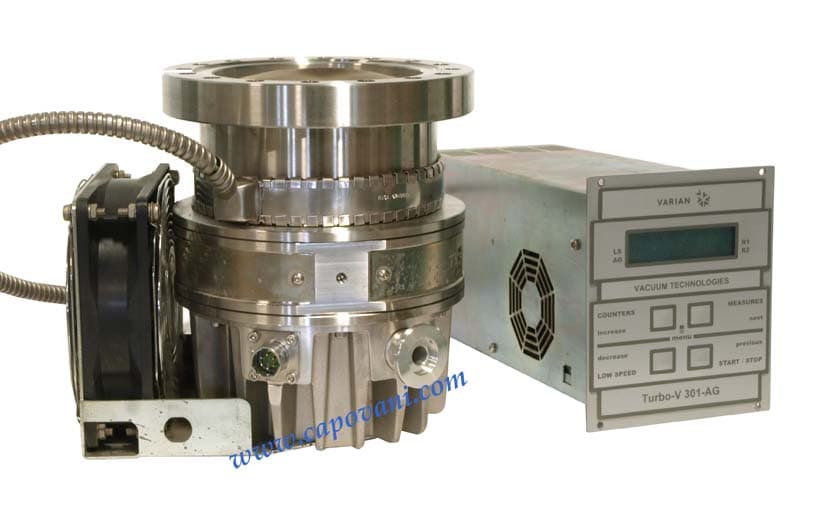

Varian TV-301 Turbo Pump
Quoted on requestWorking & warranted
- Condition
- Used See details
- Brand
- Varian
- MPN
- TV-301 Navigator p/n 9698919
- SKU
- 147469
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Heat Band 120 Volt 60 Watt p/n 969804
Flange: ID.4" OD.6"
Pump will be rebuilt when ordered, call for the lead time
Technical specifications
| Pumping Speed Nitrogen | 250.0 l/s (529.8 CFM) |
| Ultimate Pressure | 0.38E-9(En) torr (0.51E-9 mbar) |
| Inlet Flange | Conflat 152.4 mm (6.000 in) |
| Foreline Flange | KF 16.0 mm (0.630 in) |
| Controller Included | Yes |

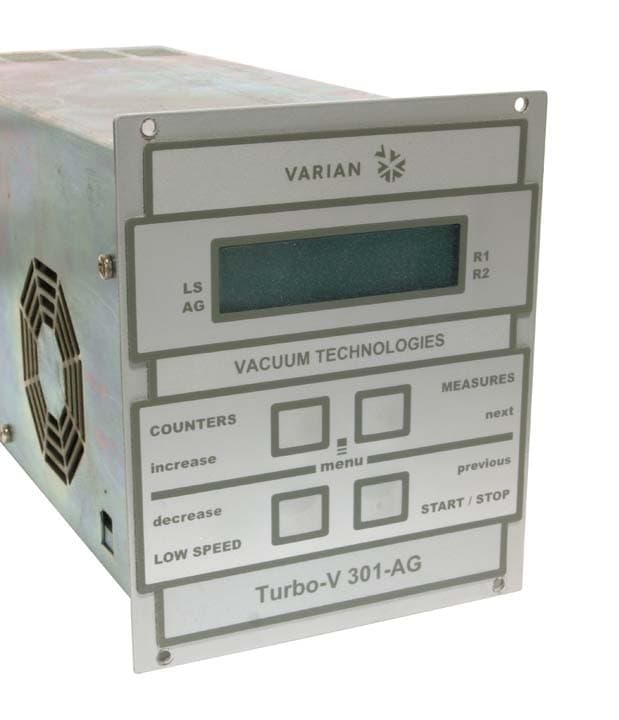

| Controller Model/Part Number | TV301 p/n 9698991 |
| Cables Included | Yes |
| Duty--Service | Normal |
| Inlet Screen Included | Yes |
| Bearing Type | Ceramic |
| Installation Orientation | Any |
| Rotational Speed | 56,000 RPM |
| External Cooling | Forced Air Cooled |
| Power Requirements | 120/240 V 4.0 A 50/60 Hz 1 Phase |
| CE Marked | YES |
| Year of Manufacture | 2006 |
| Weight | 17 lb (8 kg) |
Exterior Dimensions
| Width | 8.000 in (20.3 cm) |
| Depth | 7.000 in (17.8 cm) |
| Height | 7.500 in (19.1 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
