Item ID: 190439

Offered 1 Offered at $ 6,250.00

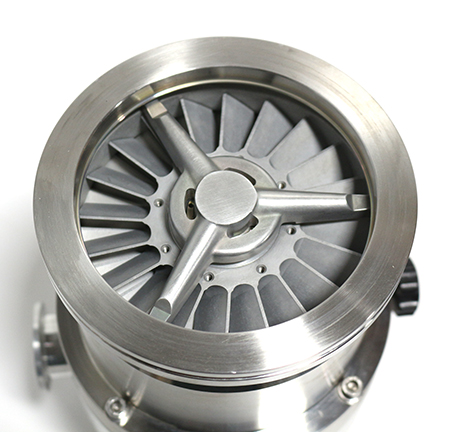

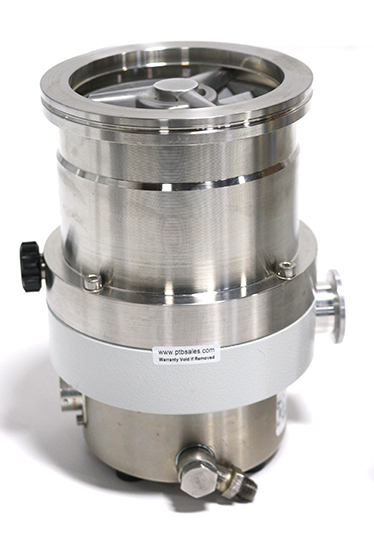

Turbo Pump with TCP121 Controller

In addition to this Balzers-Pfeiffer TPH 240, Capovani Brothers Inc stocks a wide range of used turbo vacuum pumps. Typical manufacturers include Alcatel, Balzers, Balzers-Pfeiffer, Leybold, Osaka Vacuum Ltd., Seiko Seiki, and Varian.

To view our complete stock of used turbo pumps visit our Turbo Vacuum Pumps category.

We also have turbo vacuum pump controllers available for sale. Visit our Turbo Pump Controller category

Learn about our Turbo Vacuum Pump Refurbishment and Functional Testing Procedures

This turbo pump and all equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price $ 6,250.00
Number of Units 1
Manufacturer Balzers-Pfeiffe
Model TPH 240
Pumping Speed Nitrogen 230.0  l/s  (487.4 CFM)
Ultimate Pressure  -7.50E-10(En)  torr  (1.00E-9 mbar)
Inlet Flange ISO-K     100.0  mm  (3.937 in)
Foreline Flange KF     25.0  mm  (0.984 in)
Controller Included Yes

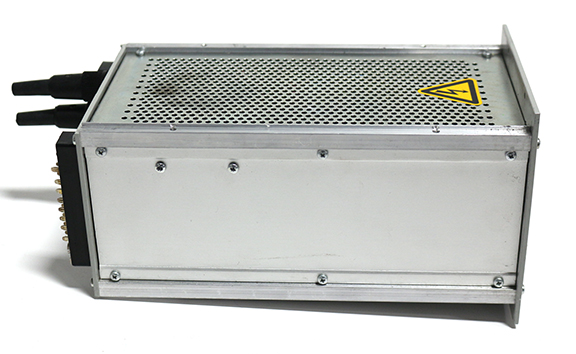

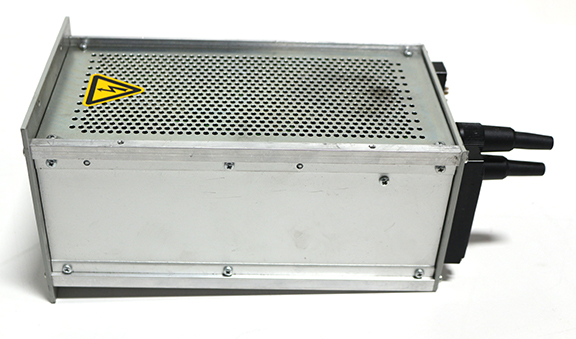

Controller Model/Part Number TCP121
Cables Included Yes
Duty--Service Normal
Inlet Screen Included No
Bearing Type Other
Installation Orientation Horizontal or Vertical ONLY
Rotational Speed 60,000 RPM
Startup Time 3 minutes
External Cooling Air- OR Water-Cooled
Other Information

Bearing Type:
High-vacuum side: permanent magnet bearing
Backing pressure side: wick-lubricated miniature ball bearing

Turbo Pump Part Number PM P01 320 B
Controller Part Number PM C01 475A S1446

Power Requirements 120/240 V     2.0 A     50/60 Hz     1¬†Phase
Year of Manufacture 1995
Condition Excellent
Exterior Dimensions
  Width 6.476  in  (16.4 cm)
  Depth 7.756  in  (19.7 cm)
  Height 7.657  in  (19.4 cm)
Weight 19  lb  (9 kg)
