Edwards E2M40 PFPE Rotary Vane Vacuum Pump with Mist Filter
$1,200.00As-is no return
- Condition
- For parts See details
- Brand
- Edwards
- MPN
- A364-12-982
- SKU
- CID1492
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Freight, ready within 3 to 5 business days of order confirmation; you arrange the carrier or we can coordinate it.
- Sale Coverage:
- As-is No Return: No return; final sale. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

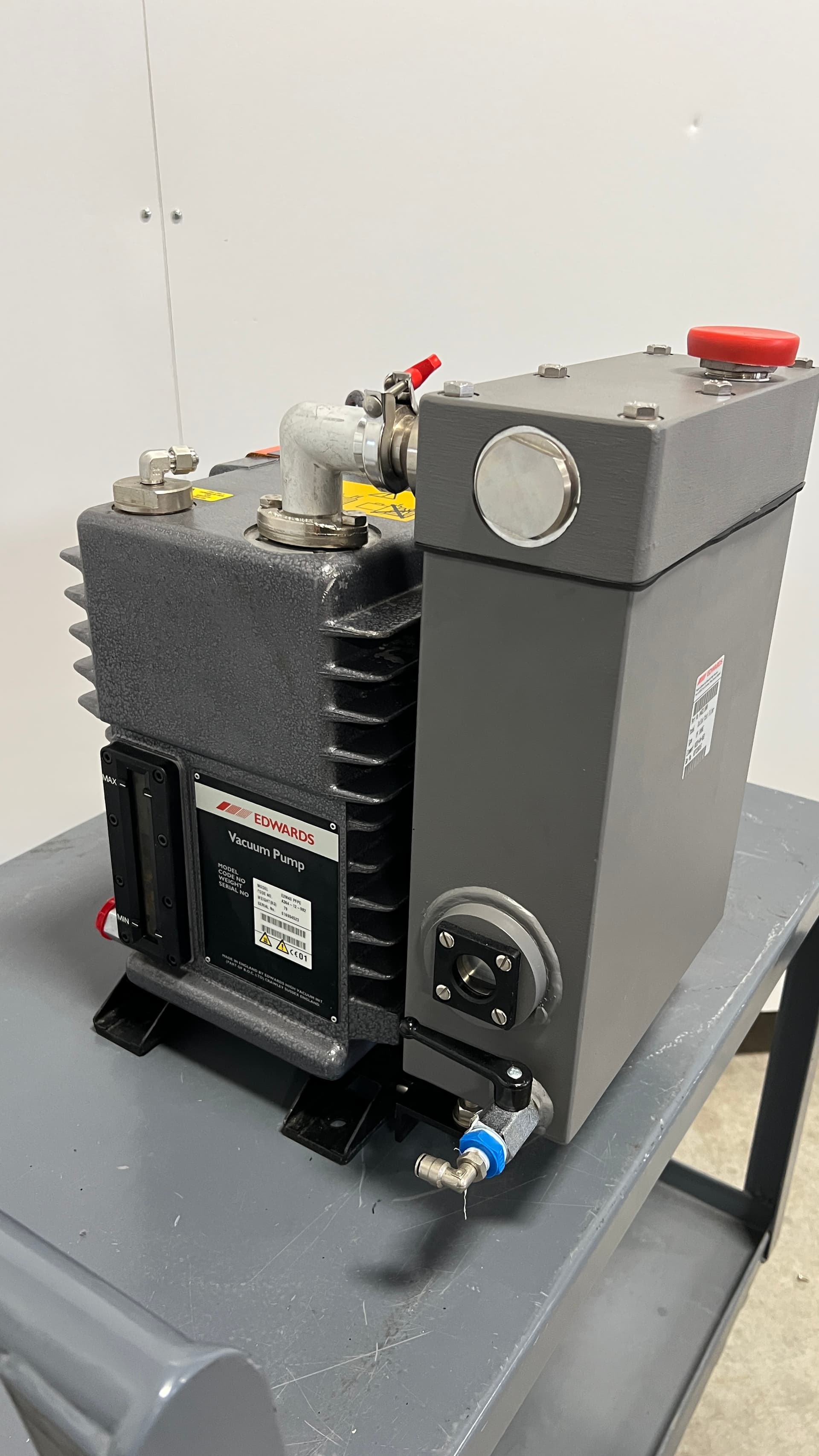

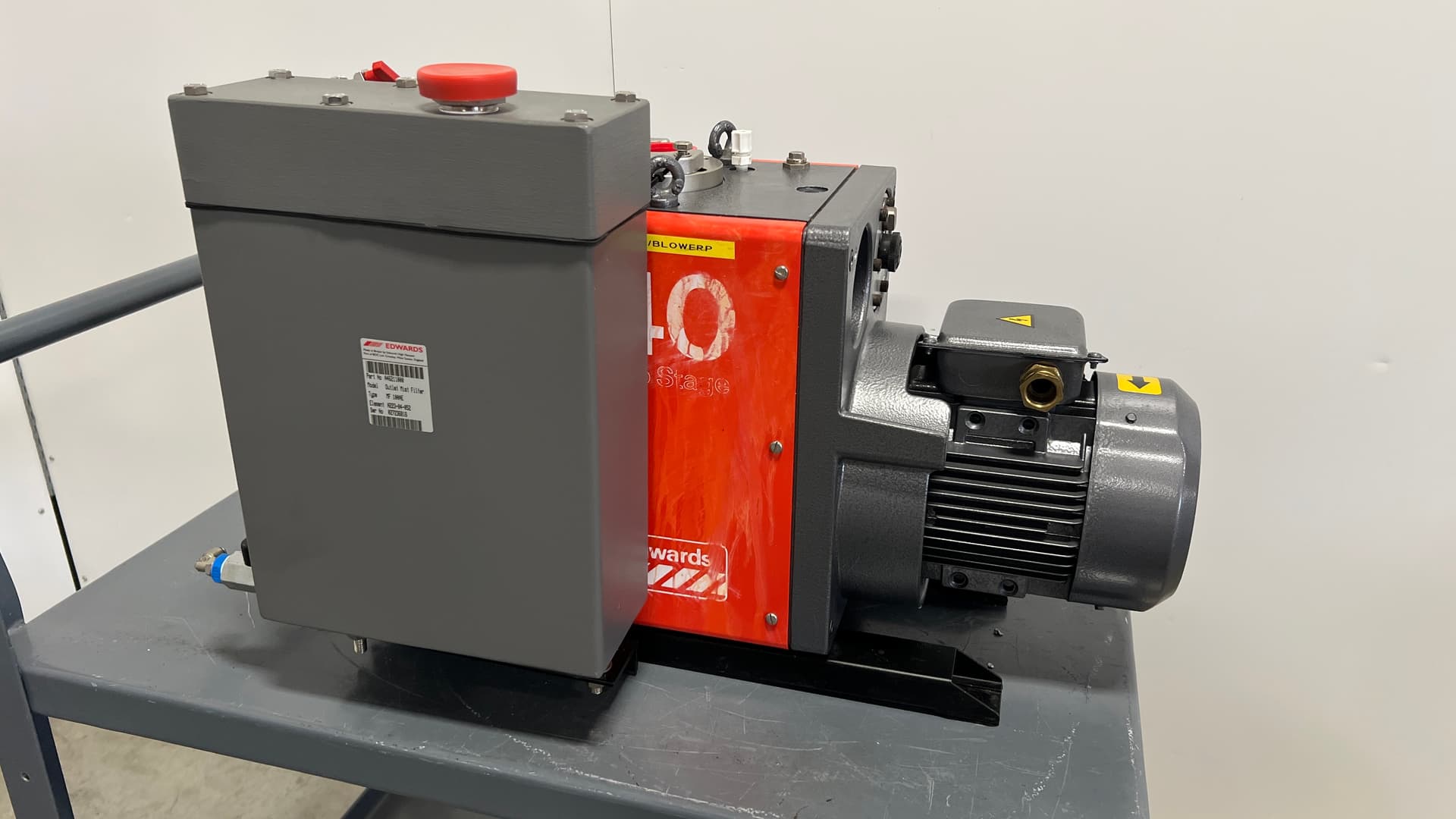

PFPE-prepared two-stage oil-sealed sliding-vane pump
220-240/380-415 V, 50 Hz, 3 phase,
IP55. Outlet mist filter: MF 100AE, element A223-04-052.
Pump tested and needs to be rebuilt. Motor spins.
Technical specifications
| Model | E2M40 PFPE |
| Code No. | A364-12-982 |
| WEIGHT(KG) | 79 |
| Serial No. | 016904523 |
| Product type | two-stage, oil-sealed, sliding-vane vacuum pump |

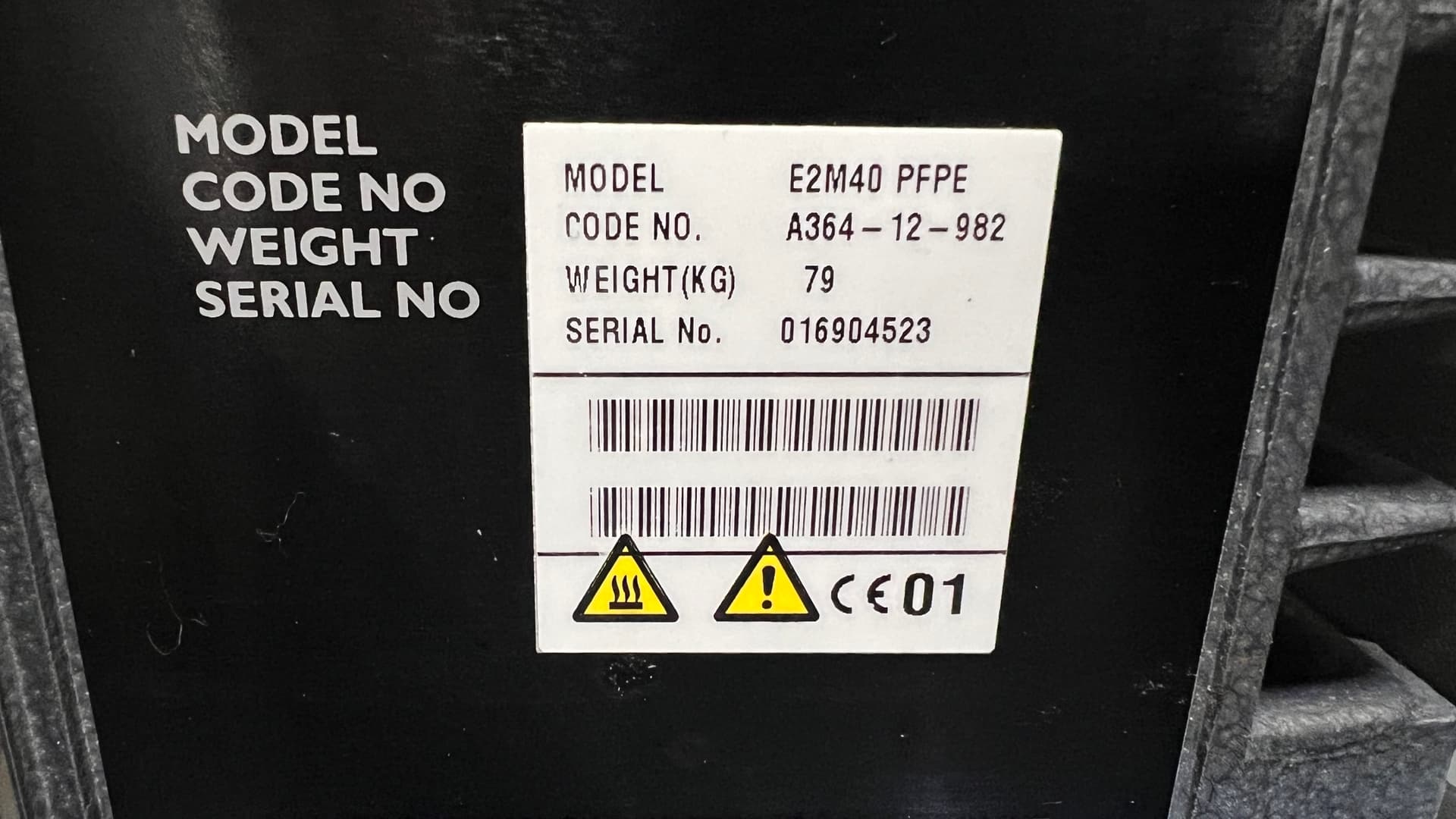

Pump Specifications
| Model | E2M40 PFPE |
| Code No. | A364-12-982 |
| WEIGHT(KG) | 79 |
| Serial No. | 016904523 |
| Product type | two-stage, oil-sealed, sliding-vane vacuum pump |

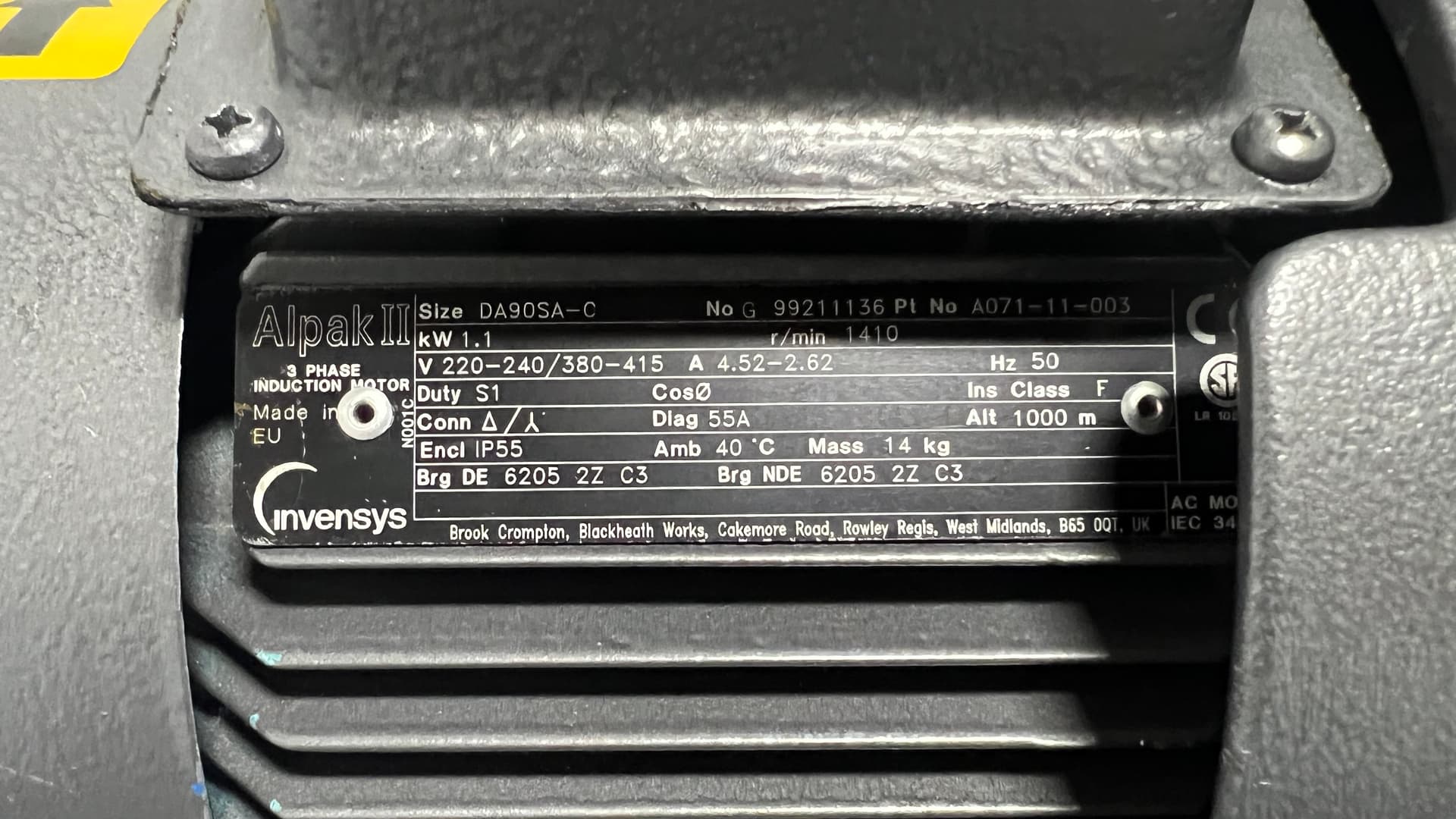

Motor Specifications
| Size | DA90SA-C |
| No | G 99211136 |
| Pt No | A071-11-003 |
| kW | 1.1 |
| r/min | 1410 |
| V | 220-240/380-415 |
| A | 4.52-2.62 |
| Hz | 50 |
| Duty | S1 |
| Ins Class | F |
| Conn | Δ/Y |
| Diag | 55A |
| Alt | 1000 m |
| Encl | IP55 |
| Amb | 40 °C |
| Mass | 14 kg |
| Brg DE | 6205 2Z C3 |
| Brg NDE | 6205 2Z C3 |

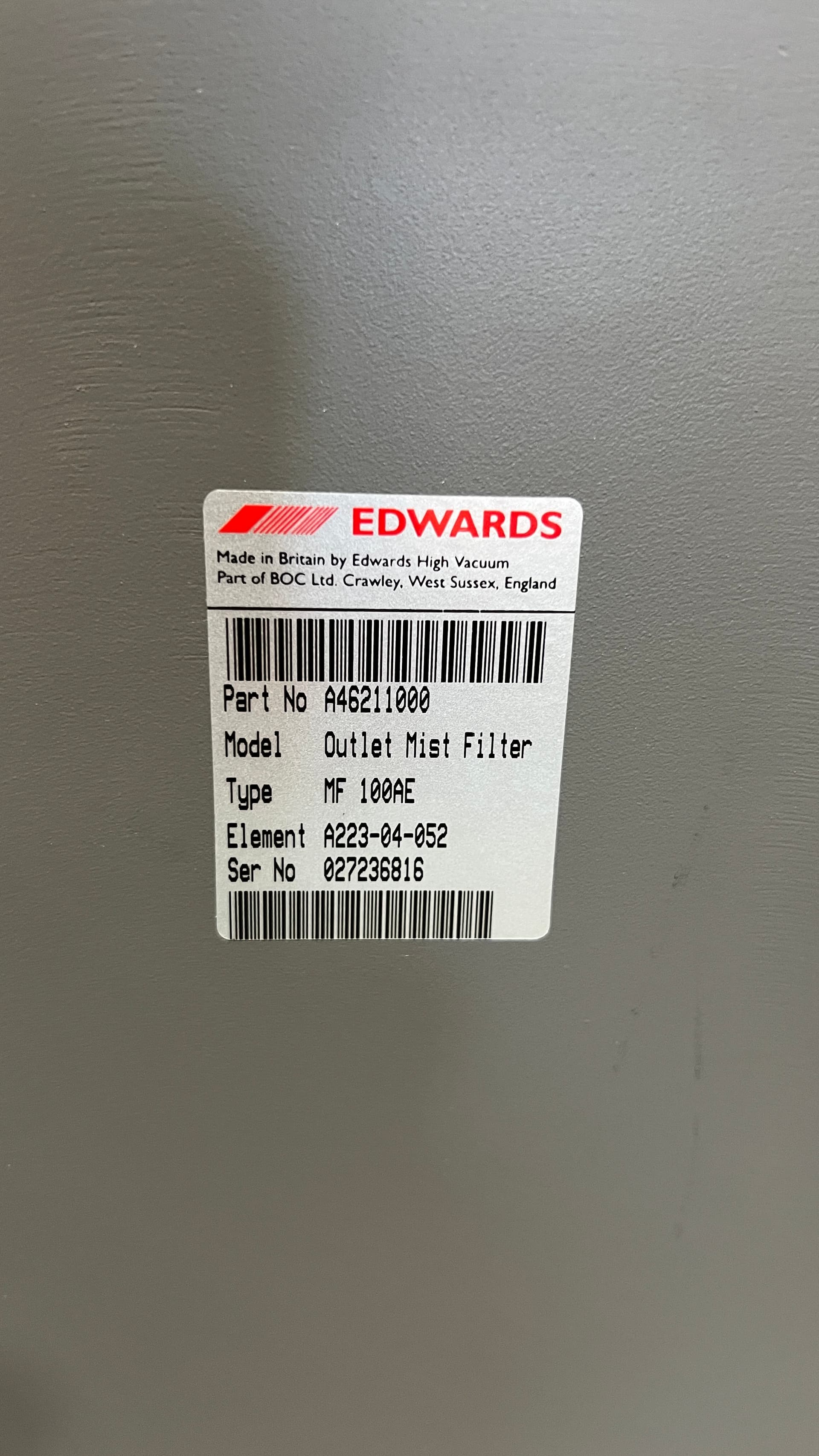

Outlet Mist Filter Specifications
| Part No | A46211000 |
| Model | Outlet Mist Filter |
| Type | MF 100AE |
| Element | A223-04-052 |
| Ser No | 027236816 |
| Classification | Filter / separator |
Condition & testing notes
Inventory intended for repair, parts harvesting, or non-working use cases. It is not tested.
