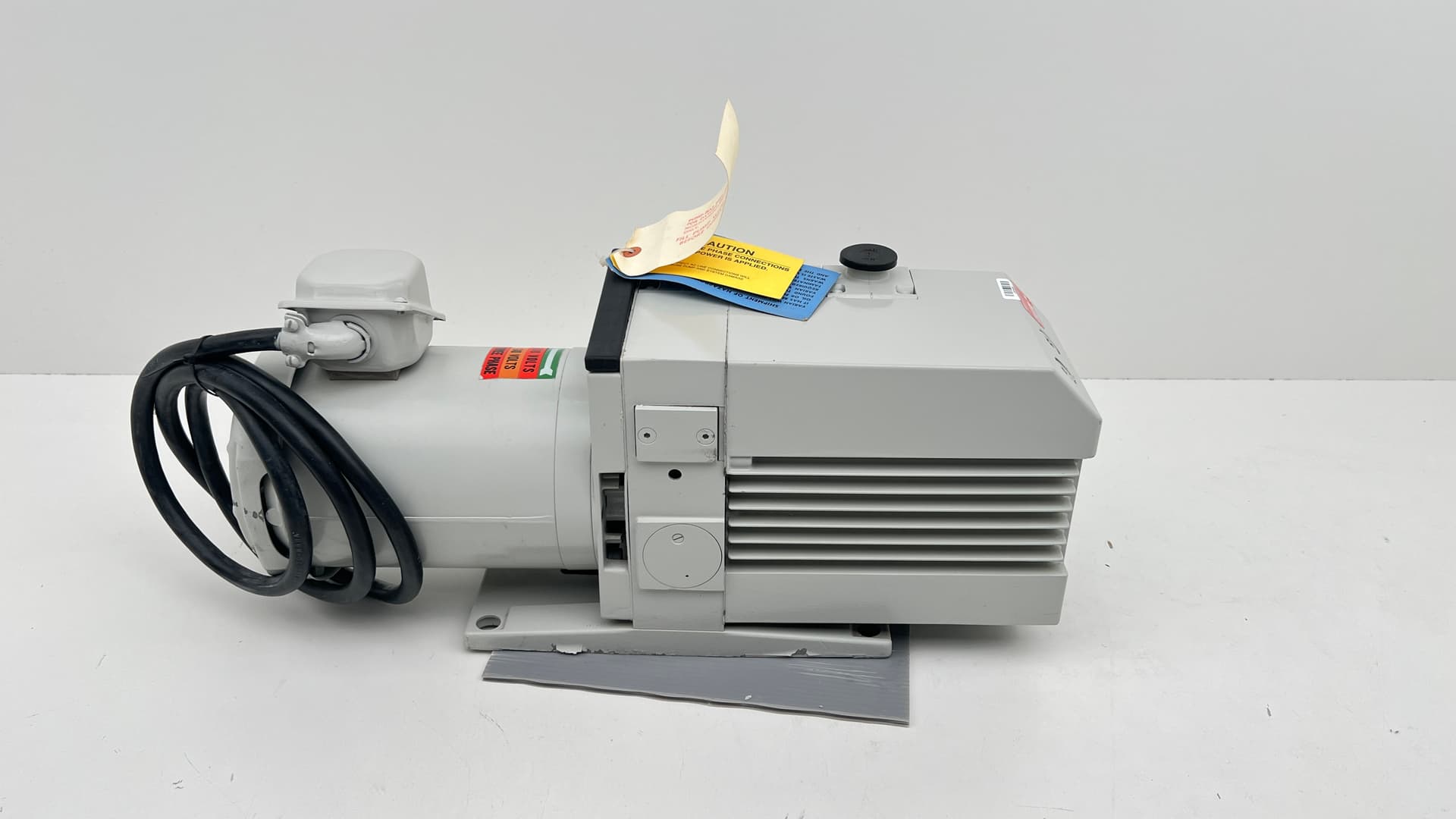

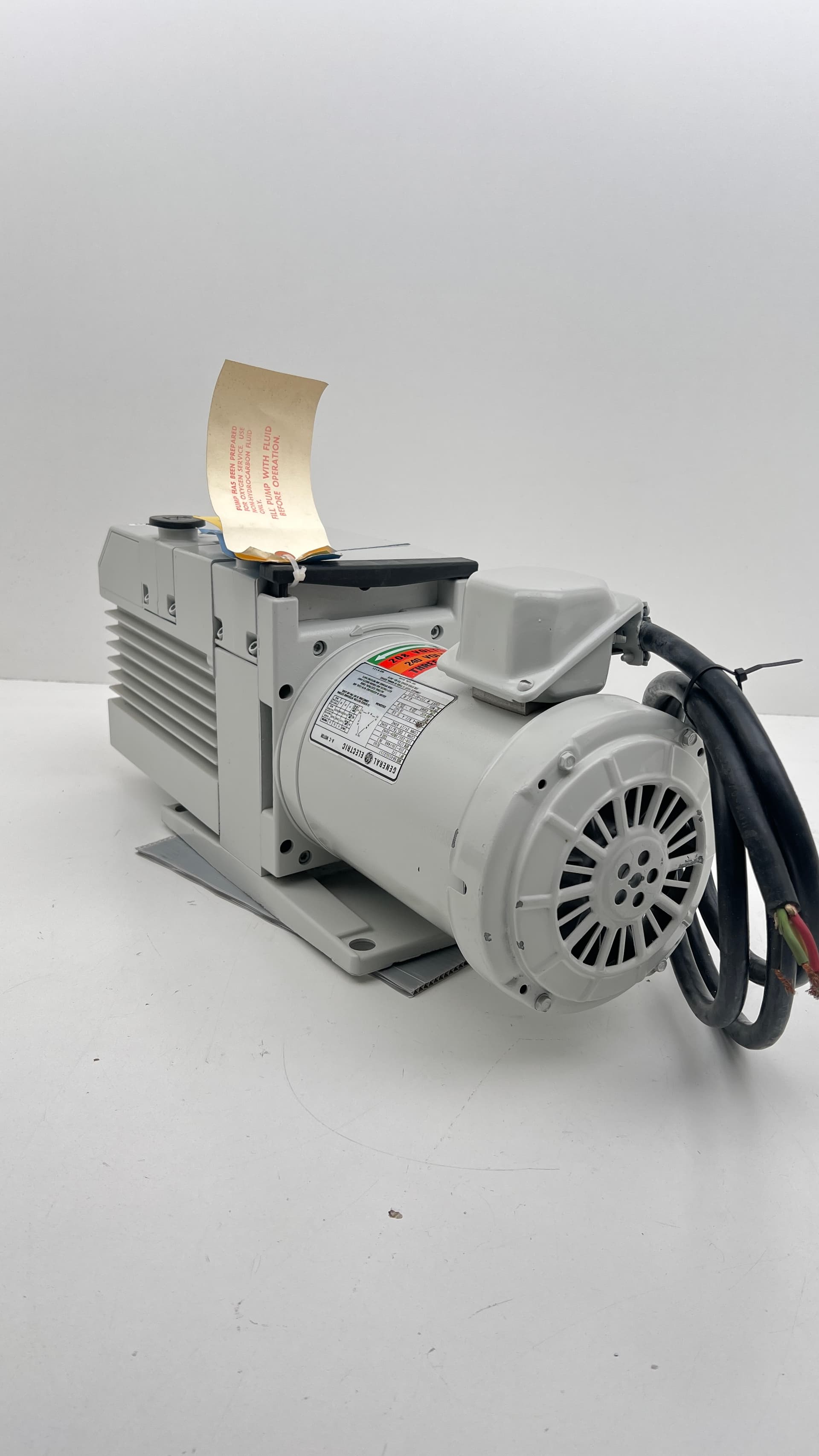

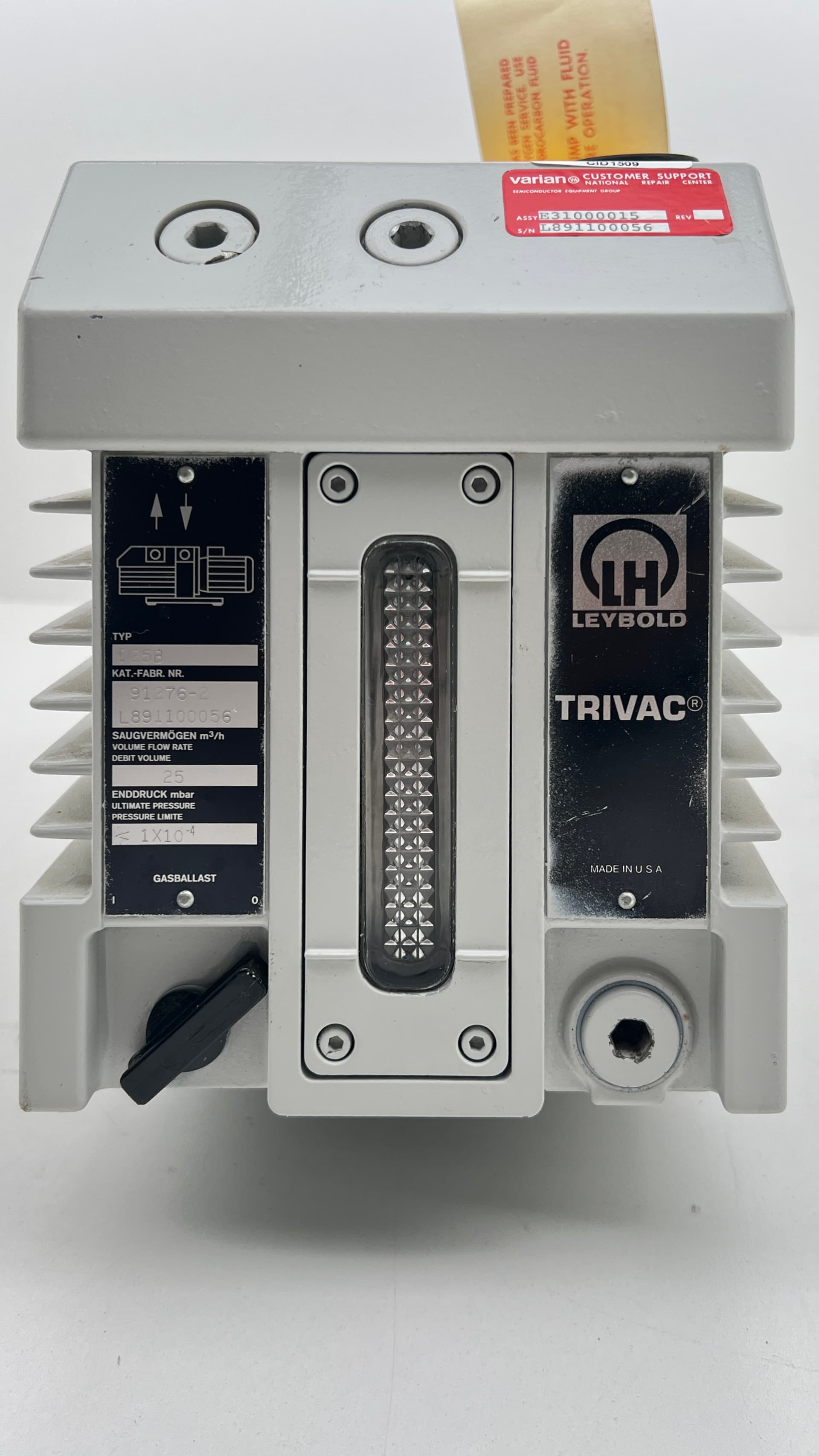

Leybold Oerlikon D25B Two Stage Rotary Vacuum Pump,18-20.9 CFM, Fomblin Prep.
$2,950.0030 day return
- Condition
- Used See details
- Brand
- Leybold Oerlikon
- MPN
- D25B
- SKU
- CID1509
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. UPS parcel within 3 business days of order confirmation; cost calculated at checkout. Shipping policy
- Sale Coverage:
- 30 Day Return: 30-day functional return as listed. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description

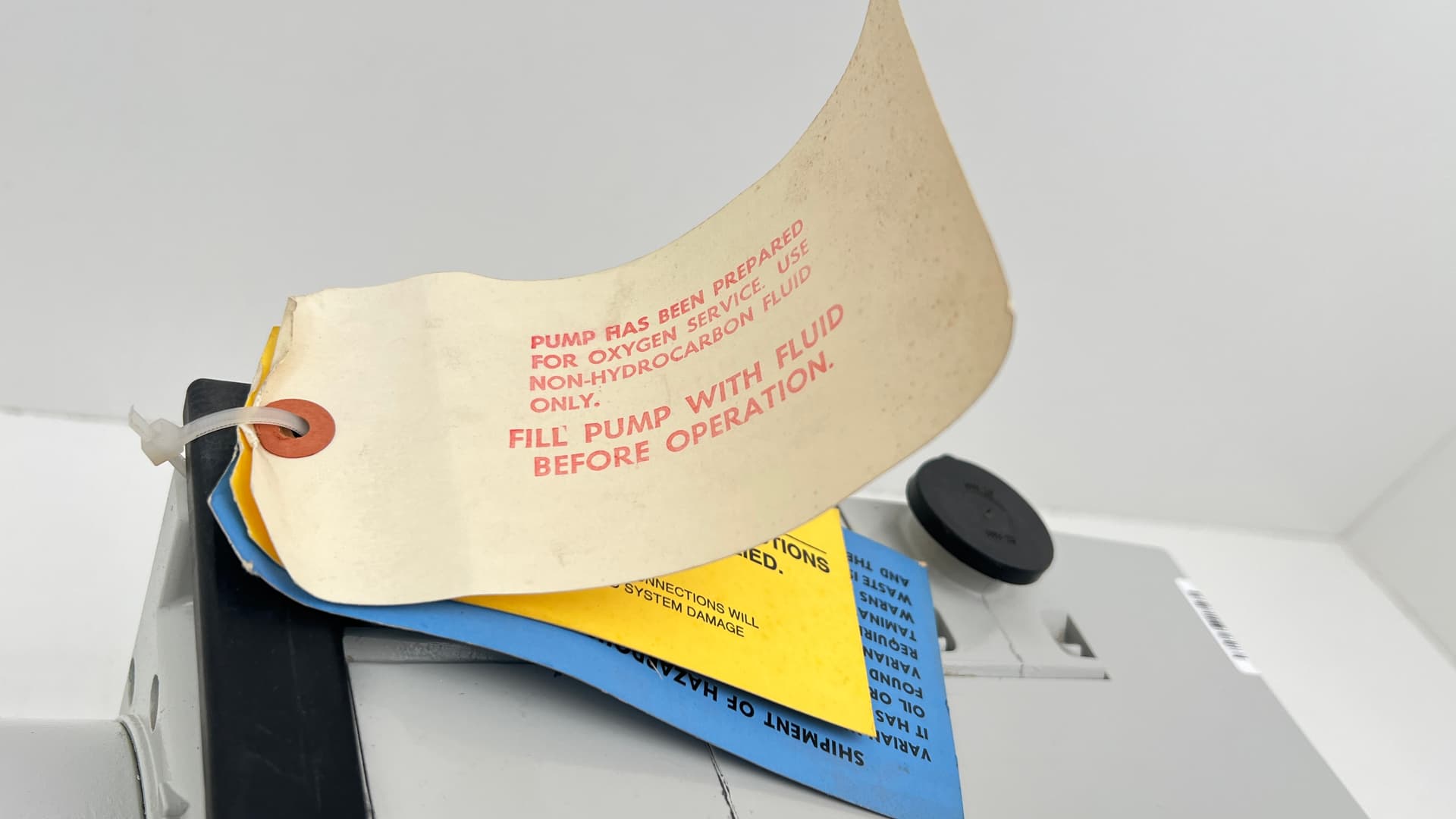

Prepped for Fomblin.

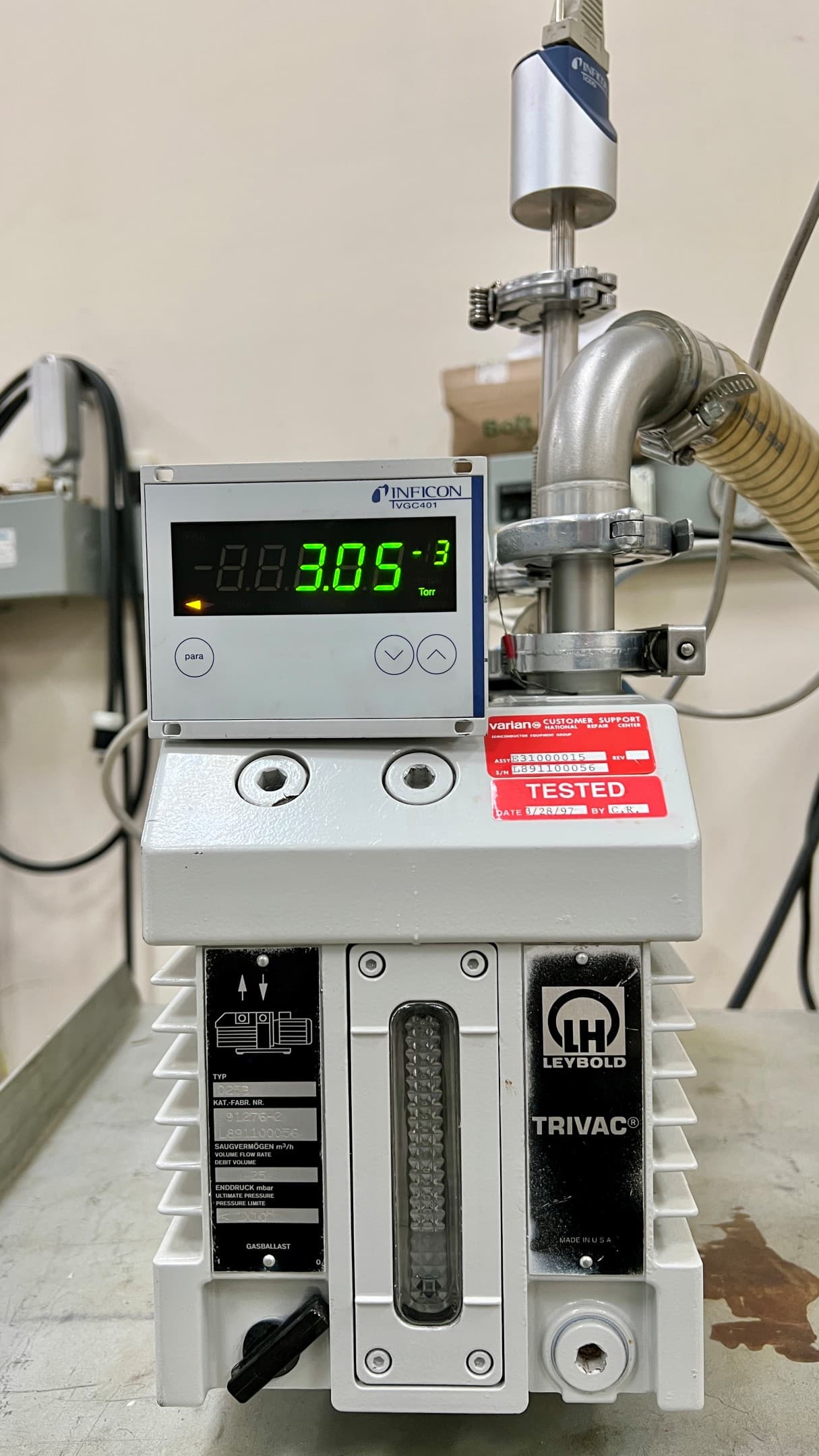

Gauge shown in last photo is for refrence only and is not included with the pump.
Technical specifications
| Pumping Speed | 25.7 m³/h (50 Hz) / 30.8 m³/h (60 Hz) |
| Ultimate Pressure | Down to 2 × 10⁻³ mbar (without gas ballast) |
| Flange Size | DN 25 KF |
| Oil Capacity | 0.6 to 1.4 Liters |
| Weight: Approx | 32.3 kg (71.2 lbs) |
Pump Specifications
| Pumping Speed | 25.7 m³/h (50 Hz) / 30.8 m³/h (60 Hz) |
| Ultimate Pressure | Down to 2 × 10⁻³ mbar (without gas ballast) |
| Flange Size | DN 25 KF |
| Oil Capacity | 0.6 to 1.4 Liters |
| Weight: Approx | 32.3 kg (71.2 lbs) |

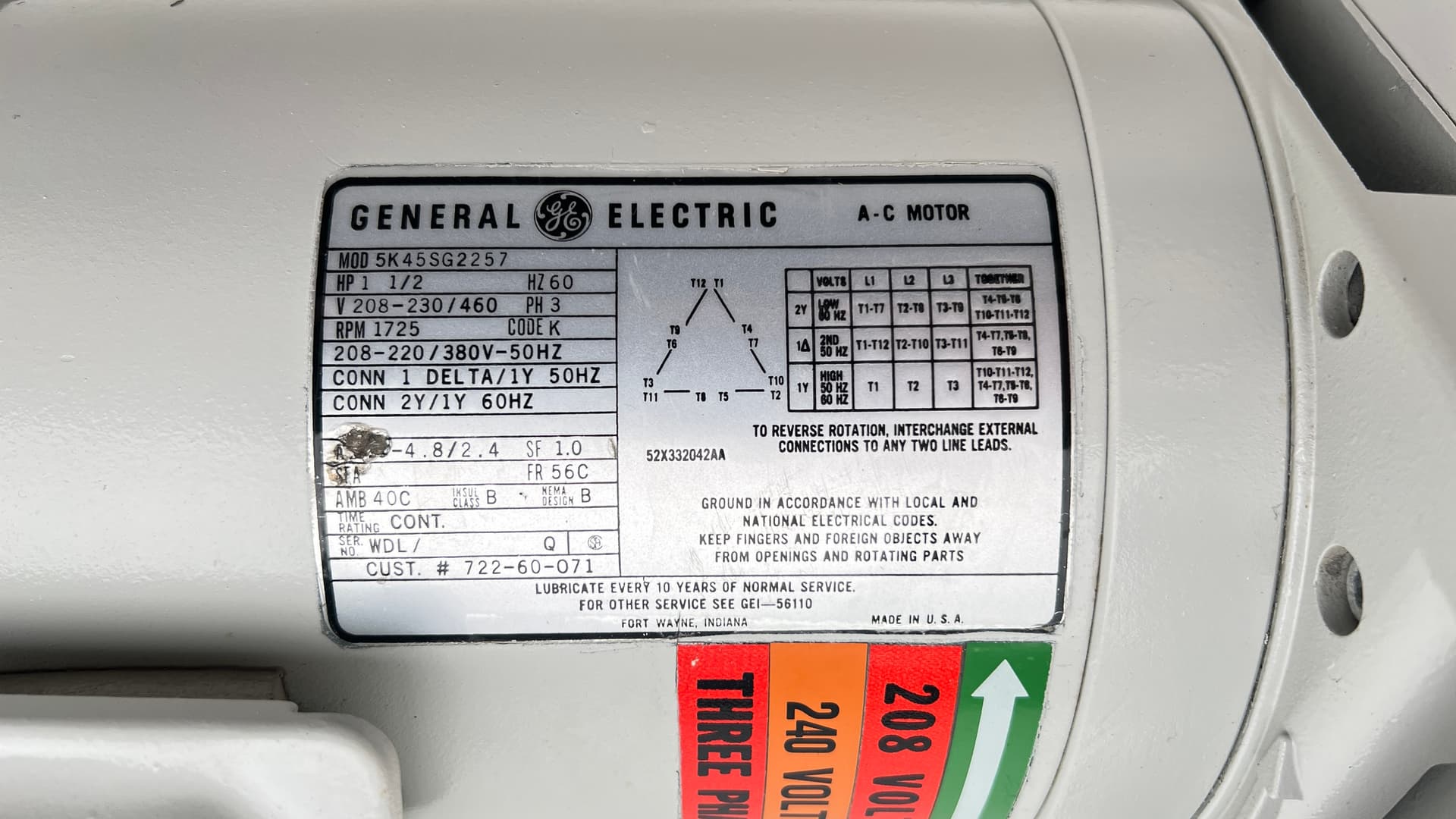

Motor Specifications
| Horse Power | 1 1/2 |
| Voltage | 208-230/460( 60Hz), 208-220/380(50Hz) |
| Phase | 3 Phase |
| RPM | 1725 |
Condition & testing notes
Previously in service and offered for secondary-market resale. Item has been tested and found to be working.
