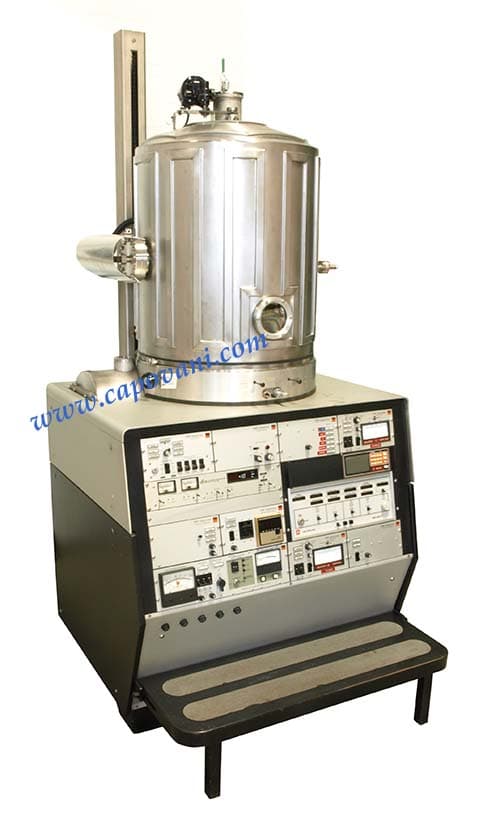

CHA Industries SEC-1000-RAP Electron Beam Evaporator
- Condition
- Used See details
- Brand
- CHA Industries
- MPN
- SEC-1000-RAP
- SKU
- 147905
- Availability
- 1 in stock
Shipping, sale coverage & payments
- Shipping:
- Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
- Lead Time:
- We’ll confirm exact timing when we send your quote.
- Sale Coverage:
- Working & Warranted: 90-day warranty. View terms
- International Orders:
- Case by case; export controls may affect eligibility. Contact us
- Payments:
- Credit card via Stripe, or purchase order. Payment Information
- Independent Reseller:
- Capovani is not an authorized distributor or representative of the original manufacturer.
Shop with confidence
Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani
Item description
Control system will be upgraded to Ferrotec automatic vacuum and E-Beam control with CV6 solid state power supply when sold. Inquire about current lead time, please.
https://e-beam.ferrotec.com/products/e-beam-controllers/ferrovac-vacuum-controller/
https://e-beam.ferrotec.com/products/e-beam-controllers/temebeam-ebc-integrated-controller/

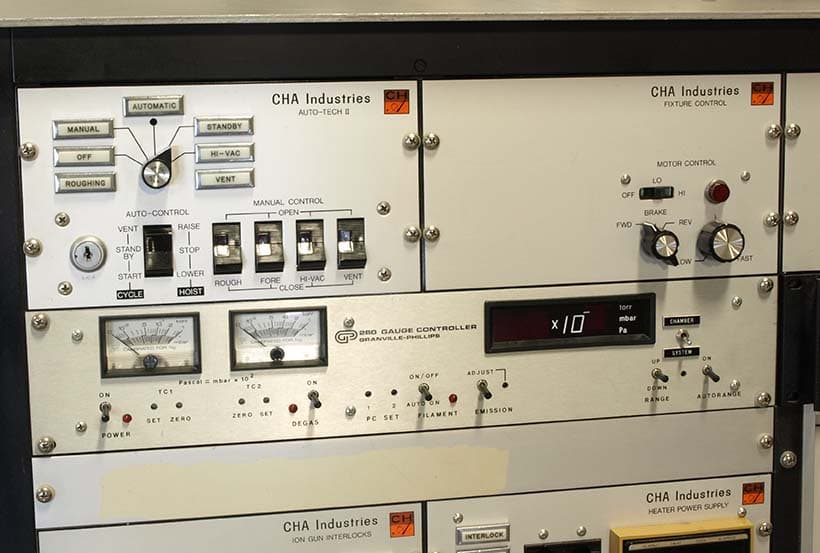

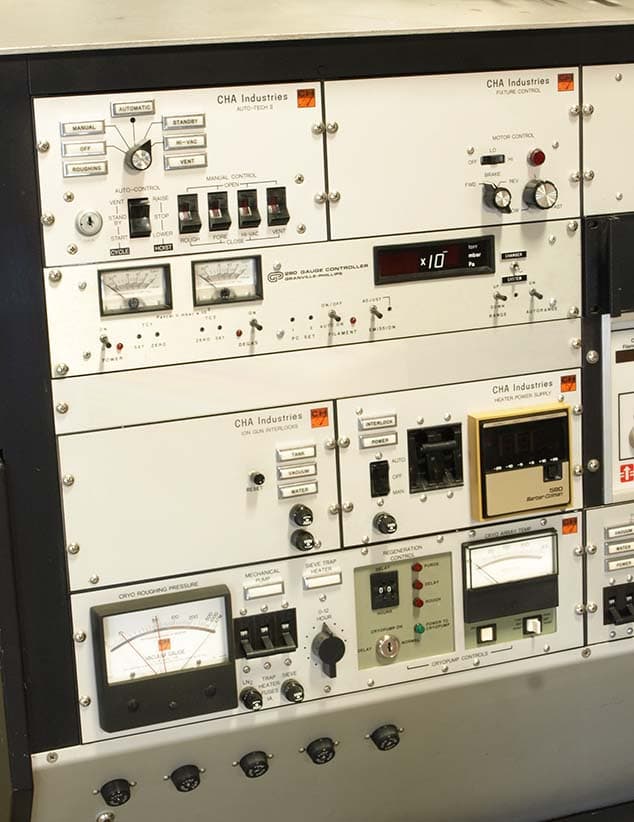

Auto-Tech II Valve Sequence Control
Motorized Hoist Assembly, 1/2HP
Six Pocket Ebeam Source--Temescal STIH-270-2MB6

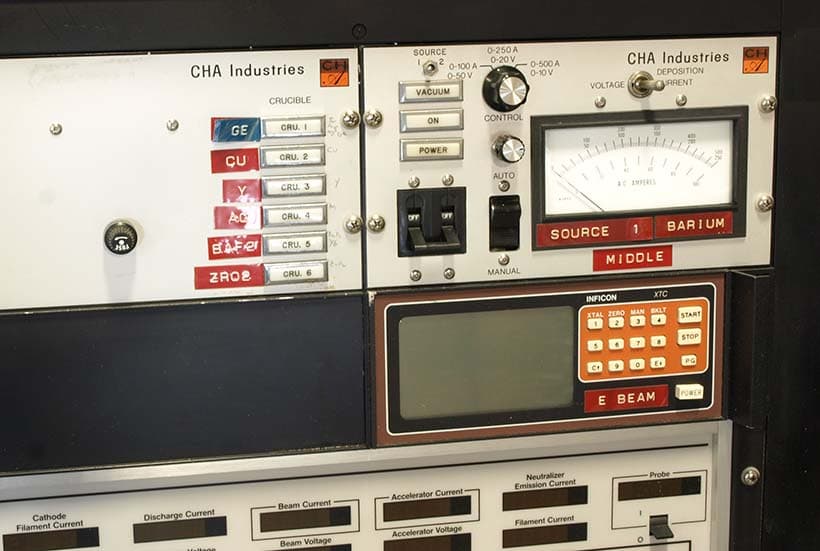

Inficon XTC Deposition Process Controller, Two Crystals Installed

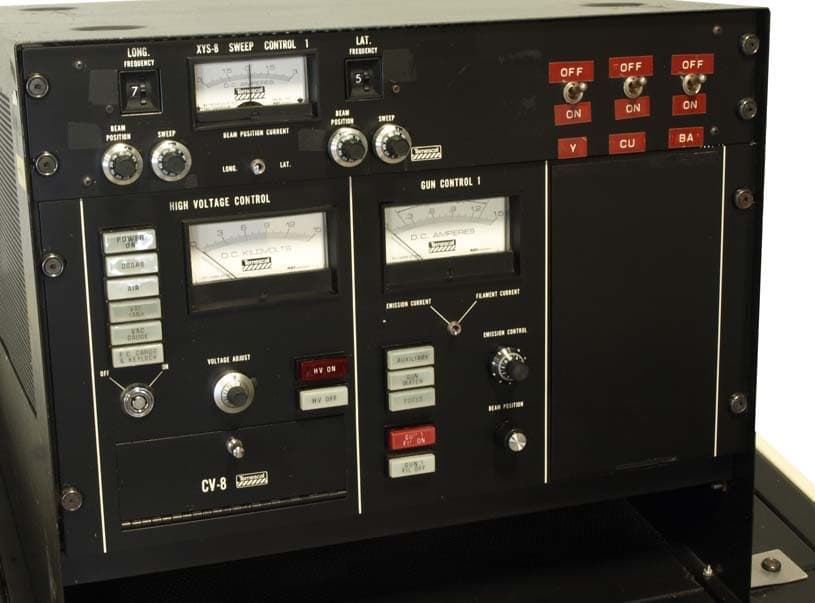

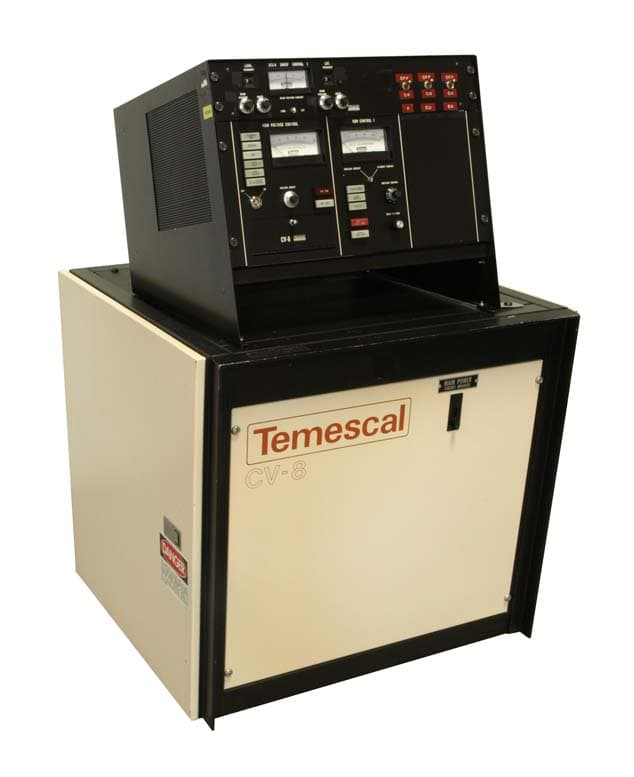

Temescal CV 8 Ebeam Power Supply, 8kV output

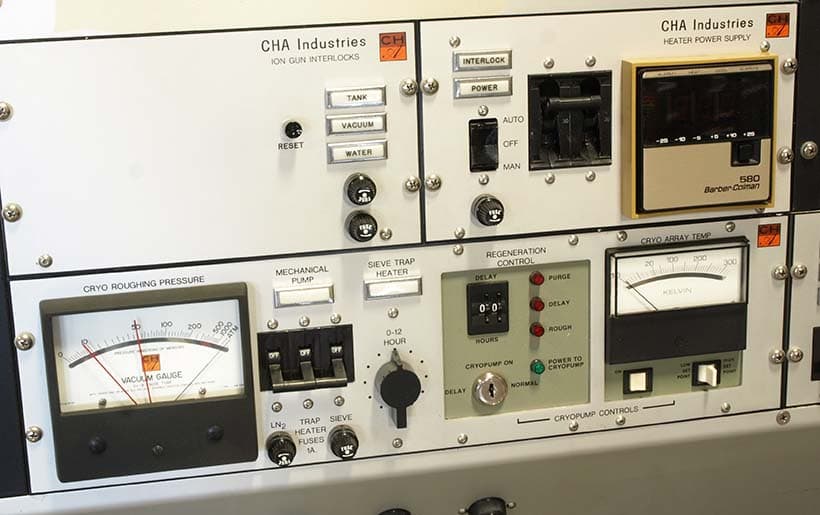

6kW Substrate Heater Supply w/ 6kW Heater Array
(2) Single Resistance Sources w/ 2kW Power Supply

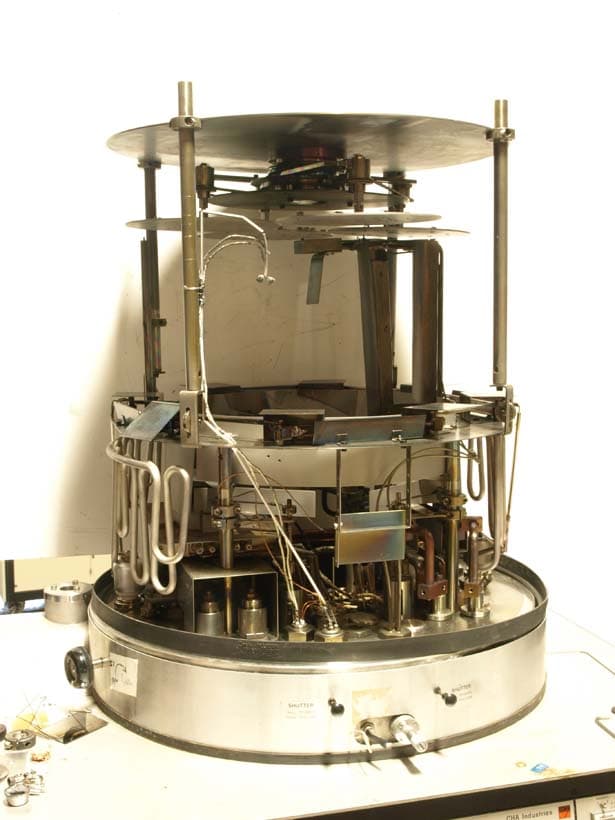

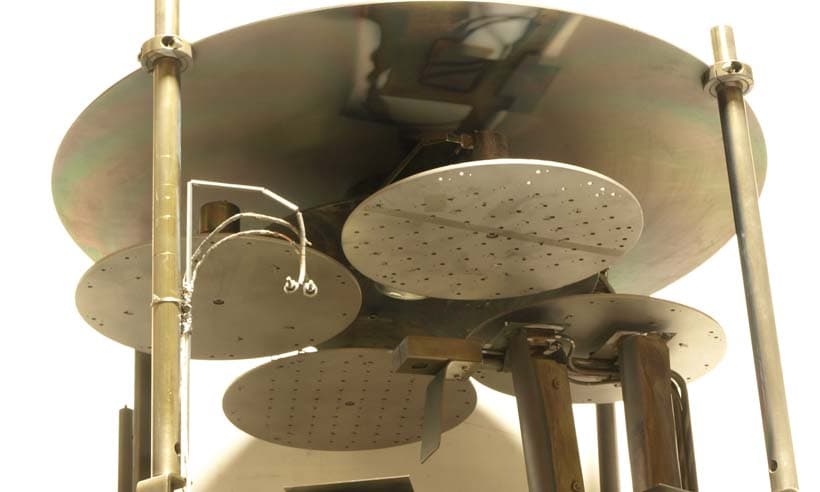

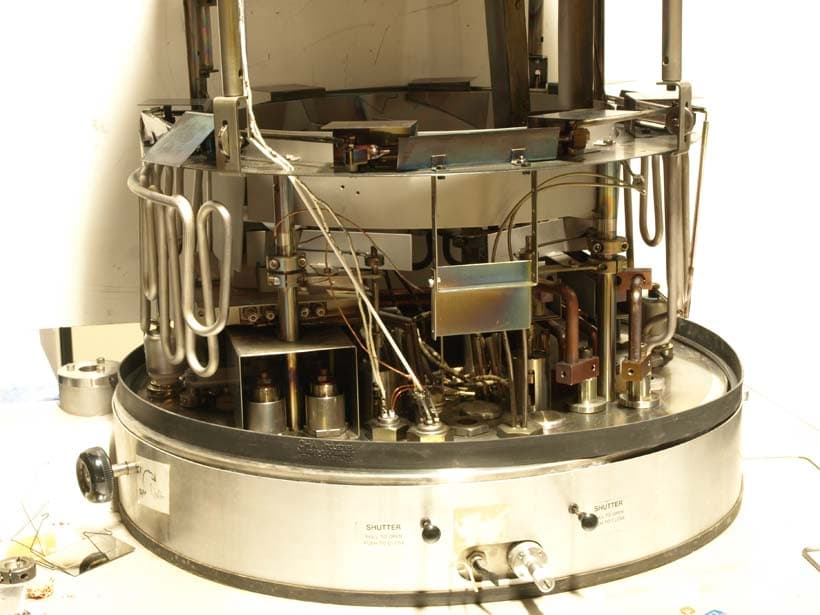

8.5" Dia. Flat Plate Planetary Fixturing With Spring Clip Specimen Retainers--Temescal Series TP-2
25.5" Stainless Steel Bell Jar , Water Cooled, (1) Viewport, (2) 2-3/4" CF Flanges
Manual Shutter Assembly
Manual Pocket Rotation
Serpentine Cryocoil Assembly

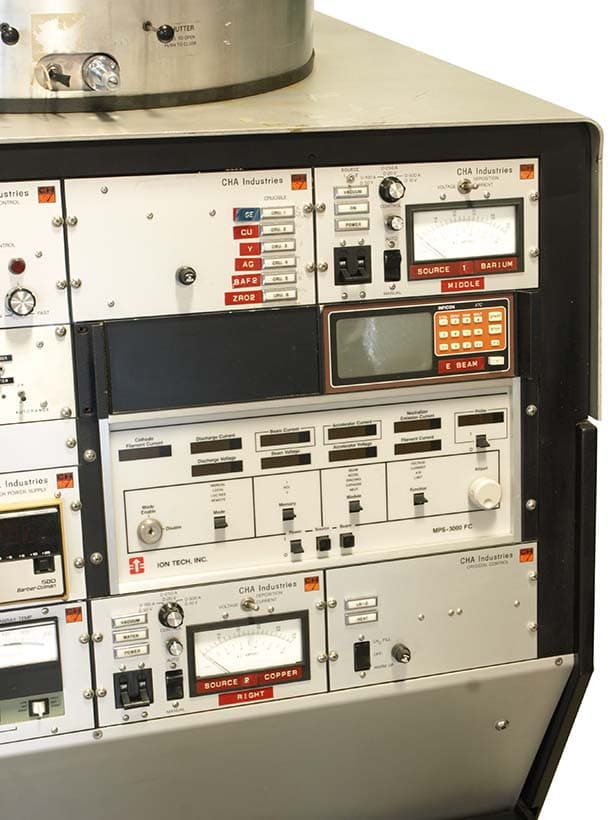

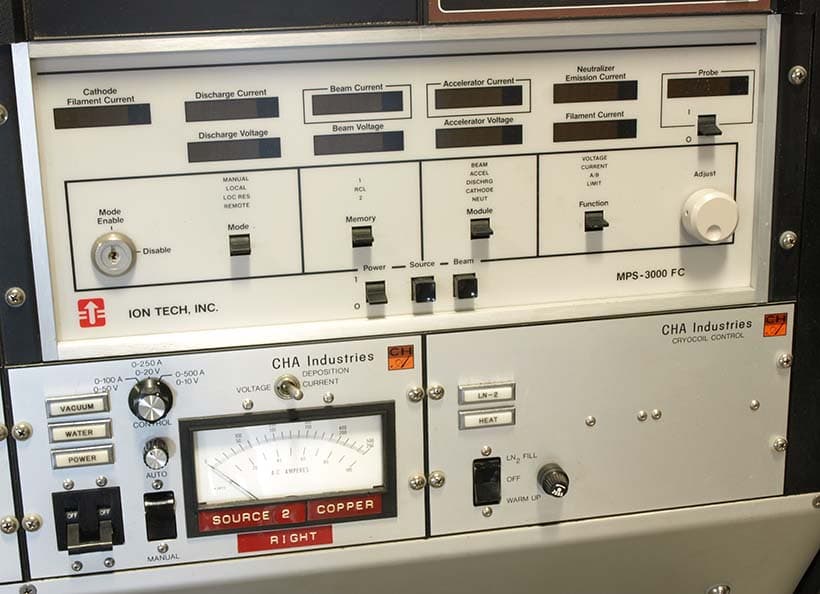

NB: The ION Tech power supply shown in photos is NOT included.
Technical specifications
| Vacuum System | Cryo Pumped |
| Vacuum System | CTI 10 Cryopump LN2 Cold Trap Model MPT-300 Molecular Sieve Mechanical Pump Trap (100 Watt) CTI 8500 Compressor Edwards E2M40 Mechanical Pump |
| Load Lock Included | No |
| Gas Inputs | One |
| Gas Input Control | Other |
| Substrate Heaters | Yes |
| Film Thickness Monitor | Yes |
| Power Requirements | 120/208 V 110.0 A 60 Hz 3 Phase |
| Weight | 1,684 lb (764 kg) |
E Beam Power Supply
| Number of Guns Controlled | 1 |
| Lateral/Longitudinal Beam Sweep | Temescal Sweep Control |
| Electron Source Type | Six Pocket |
| Crucible Size | 15.00 cc (0.92 cu in) |
Exterior Dimensions
| Width | 43.000 in (109.2 cm) |
| Depth | 48.000 in (121.9 cm) |
| Height | 96.000 in (243.8 cm) |
Condition & testing notes
Previously in service and offered for secondary-market resale.
