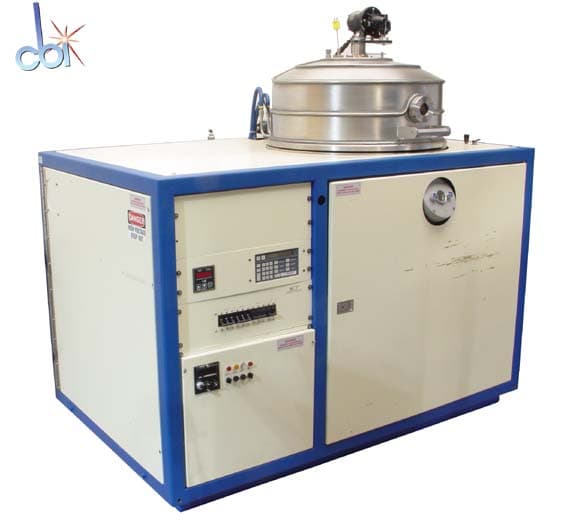

Temescal VES-2550 High Volume E Beam Evaporator

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Temescal
MPN
VES-2550
SKU
40300
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

(4)1000 Watt substrate heaters

Leybold IC/5 deposition controller w/dual crystal monitor

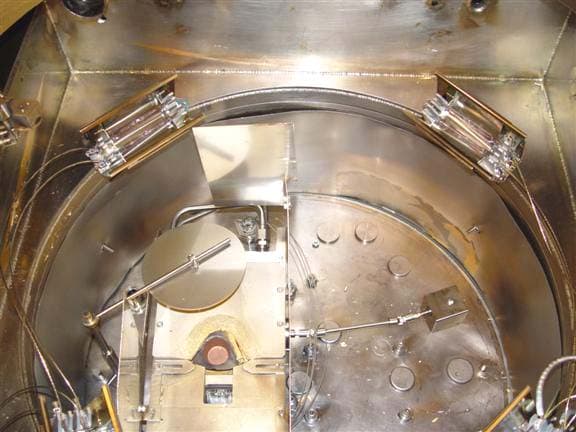

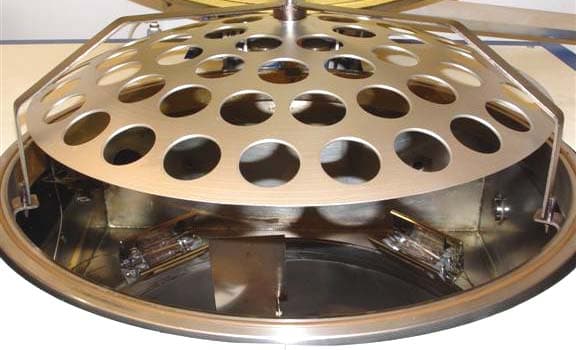

Deposition chamber

  • Water cooled

  • 25.5"dia x 12"high

  • Source Chamber

  • Pnuematically actuated

  • 27.5"dia

  • Can accomodate upto three sources

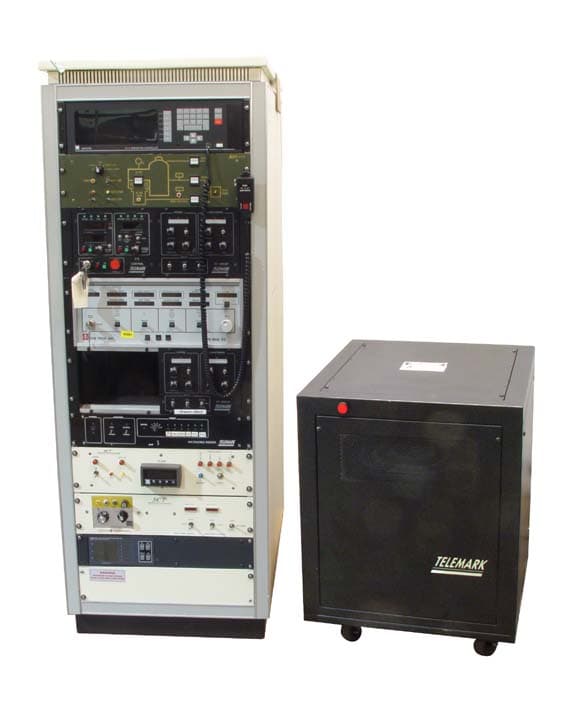

Control system

  • Control system will be upgraded to Ferrotec automatic vacuum and E-Beam control with CV6 solid state power supply when sold. Inquire about current lead time, please.

  • https://e-beam.ferrotec.com/products/e-beam-controllers/ferrovac-vacuum-controller/

  • https://e-beam.ferrotec.com/products/e-beam-controllers/temebeam-ebc-integrated-controller/

Technical specifications

Vacuum SystemCryo Pumped
Vacuum SystemCTI On Board 10 High Vac Cryo Pump Granville Philips 307 Ion gauge controller
Load Lock IncludedNo
Gas InputsOne
Substrate HeatersYes
Film Thickness MonitorYes
Residual Gas AnalyzerNo
Weight1,900 lb (862 kg)

E Beam Power Supply

Power Supply TypeTetrode Tube
High Voltage Minimum6 kV
High Voltage Maximum10 kV
Process Control Voltage Minimum0 Volts DC
Process Control Voltage Maximum10 Volts DC
Number of Guns Controlled1
Electron Source TypeSix Pocket

Exterior Dimensions

Width64.000 in (162.6 cm)
Depth40.000 in (101.6 cm)
Height72.000 in (182.9 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.
