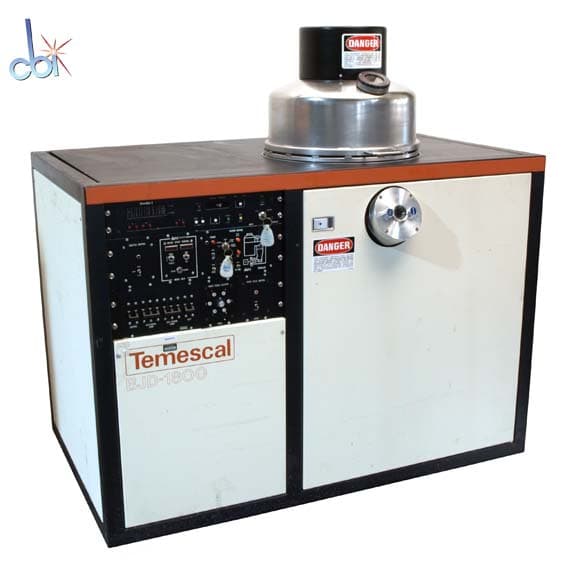

Temescal BJD 1800 E-Beam Evaporator

Quoted on requestWorking & warranted

Brand: Temescal
MPN: BJD-1800
SKU: 87979
Availability: 1 in stock

Ask a question?

Item description

Includes

Model TP-8- Lift-Off Substrate Fixture.

Single dome configured for 4" wafers

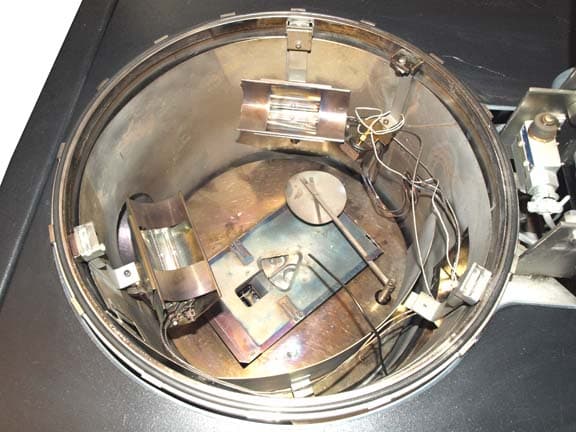

18" in diameter x 9" high stainless steel substrate dome chamber

4" veiw port

Airco Temescal VersaVac 2

Thermocouple/Ionization gauge

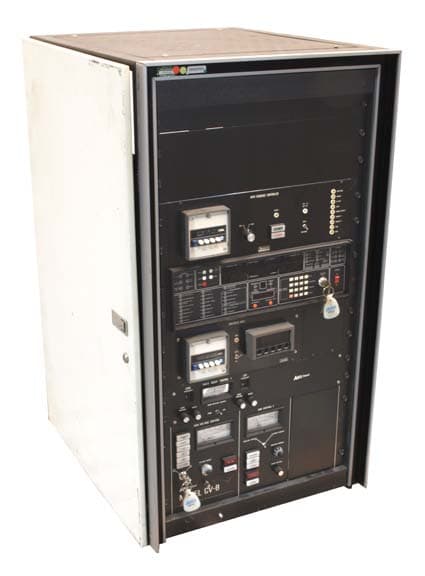

Airco Temescal CV-8A Power Supply

Airco Temescal XYS-8 Sweep Control

NB: Temescal Auto Sequence Controller shown is not included

Specifications

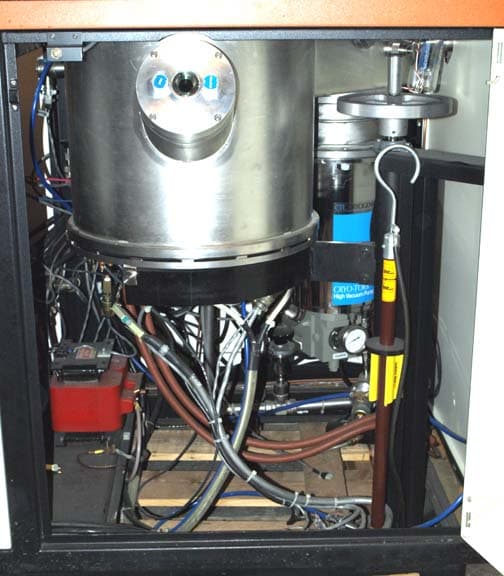

Vacuum System: Cryo Pumped
Vacuum System: CTI Cryotorr 8 Suitable Cryo Compressor Included. 30 CFM Mechanical Vacuum Pump. (Backing Pump)
Load Lock Included: No
Substrate Heaters: Yes
Film Thickness Monitor: Yes
Residual Gas Analyzer: No
Power Requirements: 208 V 70.0 A 60 Hz 3 Phase

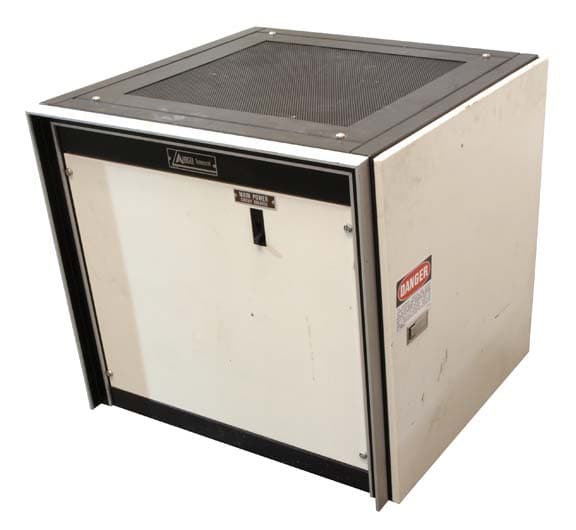

E Beam Power Supply

Power Supply Type: Triode Tube
High Voltage Minimum: 8 kV
Number of Guns Controlled: 1
Electron Source Type: Six Pocket
Crucible Size: 7.00 cc (0.43 cu in)

Exterior Dimensions

Width: 60.000 in (152.4 cm)
Depth: 44.000 in (111.8 cm)
Height: 56.000 in (142.2 cm)

Working & Warranted
Working & Warranted means the item has been inspected by Capovani engineers to confirm functional condition and is sold with a 90 day warranty.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
