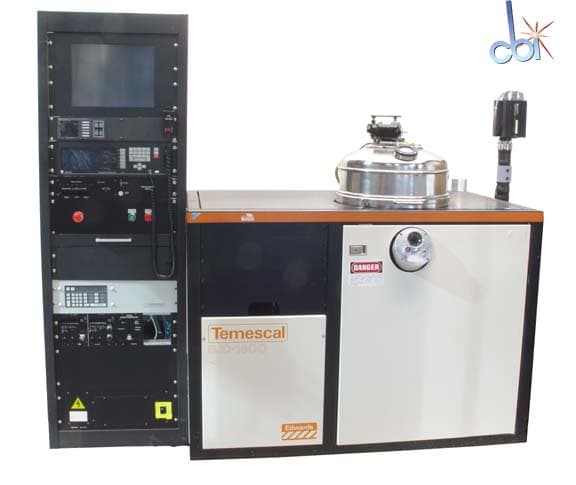

Temescal BJD 1800 E-Beam Evaporator

Quoted on requestWorking & warranted
Condition
Used See details
Brand
Temescal
MPN
BJD 1800
SKU
43846
Availability
1 in stock
Make Inquiry

Shipping, sale coverage & payments

Shipping:
Ships from Scotia, NY. Method, cost and timing confirmed on your quote. Shipping policy
Lead Time:
We’ll confirm exact timing when we send your quote.
Sale Coverage:
Working & Warranted: 90-day warranty. View terms
International Orders:
Case by case; export controls may affect eligibility. Contact us
Payments:
Credit card via Stripe, or purchase order. Payment Information
Independent Reseller:
Capovani is not an authorized distributor or representative of the original manufacturer.
Capovani Brothers Inc.

Shop with confidence

Family-owned since 1988. Equipment stocked in Scotia, NY. About Capovani

Item description

Leybold TSP-TH100 RGA

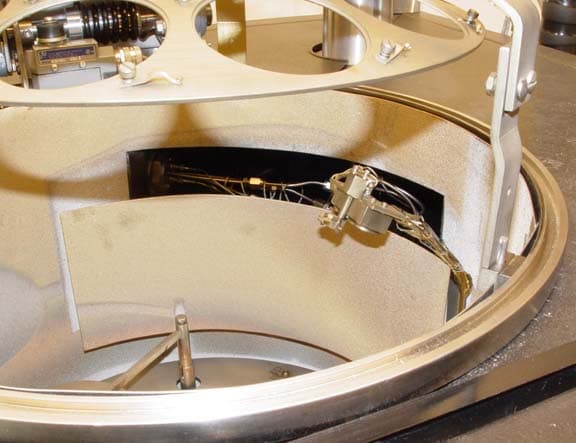

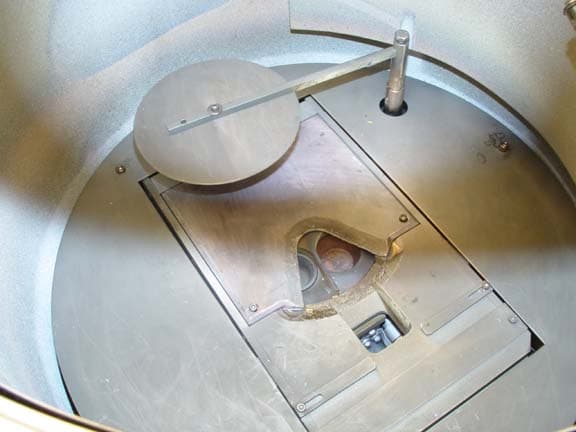

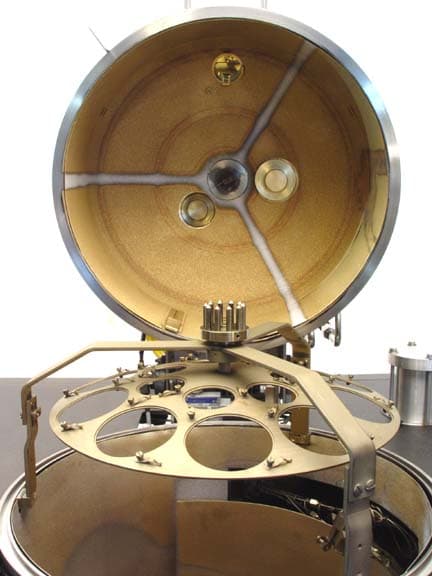

Chamber

  • 18" Dia., water cooled

  • Dual crystal sensor

  • TP 8-18 Substrate fixtrue

  • Single dome configured for (10)3" Wafers and (7) 2" Wafers

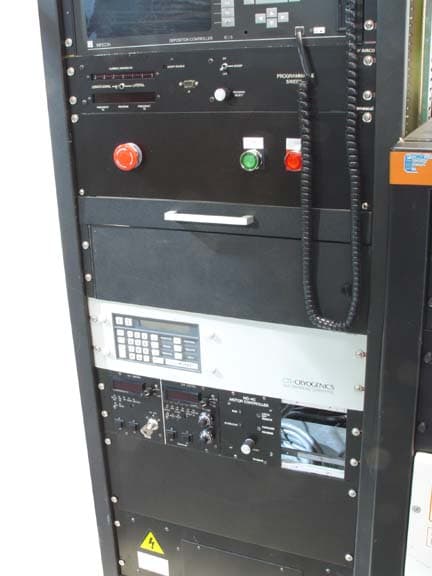

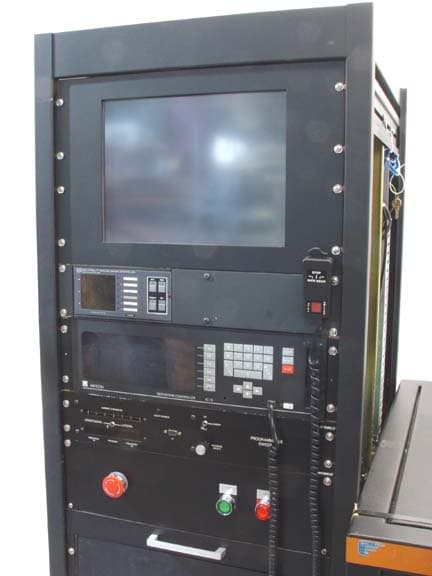

Control system

Control system will be upgraded to Ferrotec automatic vacuum and E-Beam control with CV6 solid state power supply when sold. Inquire about current lead time, please.

https://e-beam.ferrotec.com/products/e-beam-controllers/ferrovac-vacuum-controller/

https://e-beam.ferrotec.com/products/e-beam-controllers/temebeam-ebc-integrated-controller/

Technical specifications

Vacuum SystemCryo Pumped
Vacuum SystemCTI OnBoard 8 cryopump with CTI 8011 OnBoard Controller and CTI SC air cooled Compressor
Load Lock IncludedNo
Film Thickness MonitorYes
Residual Gas AnalyzerYes
Power Requirements208 V 100.0 A 50/60 Hz 3 Phase

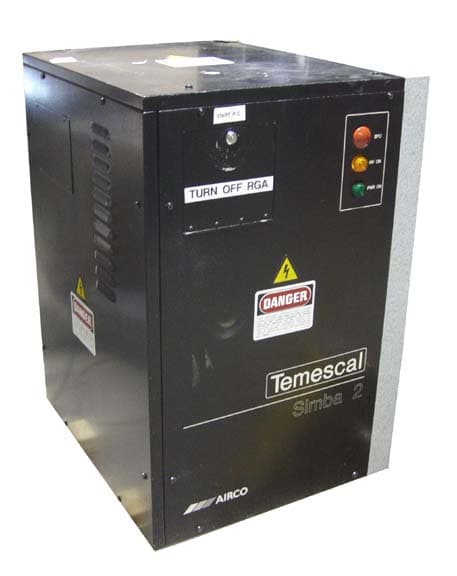

E Beam Power Supply

Power Supply TypeTetrode Tube
High Voltage Minimum3 kV
High Voltage Maximum10 kV
Process Control Voltage Minimum0 Volts DC
Process Control Voltage Maximum10 Volts DC
Number of Guns Controlled1
Lateral/Longitudinal Beam SweepTemescal
Electron Source TypeSix Pocket
Crucible Size10.00 cc (0.61 cu in)

Exterior Dimensions

Width56.000 in (142.2 cm)
Depth34.000 in (86.4 cm)
Height41.000 in (104.1 cm)

Condition & testing notes

Previously in service and offered for secondary-market resale.

How our listings work

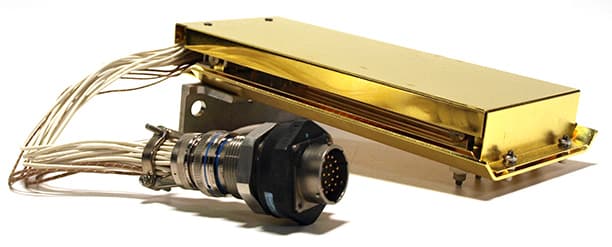

Heraeus Noblelight 09751751 Infrared Emitter Assembly

SKU: 163850

1 in stock
Heraeus Noblelight 09751751 Infrared Emitter Assembly
Working & Warranted
Used
Request Pricing

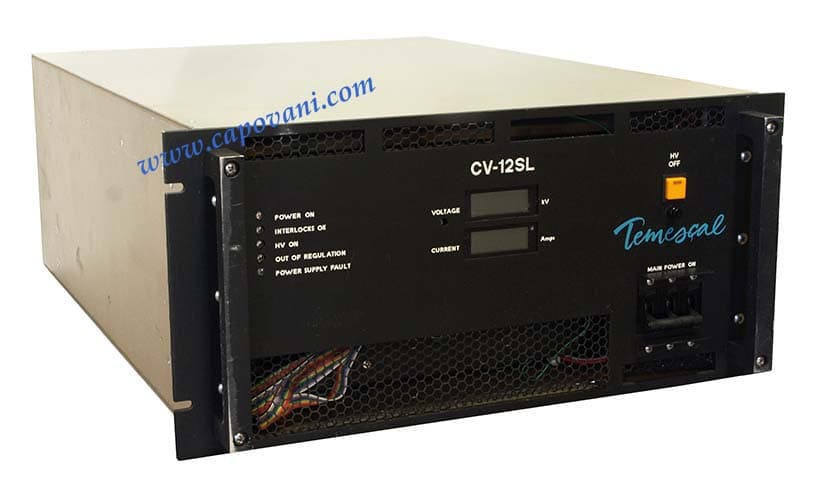

Temescal CV12SL Electron Beam Power Supply

SKU: 155233

1 in stock
Temescal CV12SL Electron Beam Power Supply
Working & Warranted
Used
Request Pricing

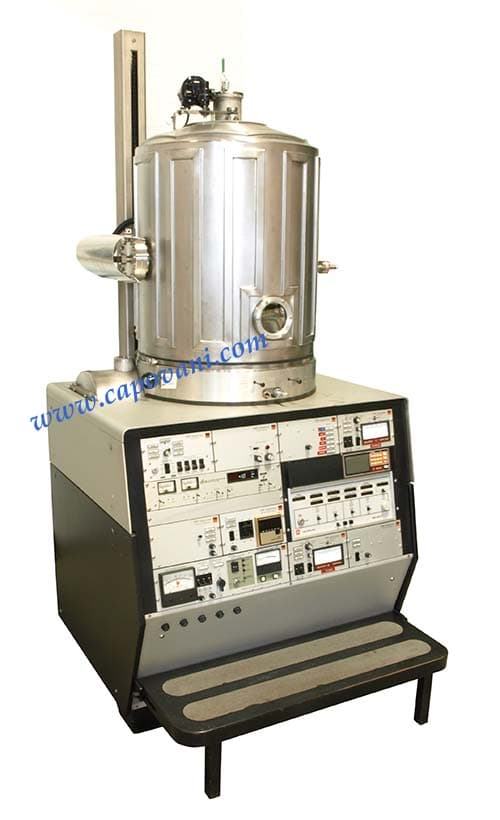

CHA Industries SEC-1000-RAP Electron Beam Evaporator

SKU: 147905

1 in stock
CHA Industries SEC-1000-RAP Electron Beam Evaporator
Working & Warranted
Used
Request Pricing

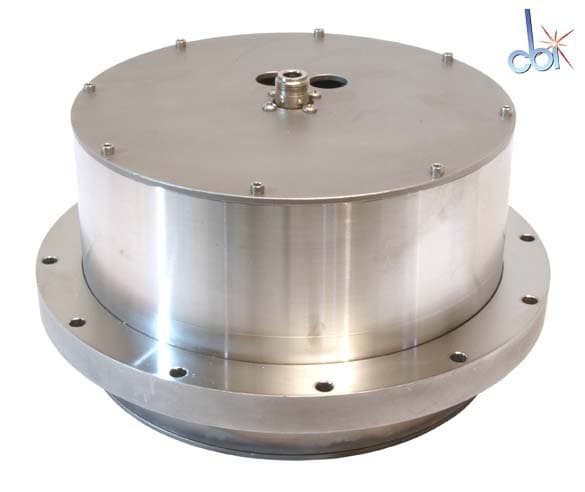

Magnetron Sputtering Cathode 6

SKU: 92507

4 in stock
Magnetron Sputtering Cathode 6
Working & Warranted
Used
Request Pricing

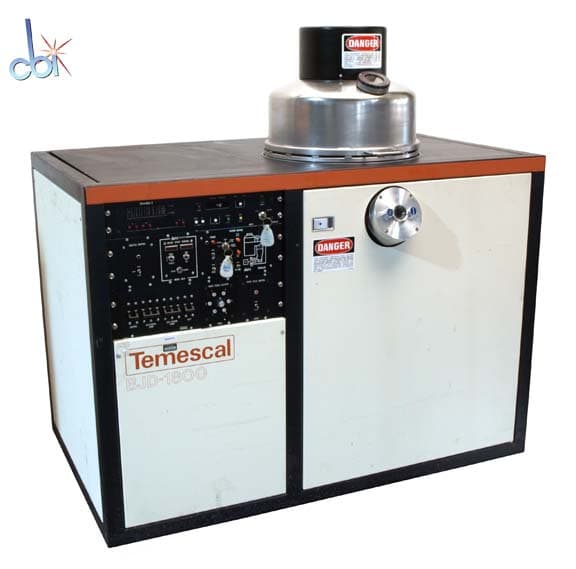

Temescal BJD 1800 E-Beam Evaporator

SKU: 87979

1 in stock
Temescal BJD 1800 E-Beam Evaporator
Working & Warranted
Used
Request Pricing

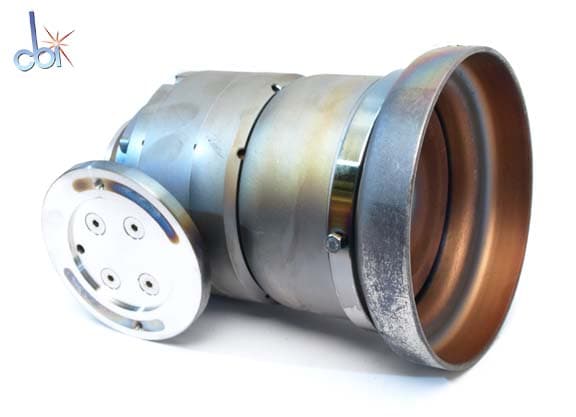

Magnetron PK 90 Magnetron Head

SKU: 85226

1 in stock
Magnetron PK 90 Magnetron Head
Working & Warranted
Used
Request Pricing

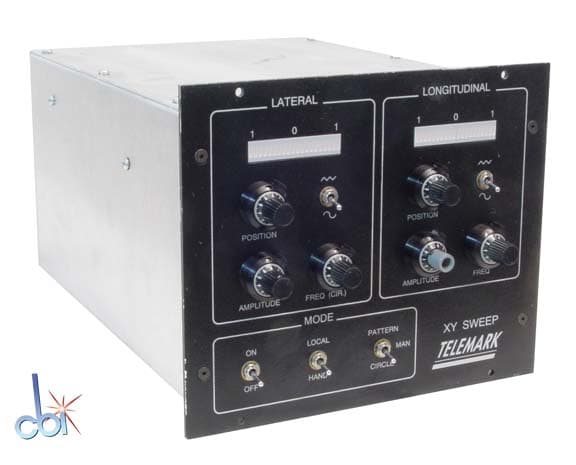

Telemark XY Sweep Control

SKU: 83849

2 in stock
Telemark XY Sweep Control
Working & Warranted
Used
Request Pricing

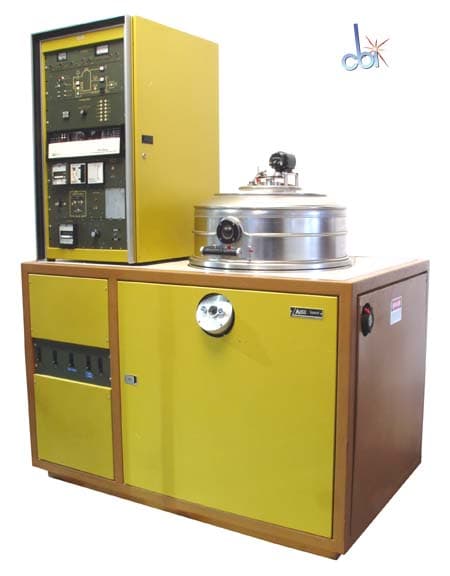

Airco Temescal VES 2550 E-Beam Deposition System

SKU: 80199

1 in stock
Airco Temescal VES 2550 E-Beam Deposition System
Working & Warranted
Used
Request Pricing

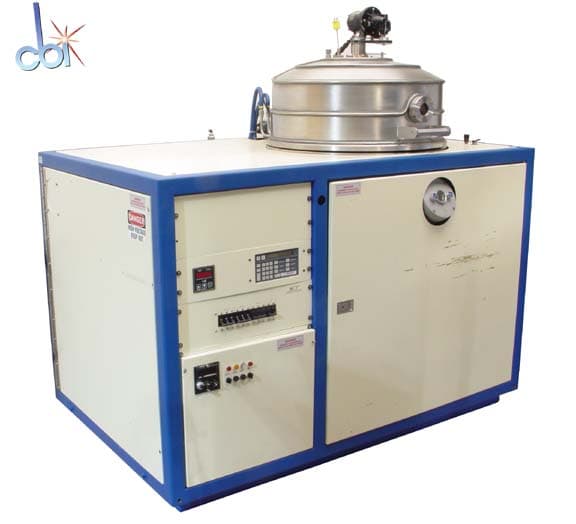

Temescal VES-2550 High Volume E Beam Evaporator

SKU: 40300

1 in stock
Temescal VES-2550 High Volume E Beam Evaporator
Working & Warranted
Used
Request Pricing

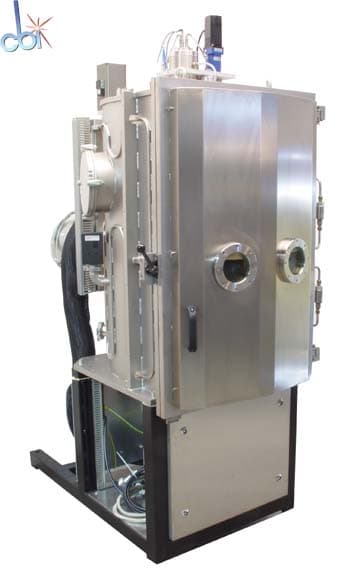

Leybold LAB 600EB E-Beam Evaporator with Ion Source
